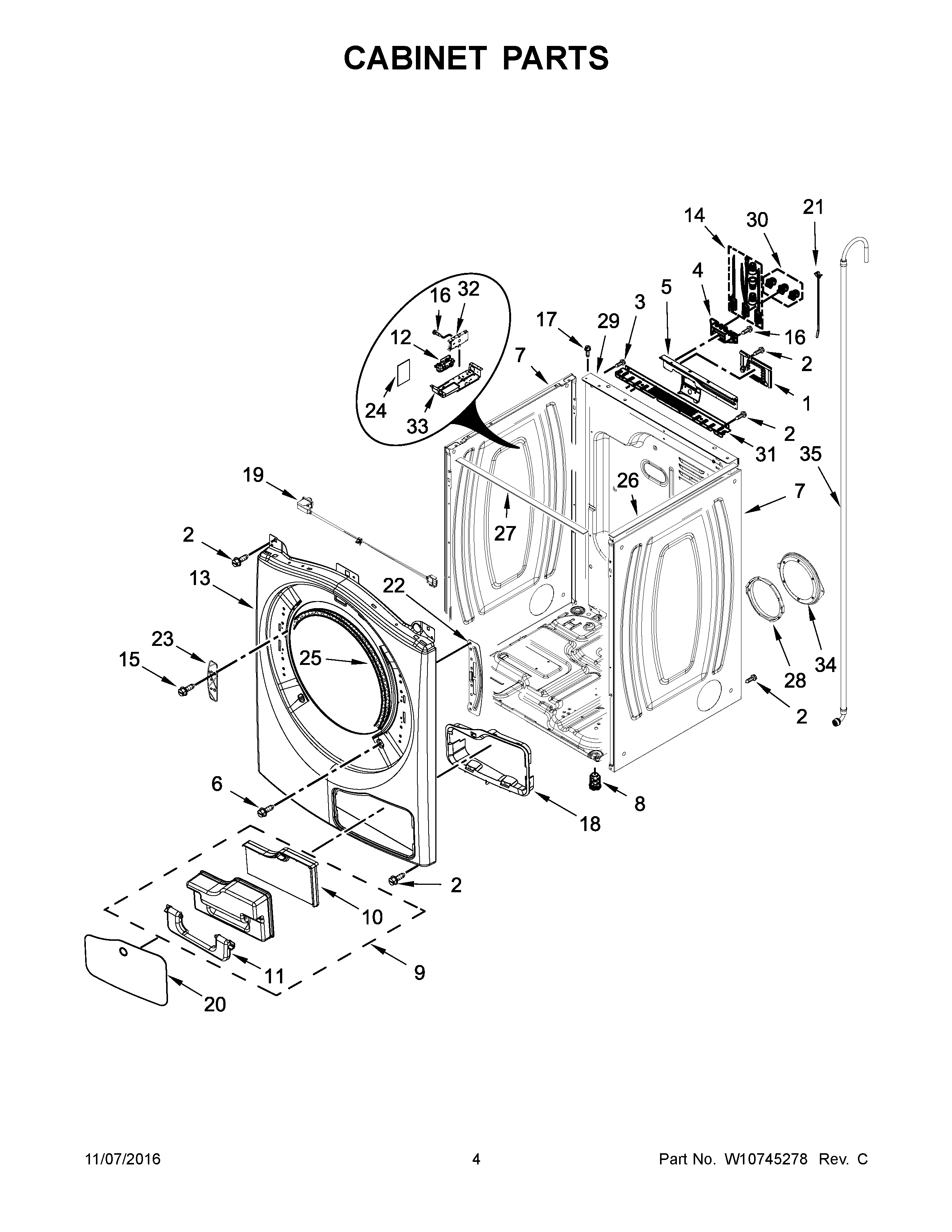

WED99HEDC0 03 – CABINET PARTS

Products

Position	Product
NI	FOOT, OPTIONAL (EXTENDED LENGTH) (NOT INCLUDED)
1	WPW10316167 Whirlpool Dishwasher Terminal Cover
2	WP489463 Whirlpool Refrigerator Screw
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	BRACKET, TERMINAL CROSS BAR
6	WP308685 Whirlpool Microwave Screw
7A	W11315726 Whirlpool Panel Assembly
7	W11233548 Whirlpool Panel
8	49621 Whirlpool Leveling Feet
9	W10897401 Whirlpool Housing
10	W11199484 Whirlpool Screen Assembly
11	ASSEMBLY, HANDLE - SECONDARY LINT
12	WPW10652285-includeCORE Whirlpool WPW10652285 Washer Electronic Control Board + Core
13A	W11103937 Whirlpool Panel
13	W10682653 Whirlpool Panel
14	279318 Whirlpool Terminal
15	SCREW
16	WP3390631 Whirlpool Screw
18A	W10739601 Whirlpool Control Bezel
18	W10739602 Whirlpool Control Bezel
19	WPW10350906 Whirlpool Door Switch
20A	DOOR, SECONDARY LINT (CHROME SHADOW)
20	W11168387 Whirlpool Cover
21	WP3391018 Whirlpool Wire Tie
22	BRACKET, DOOR HINGE
23	WPW10208250 Whirlpool Strike
24	W11409002 Whirlpool Pad
25	WP3387242 Whirlpool Seal
26	SEAL - STRIP
27	SEAL - STRIP
28	GASKET, FAN
29	PANEL, REAR
30	279393 Whirlpool Terminal Block Screw and Nut Kit
31	WPW10208382 Whirlpool Dryer Bracket
32	CONTROL BOARD
33	BRACKET, CONTROL
34	FAN GUARD ASSEMBLY
35	W11169712 Whirlpool Hose
