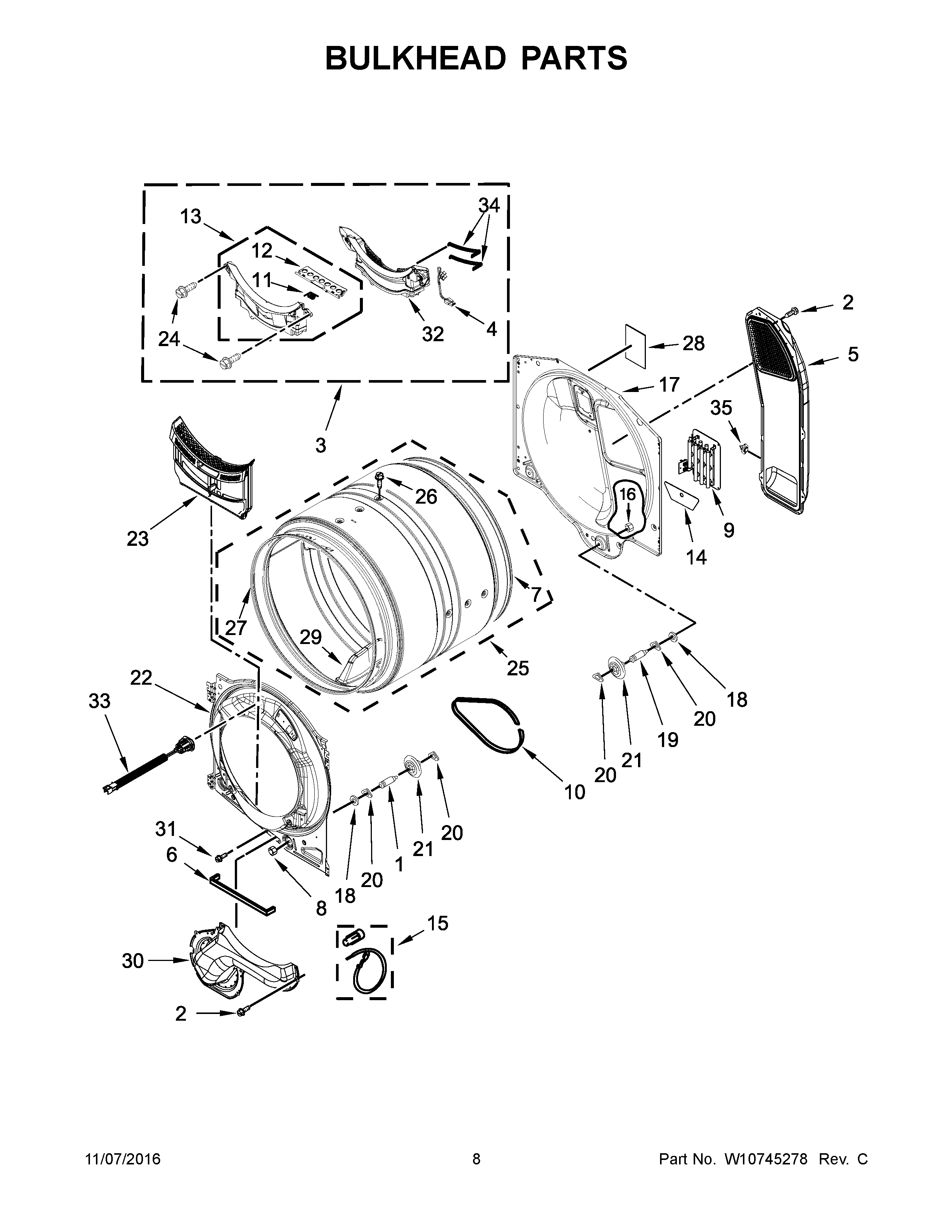

WED99HEDC0 05 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11211470 Whirlpool Out Housing
4	WPW10298258 Whirlpool Wire Harness
5	W10660495 Whirlpool HVAC Air Duct
6	W11676493 Whirlpool Seal Assembly
7	280114 Whirlpool Dryer Drum Seal
8	WPW10080210 Whirlpool Nut
9	W11678121 Whirlpool Dryer Heating Element
10	661570V Whirlpool Dryer Drum Belt
11	W10834437 Whirlpool Spring
12	W11156832 Whirlpool Air Grille
13	W10670373 Whirlpool Door Assembly
14	EDGE COVER, INLET DUCT
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	W10673491 Whirlpool Bulkhead Assembly
23	W11483547 Whirlpool Screen
24	WP3387230 Whirlpool Screw
25	W10541657 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	W11193479 Whirlpool Seal
28	W11409002 Whirlpool Pad
29	W10280771 Whirlpool Drum Baffle
30	W10642437 Whirlpool Duct Lint
31	WP3390631 Whirlpool Screw
32	W10684400 Whirlpool Out Grille
33	ASSEMBLY, DRUM LIGHT
34	WP3387223 Whirlpool Electrode Assembly
35	W11676807 Whirlpool Dryer Thermal Cutoff
