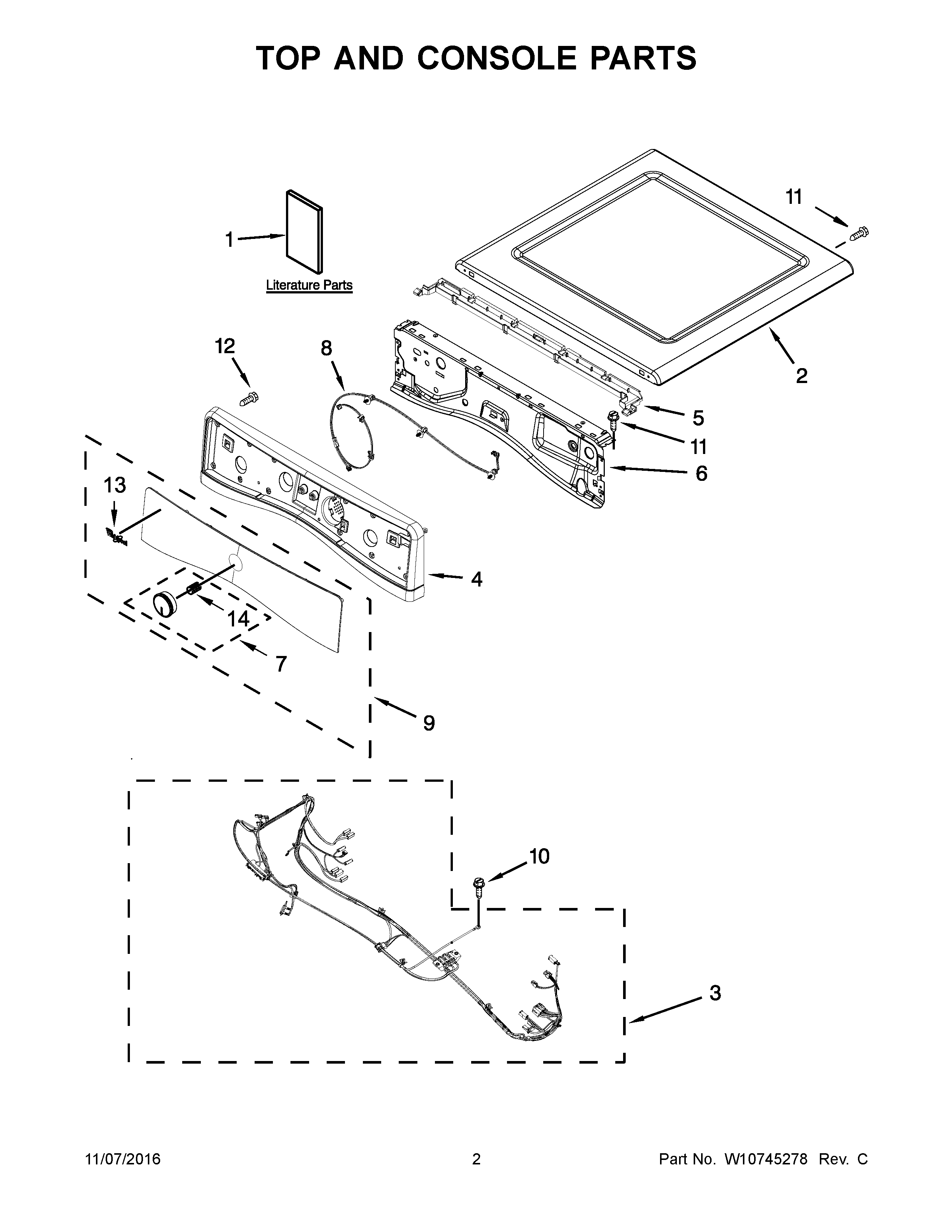

WED99HEDW0 02 – TOP AND CONSOLE PARTS

WED99HEDW0 02 – TOP AND CONSOLE PARTS

Written by

in

WED99HEDW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CQUICKSTART GUIDE
1BTECH SHEET
1AINSTALLATION INSTRUCTIONS
1OWNERS MANUAL
2WPW10208383 Whirlpool Top Panel
2AWPW10460919 Whirlpool Top
3W10635057 Whirlpool Wire Harness
4AWPW10463687 Whirlpool Console Assembly
4WPW10446407 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10875909 Whirlpool Timer Knob
7AWPW10631127 Whirlpool Knob
8W10837344 Whirlpool Wire Harness
9W10750363 Whirlpool Control Panel
9AUSER INTERFACE (CHROME SHADOW)
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10853898 Whirlpool Screw
13AW10510982 Whirlpool Nameplate
13BADGE (WHITE)
14WP8536939 Whirlpool Spring Clip
