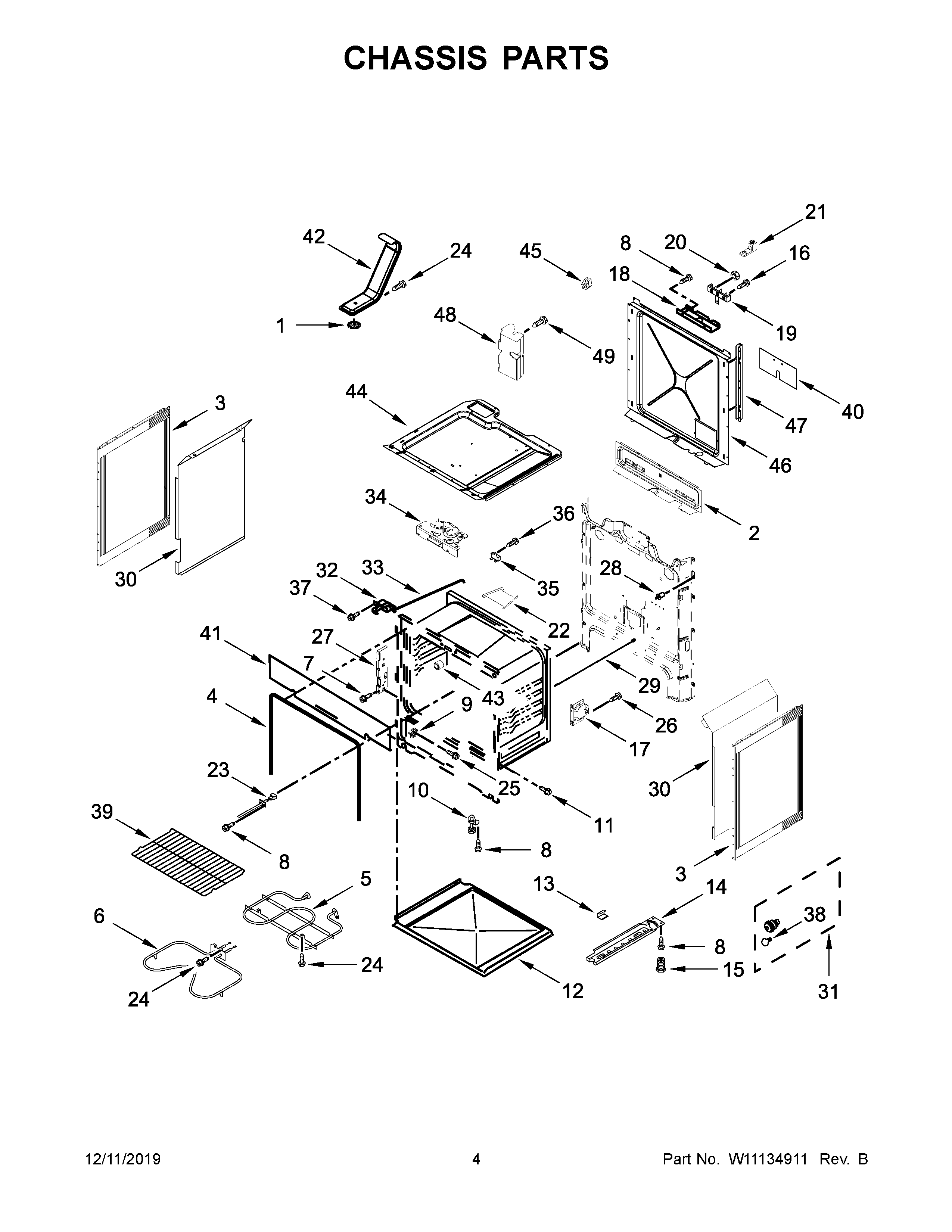

WEE510S0FB1 03 – CHASSIS PARTS

Products

PositionProduct
NIINSULATION, BACK
NICABINET (NOT A SERVICEABLE PART)
NIINSULATION, WRAP
1SCREEN, VENT
2W10162248 Whirlpool Wire Cover
3AWPW10575396 Whirlpool Side Panel
3W11730303 Whirlpool Side Panel
4W11542153 Whirlpool Door Gasket
5WPW10583047 Whirlpool Broil Element
6W11447783 Whirlpool Bake Element
7W10777162 Whirlpool Screw
8SCREW
9W10807823 Whirlpool Drawer Glide
10WPW10341186 Whirlpool Refrigerator Front Levelling Leg
11WPW10067840 Whirlpool Screw
12TRAY, INSULATION
13W10137382 Whirlpool Clip
14WPW10306546 Whirlpool Base Rail
15WPW10058460 Whirlpool Appliance Levelling Leg
16WP355214 Whirlpool Screw
17W10404688 Whirlpool Bracket Support
18W11728255 Whirlpool Service Bracket
19WPW10245259 Whirlpool Terminal Block
20WP3400029 Whirlpool Dishwasher Nut
21WPW10281322 Whirlpool Connector
22BAFFLE, UPPER CHASSIS
23SENSOR-RANGE
25Screw
26WP3196557 Whirlpool Screw
27W10647259 Whirlpool Hinge Receiver
28WP9757262 Whirlpool Light Switch
29W11370462 Whirlpool Door Rod
30W11379353 Whirlpool Retainer
30AW11379943 Whirlpool Retainer
31W11594027 Whirlpool Range Oven Light Socket
32WP9761013 Whirlpool Door Latch
33W10078370 Whirlpool Latch Rod
34WPW10107820 Whirlpool Door Latch
35WP3196548 Whirlpool Thermal Fuse
363196172 Whirlpool Oven Screw
37W11169708 Whirlpool Screw
38ABULB-LIGHT
38RANGE ONLY 40W 120V APPL BULB
39RACK-OVEN
40W10655441 Whirlpool Insulation Wire
41W11688573 Whirlpool Insulation
42W11122085 Whirlpool Vent Tube
43W10877054 Whirlpool Spacer Assembly
44W10814301 Whirlpool Burner Box
45CLIP-PANEL, RATCHETING
46W11379354 Whirlpool Rear Cover
47W10162241 Whirlpool Channel
48W11217187 Whirlpool Tip Anchor
49W11135756 Whirlpool Screw Torx
