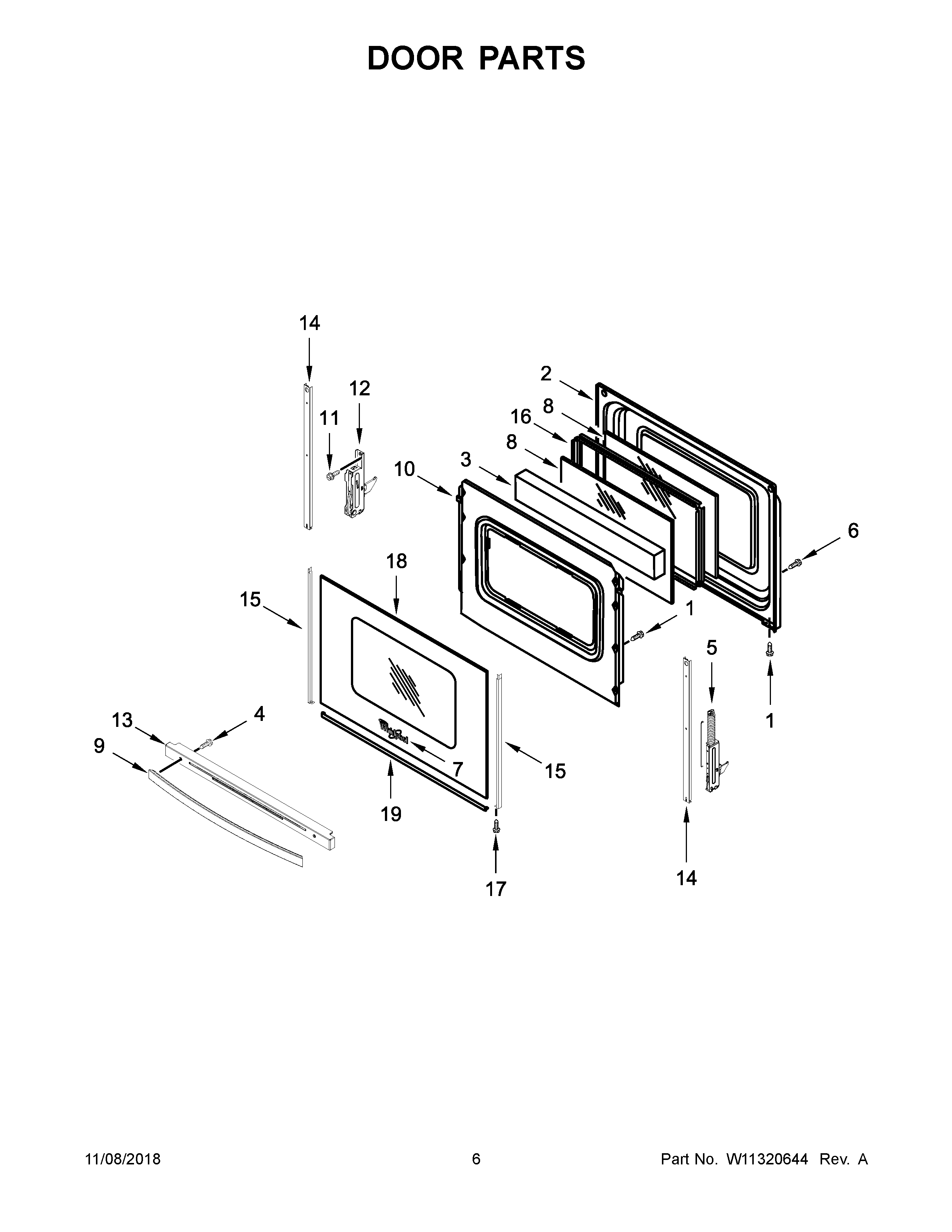

WEE510S0FB2 04 – DOOR PARTS

WEE510S0FB2 04 – DOOR PARTS

Written by

in

WEE510S0FB2 04 – DOOR PARTS

Products

PositionProduct
1WPW10031790 Whirlpool Screw
2WP9761344 Whirlpool Door Liner
3WPW10278991 Whirlpool Insulation
4WPW10465148 Whirlpool Screw
5WPW10388635 Whirlpool Door Hinge
6WPW10200660 Whirlpool Range Oven Door Handle Screw
7W11178521 Whirlpool Dishwasher Nameplate
8WP8053948 Whirlpool Door Glass
9AW10300489 Whirlpool Door Handle
9W10300490 Whirlpool Door Handle
10W11539580 Whirlpool Retainer
11W10777162 Whirlpool Screw
12WPW10440013 Whirlpool Door Hinge
13AW10817433 Whirlpool Vent Trim
13TRIM-VENT
14W11502236 Whirlpool Door Trim
15CWP8523166 Whirlpool Door Trim
15W10761018 Whirlpool Dishwasher Left Door Trim
15AW10761014 Whirlpool Right Door Trim
15BWP8523172 Whirlpool Left Door Trim
16WPW10316950 Whirlpool Window Frame
17WP355214 Whirlpool Screw
18W11702167 Whirlpool Door Glass
18AWPW10409945 Whirlpool Glass Door
19WP8523177 Whirlpool Door Trim Assembly
19AWP8523175 Whirlpool Door Trim Assembly
