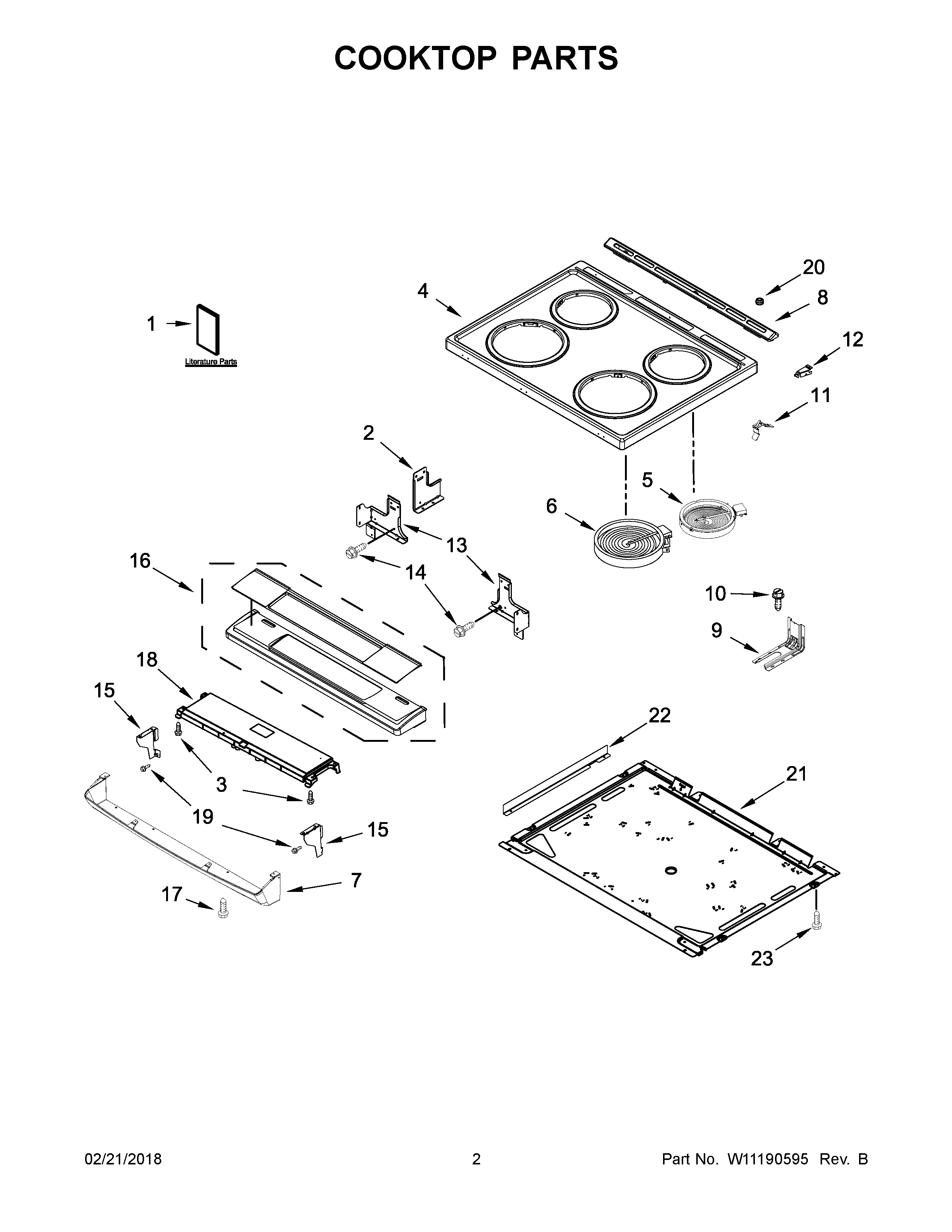

WEE510S0FV1 02 – COOKTOP PARTS

Products

Position	Product
NI	W10664316 Whirlpool Clip
NI	W10800463 Whirlpool Wire Harness
NI	W11172419 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	W11568999 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	16515 Whirlpool Clip
1A	USE AND CARE GUIDE
1B	TECH SHEET
1	INSTRUCTIONS, INSTALLATION
1C	WIRING DIAGRAM
2	W10814305 Whirlpool Bracket Support
3	W11245710 Whirlpool Refrigerator Screw
4	W11040044 Whirlpool Glass Maintop
5	ELMNT-SURF
6	W11517959 Whirlpool Electric Range Radiant Surface Element
7	W10894124 Whirlpool Control Panel
8	W11240519 Whirlpool Vent Trim
9	W11502257 Whirlpool Anchor Tip
10	SCREW, ANTI-TIP KIT
11	WPW10225448 Whirlpool Spring Assembly
12	W10162253 Whirlpool Mounting Bracket
12A	W10162252 Whirlpool Bracket Mounting
13A	SUPPORT, COOKTOP (LEFT)
13	W10814304 Whirlpool Support Bracket
14	WP3196557 Whirlpool Screw
15A	W10547961 Whirlpool Endcap Panel
15	W10547960 Whirlpool Endcap Panel
16	W10893944 Whirlpool Control Panel
17	W10516115 Whirlpool Screw
18	W10894098 Whirlpool Range Electronic Control Board + Core
19	SCREW
20	W11690600 Whirlpool Bumper
21	W10536275 Whirlpool Pan
22	W10613286 Whirlpool Bracket
23	W11244557 Whirlpool Screw
