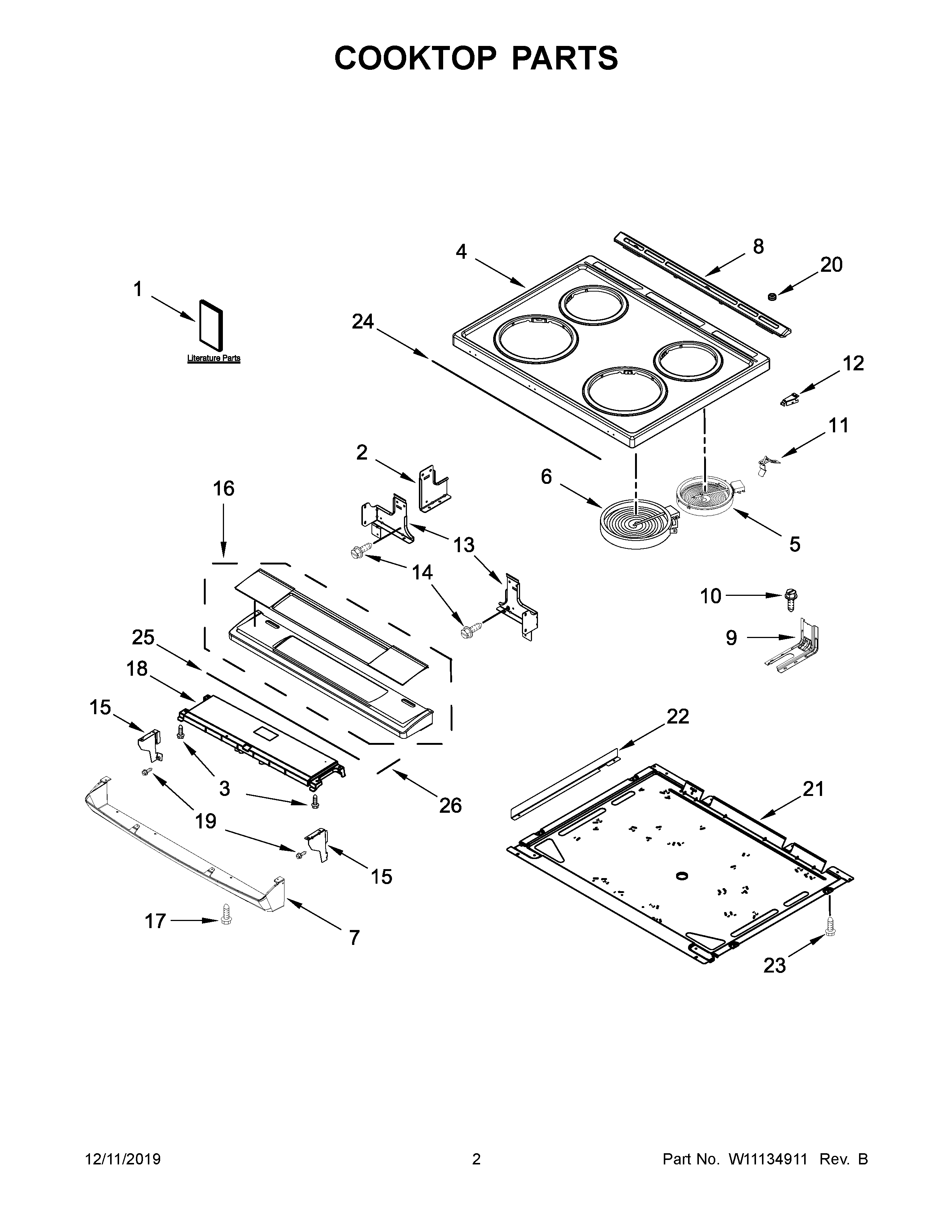

WEE510S0FW1 02 – COOKTOP PARTS

Products

Position	Product
NI	W10664316 Whirlpool Clip
NI	W11172419 Whirlpool Wire Harness
NI	W11171886 Whirlpool Wire Harness
NI	W11568999 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	16515 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
1C	WIRING DIAGRAM
1A	USE AND CARE GUIDE
1	INSTRUCTIONS, INSTALLATION
1B	TECH SHEET
2	W10814305 Whirlpool Bracket Support
3	W11245710 Whirlpool Refrigerator Screw
4A	W11043368 Whirlpool Cooktop
4	W11040044 Whirlpool Glass Maintop
5	ELMNT-SURF
6	W11517959 Whirlpool Electric Range Radiant Surface Element
7A	W10894127 Whirlpool Control Panel
7	W10894124 Whirlpool Control Panel
8A	W10636527 Whirlpool Vent Trim
8	W11240519 Whirlpool Vent Trim
9	W11502257 Whirlpool Anchor Tip
10	SCREW, ANTI-TIP KIT
11	WPW10225448 Whirlpool Spring Assembly
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13A	SUPPORT, COOKTOP (LEFT)
13	W10814304 Whirlpool Support Bracket
14	WP3196557 Whirlpool Screw
15	W10547960 Whirlpool Endcap Panel
15A	W10547961 Whirlpool Endcap Panel
16	W10893944 Whirlpool Control Panel
16B	W10893947 Whirlpool Control Panel
16A	W10893945 Whirlpool Control Panel
17	W10516115 Whirlpool Screw
18	W10894098 Whirlpool Range Electronic Control Board + Core
19	SCREW
20	W11690600 Whirlpool Bumper
21	W10536275 Whirlpool Pan
22	BRACKET, RADIANT
23	W11244557 Whirlpool Screw
24	W10802441 Whirlpool Gasket
25	W10802457 Whirlpool Gasket
26	W11744482 Whirlpool Gasket Assembly
