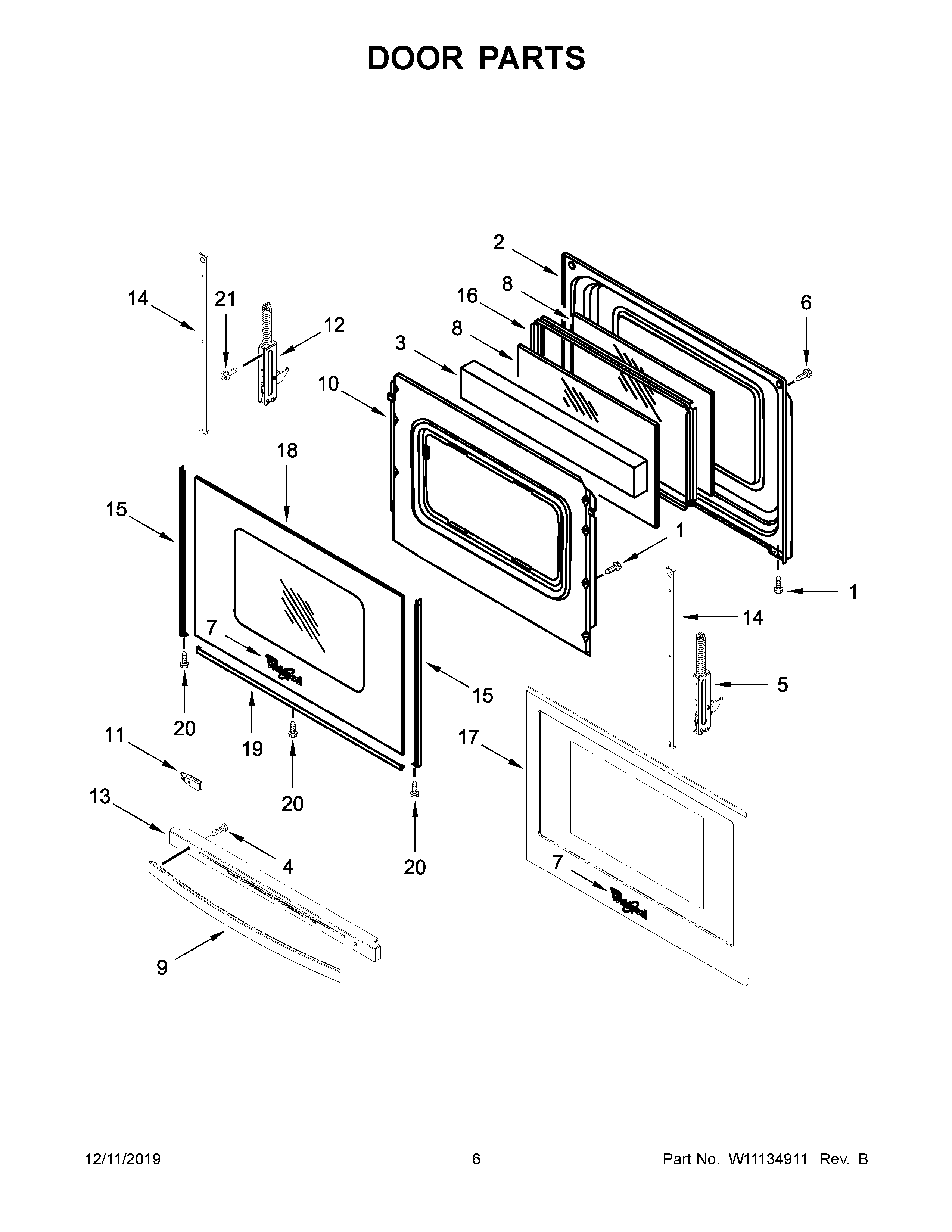

WEE510S0FW1 04 – DOOR PARTS

Products

Position	Product
1	WPW10031790 Whirlpool Screw
2	WP9761344 Whirlpool Door Liner
3	WPW10278991 Whirlpool Insulation
4	WPW10465148 Whirlpool Screw
5	WPW10388635 Whirlpool Door Hinge
6	WPW10200660 Whirlpool Range Oven Door Handle Screw
7A	W11178521 Whirlpool Dishwasher Nameplate
8	WP8053948 Whirlpool Door Glass
9	W10300490 Whirlpool Door Handle
9B	WPW10618239 Whirlpool Door Handle
9A	W10300489 Whirlpool Door Handle
10	W11539580 Whirlpool Retainer
11	WPW10410341 Whirlpool Spacer
12	WPW10440013 Whirlpool Door Hinge
13A	W10817433 Whirlpool Vent Trim
13	TRIM-VENT
14	W11502236 Whirlpool Door Trim
15C	WP8523166 Whirlpool Door Trim
15	W10761018 Whirlpool Dishwasher Left Door Trim
15A	W10761014 Whirlpool Right Door Trim
15B	WP8523172 Whirlpool Left Door Trim
16	WPW10316950 Whirlpool Window Frame
17	W11219379 Whirlpool Door Glass Assembly
18A	WPW10409945 Whirlpool Glass Door
18	W11702167 Whirlpool Door Glass
19A	WP8523175 Whirlpool Door Trim Assembly
19	WP8523177 Whirlpool Door Trim Assembly
20	WP355214 Whirlpool Screw
21	W10777162 Whirlpool Screw
