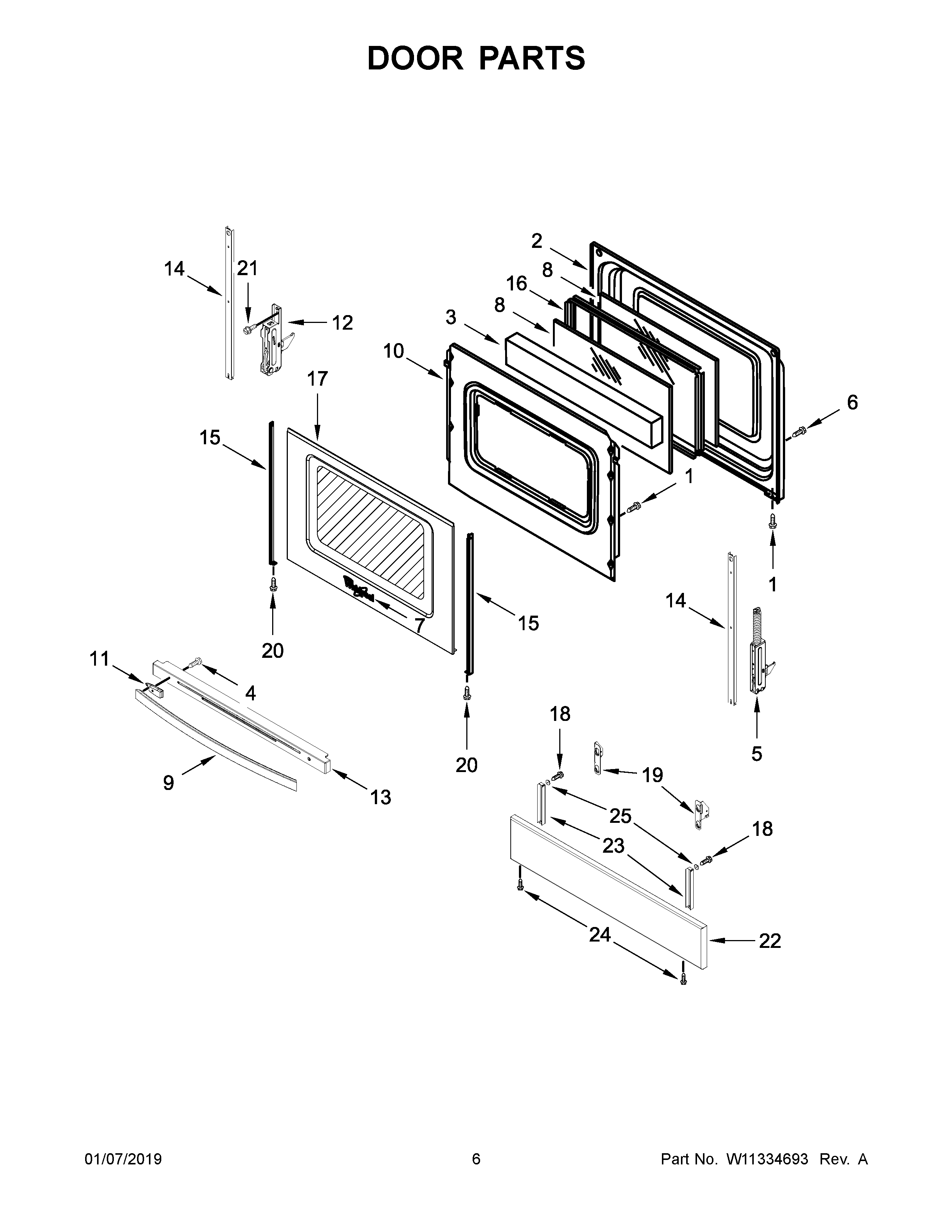

WEE510SAGS1 04 – DOOR PARTS

Products

Position	Product
1	WPW10031790 Whirlpool Screw
2	WP9761344 Whirlpool Door Liner
3	WPW10278991 Whirlpool Insulation
4	W10896982 Whirlpool Compactor Screw
5	WPW10388635 Whirlpool Door Hinge
6	WPW10200660 Whirlpool Range Oven Door Handle Screw
7	W11178521 Whirlpool Dishwasher Nameplate
8	WP8053948 Whirlpool Door Glass
9	WPW10618239 Whirlpool Door Handle
10	W11539580 Whirlpool Retainer
11	WPW10410341 Whirlpool Spacer
12	WPW10440013 Whirlpool Door Hinge
13	TRIM-VENT
14	W11502236 Whirlpool Door Trim
15	W10761018 Whirlpool Dishwasher Left Door Trim
15A	W10761014 Whirlpool Right Door Trim
16	WPW10316950 Whirlpool Window Frame
17	W11219379 Whirlpool Door Glass Assembly
18	SCREW
19A	W11096902 Whirlpool Service Bracket
19	W11096901 Whirlpool Service Bracket
20	WP355214 Whirlpool Screw
21	W10777162 Whirlpool Screw
22	W11200111 Whirlpool Cover Plate
23	BRACKET, TOE PANEL
24	WP3196557 Whirlpool Screw
25	SPACER, SIDE PANEL
