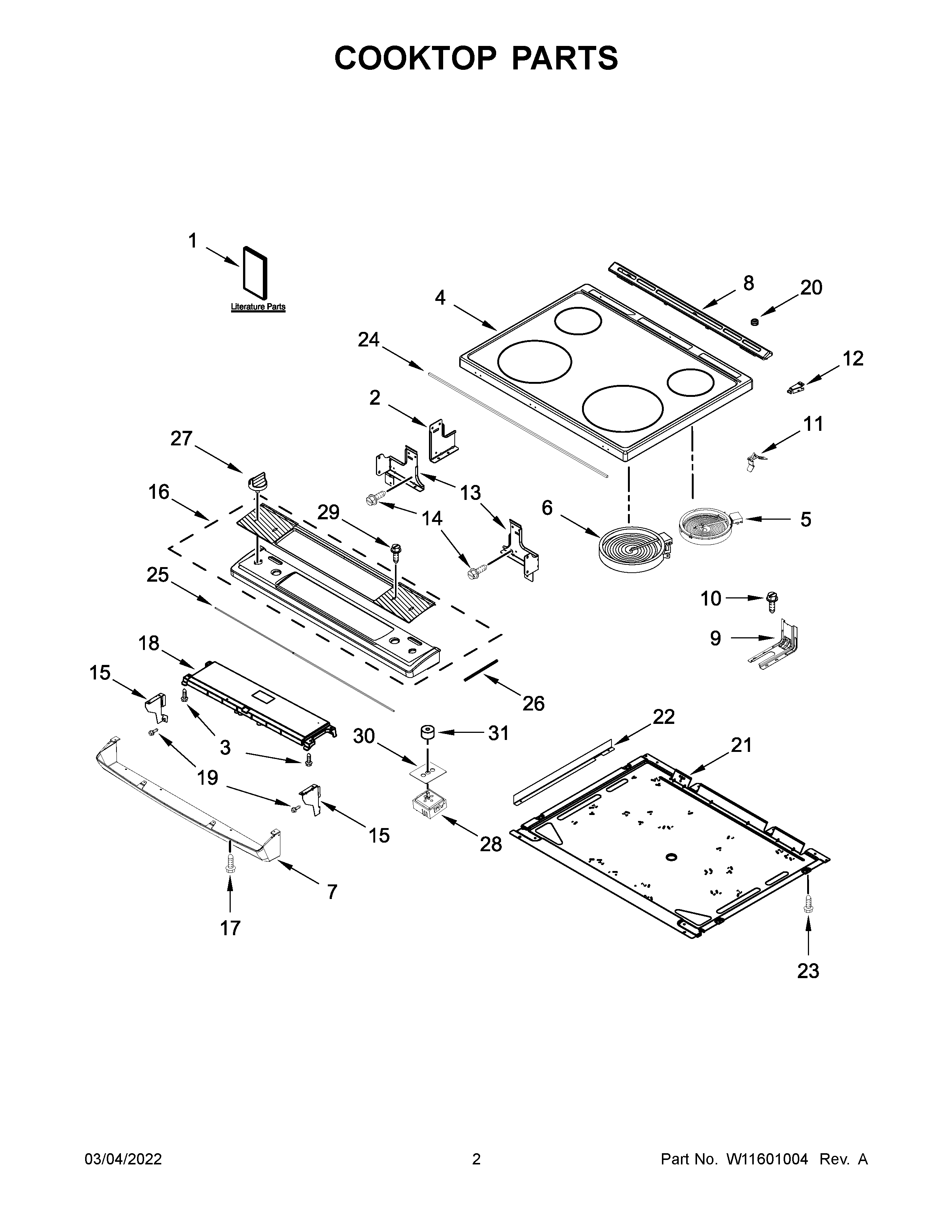

WEE515S0LB2 02 – COOKTOP PARTS

Products

Position	Product
NI	W10664316 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11453734 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	CLAMP, WIRE
NI	W11171886 Whirlpool Wire Harness
NI	W11314385 Whirlpool Wire Harness
1B	TECH SHEET
1A	QUICK START GUIDE
1	OWNERS MANUAL
2	W10814305 Whirlpool Bracket Support
3	W11245710 Whirlpool Refrigerator Screw
4A	COOKTOP (WHITE)
4	W11541089 Whirlpool Cooktop
5	ELMNT-SURF
6	W11517959 Whirlpool Electric Range Radiant Surface Element
7	W10894124 Whirlpool Control Panel
7A	W10894127 Whirlpool Control Panel
8	W11240519 Whirlpool Vent Trim
8A	W10636527 Whirlpool Vent Trim
9	W11502257 Whirlpool Anchor Tip
10	SCREW, ANTI-TIP KIT
11	WPW10225448 Whirlpool Spring Assembly
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13	W10814304 Whirlpool Support Bracket
13A	SUPPORT, COOKTOP (LEFT)
14	WP3196557 Whirlpool Screw
15A	W10547961 Whirlpool Endcap Panel
15	W10547960 Whirlpool Endcap Panel
16	ASSEMBLY, CONSOLE (BLACK)
16A	W11542193 Whirlpool Control Panel
17	W10516115 Whirlpool Screw
18	CNTRL-ELEC + CORE
19	SCREW
20	W11690600 Whirlpool Bumper
21	W10536275 Whirlpool Pan
22	BRACKET, RADIANT
23	W11244557 Whirlpool Screw
24	W10802441 Whirlpool Gasket
25	W10802457 Whirlpool Gasket
26	W11744482 Whirlpool Gasket Assembly
27A	KNOB
27	W11715915 Whirlpool Knob
28A	W10911303 Whirlpool Infinite Switch
28	SWITCH-INF
29	W10674068 Whirlpool Screw
30	GASKET, SWITCH
31	W10702912 Whirlpool Switch Gasket
