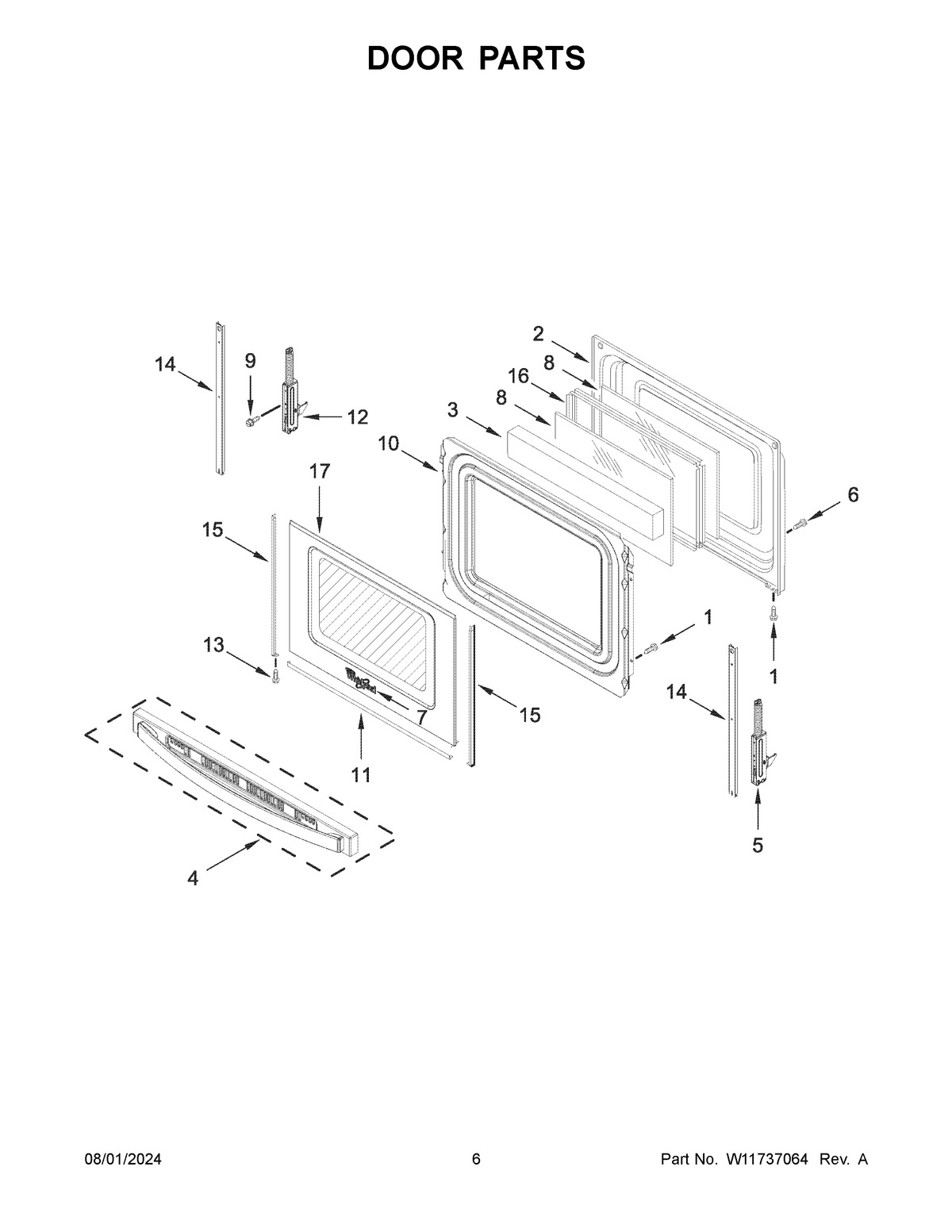

WEE515S0LW3 04 – DOOR PARTS

Products

PositionProduct
1WPW10031790 Whirlpool Screw
2WP9761344 Whirlpool Door Liner
3WPW10278991 Whirlpool Insulation
4AW11590861 Whirlpool Door Handle
4W11553213 Whirlpool Door Handle
5WPW10388635 Whirlpool Door Hinge
6WPW10200660 Whirlpool Range Oven Door Handle Screw
7W11178521 Whirlpool Dishwasher Nameplate
8WP8053948 Whirlpool Door Glass
9W10777162 Whirlpool Screw
10W11539580 Whirlpool Retainer
11AW11594186 Whirlpool Door Trim
11W11569689 Whirlpool Door Trim
12WPW10440013 Whirlpool Door Hinge
13WP355214 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15CWP8523166 Whirlpool Door Trim
15W10761018 Whirlpool Dishwasher Left Door Trim
15AW10761014 Whirlpool Right Door Trim
15BWP8523172 Whirlpool Left Door Trim
16WPW10316950 Whirlpool Window Frame
17W11702167 Whirlpool Door Glass
17AWPW10409945 Whirlpool Glass Door
