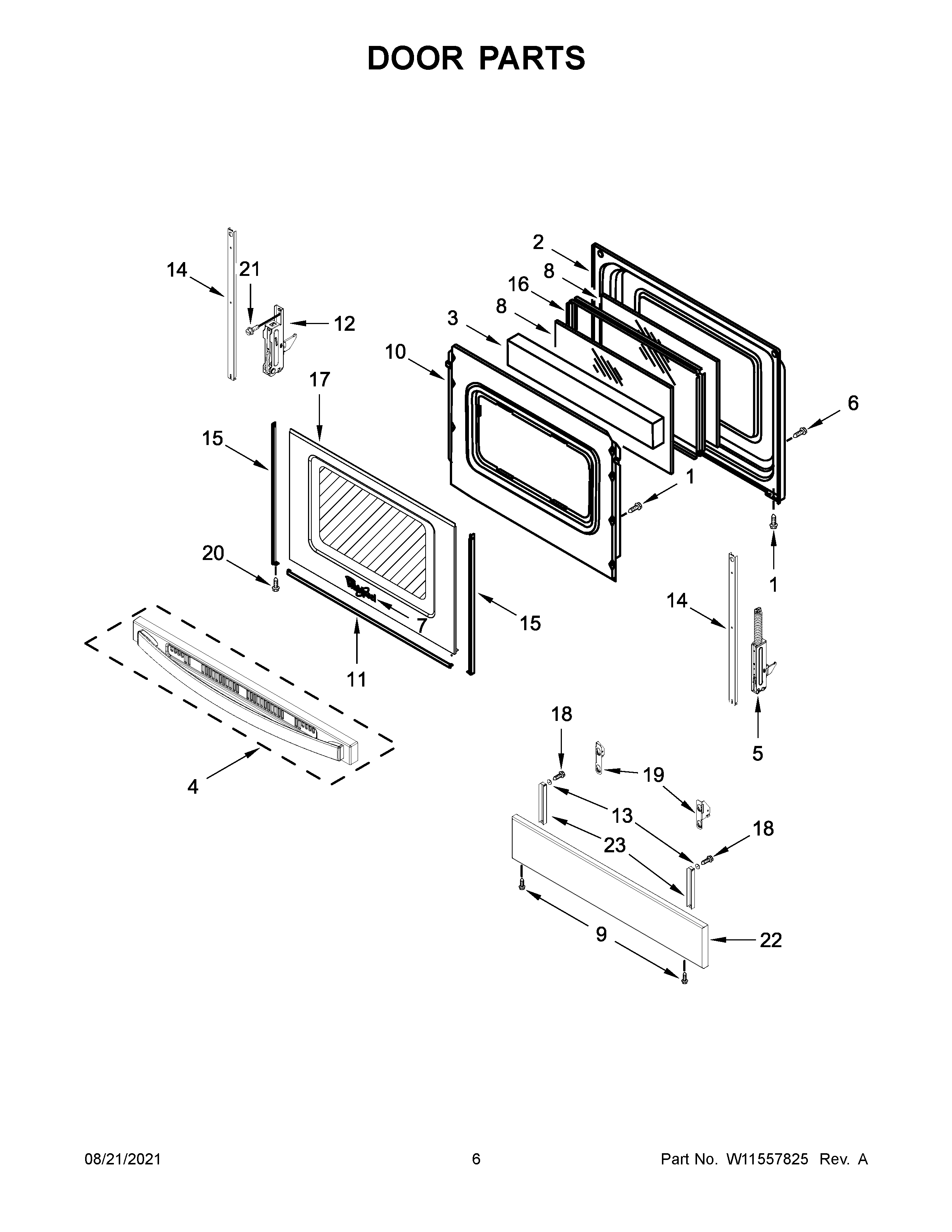

WEE515SALB0 04 – DOOR PARTS

Products

Position	Product
1	WPW10031790 Whirlpool Screw
2	WP9761344 Whirlpool Door Liner
3	WPW10278991 Whirlpool Insulation
4A	W11590861 Whirlpool Door Handle
4	W11553213 Whirlpool Door Handle
5	WPW10388635 Whirlpool Door Hinge
6	WPW10200660 Whirlpool Range Oven Door Handle Screw
7	W11178521 Whirlpool Dishwasher Nameplate
8	WP8053948 Whirlpool Door Glass
9	WP3196557 Whirlpool Screw
10	W11539580 Whirlpool Retainer
11	WP8523177 Whirlpool Door Trim Assembly
11A	WP8523175 Whirlpool Door Trim Assembly
12	WPW10440013 Whirlpool Door Hinge
13	SPACER, SIDE PANEL
14	W11502236 Whirlpool Door Trim
15C	WP8523166 Whirlpool Door Trim
15	W10761018 Whirlpool Dishwasher Left Door Trim
15A	W10761014 Whirlpool Right Door Trim
15B	WP8523172 Whirlpool Left Door Trim
16	WPW10316950 Whirlpool Window Frame
17	W11702167 Whirlpool Door Glass
17A	WPW10409945 Whirlpool Glass Door
18	SCREW
19A	W11096902 Whirlpool Service Bracket
19	W11096901 Whirlpool Service Bracket
20	WP355214 Whirlpool Screw
21	W10777162 Whirlpool Screw
22	W11200105 Whirlpool Refrigerator Cover Plate
22A	W11200109 Whirlpool Cover Plate
23	BRACKET, TOE PANEL
