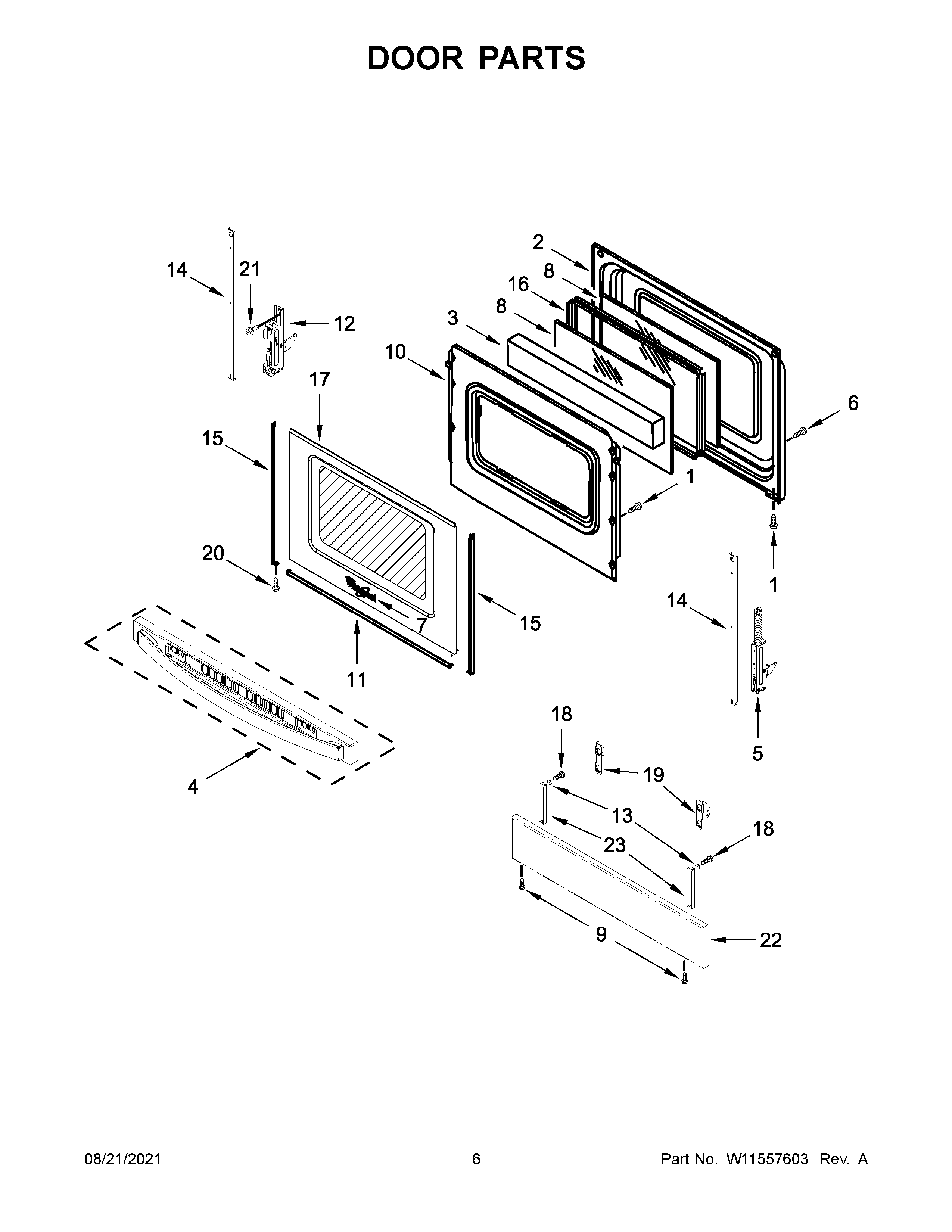

WEE515SALS0 04 – DOOR PARTS

WEE515SALS0 04 – DOOR PARTS

Written by

in

WEE515SALS0 04 – DOOR PARTS

Products

PositionProduct
1WPW10031790 Whirlpool Screw
2WP9761344 Whirlpool Door Liner
3WPW10278991 Whirlpool Insulation
4W11449263 Whirlpool Door Handle
5WPW10388635 Whirlpool Door Hinge
6WPW10200660 Whirlpool Range Oven Door Handle Screw
7W11178521 Whirlpool Dishwasher Nameplate
8WP8053948 Whirlpool Door Glass
9WP3196557 Whirlpool Screw
10W11539580 Whirlpool Retainer
11WP8523177 Whirlpool Door Trim Assembly
12WPW10440013 Whirlpool Door Hinge
13SPACER, SIDE PANEL
14W11502236 Whirlpool Door Trim
15W10761018 Whirlpool Dishwasher Left Door Trim
15AW10761014 Whirlpool Right Door Trim
16WPW10316950 Whirlpool Window Frame
17W11702167 Whirlpool Door Glass
18SCREW
19AW11096902 Whirlpool Service Bracket
19W11096901 Whirlpool Service Bracket
20WP355214 Whirlpool Screw
21W10777162 Whirlpool Screw
22W11200111 Whirlpool Cover Plate
23BRACKET, TOE PANEL
