WEE730H0DB0 02 – COOKTOP PARTS
Written by
in

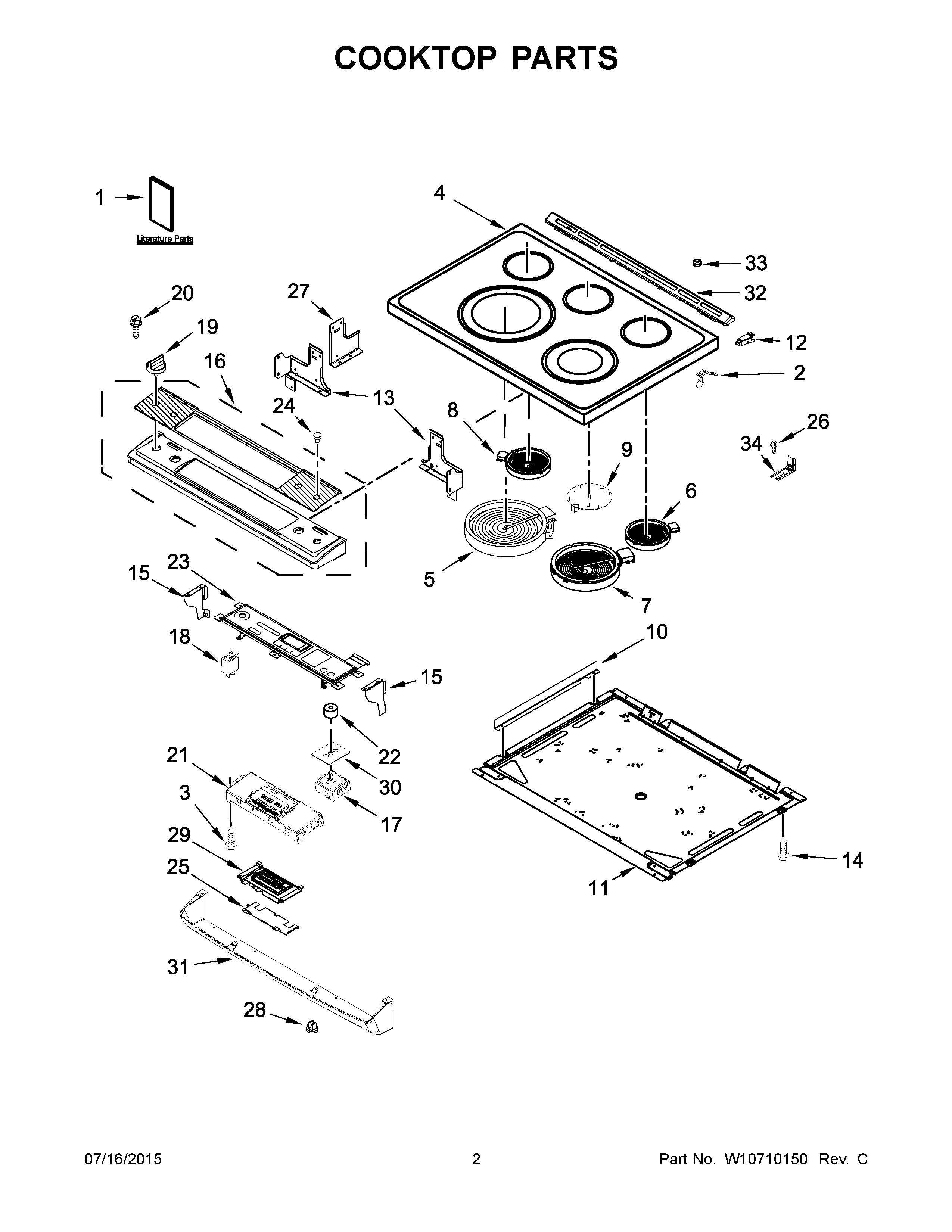

WEE730H0DB0 02 – COOKTOP PARTS
Products
Position
Product
NI
W11025616 Whirlpool Wire Harness
NI
W11226772 Whirlpool Wire Harness
NI
W10580280 Whirlpool Wire Harness
NI
WPL W10580295
NI
W10664316 Whirlpool Clip
NI
W10580293 Whirlpool Wire Harness
NI
CABINET (NOT A SERVICEABLE PART)
1D
QUICK START GUIDE
1E
QUICK START GUIDE (FRENCH)
1
INSTRUCTIONS, INSTALLATION
1C
SAFER COOKING TIPS (ENGLISH
1A
USE AND CARE GUIDE
1F
WIRING, DIAGRAM
1B
SHEET, TECH
2
WPW10225448 Whirlpool Spring Assembly
3
SCREW
4A
W10717749 Whirlpool Cooktop
4
W10717748 Whirlpool Cooktop
5
ELMNT-SURF
6
ELMNT-SURF
7
W11047722 Whirlpool Radiant Surface Element
8
WPW10270604 Whirlpool Surface Element
9
W11047668 Whirlpool Surface Element
10
W10613286 Whirlpool Bracket
11
W10536275 Whirlpool Pan
12
W10162253 Whirlpool Mounting Bracket
12A
W10162252 Whirlpool Bracket Mounting
13A
W10289170 Whirlpool Support Bracket
13
W10289169 Whirlpool Bracket Support
14
W11244557 Whirlpool Screw
15A
W10547961 Whirlpool Endcap Panel
15
W10547960 Whirlpool Endcap Panel
16
CONSOLE, ASSEMBLY (WHITE)
16A
W10728515 Whirlpool Control Panel
16B
W10728516 Whirlpool Stainless Control Panel
17A
W10911303 Whirlpool Infinite Switch
17
SWITCH-INF
17C
WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
17B
W11162115 Whirlpool Infinite Switch
18
WP8523265 Whirlpool Indicator Light
19B
W10828837 Whirlpool Knob
19
W11677626 Whirlpool Knob
19A
W11568623 Whirlpool Knob
20
WP3400882 Whirlpool Screw
21
W11050557-includeCORE Whirlpool W11050557 Washer Electronic Control Board + Core
22
W10702912 Whirlpool Switch Gasket
23A
W10728532 Whirlpool Dishwasher Membrane Switch
23B
W10728531 Whirlpool Membrane Switch
23
W10728524 Whirlpool Membrane Switch
24
WP3196068 Whirlpool Light Lens
25
W10558372 Whirlpool Bracket Mounting
26
SCREW, ANTI-TIP KIT
27
W10598048 Whirlpool Support Bracket
28
W11025100 Whirlpool Insert
29
WPW10603098 Whirlpool Stove Electronic Control Board + Core
30
GASKET, SWITCH
31B
WPL W10581493
31
WPL W10570528
31A
W11218703 Whirlpool Mounting Bracket
32A
W11240519 Whirlpool Vent Trim
32
W10636527 Whirlpool Vent Trim
33
W11104127 Whirlpool Bumper Assembly
34
W11502257 Whirlpool Anchor Tip
←
