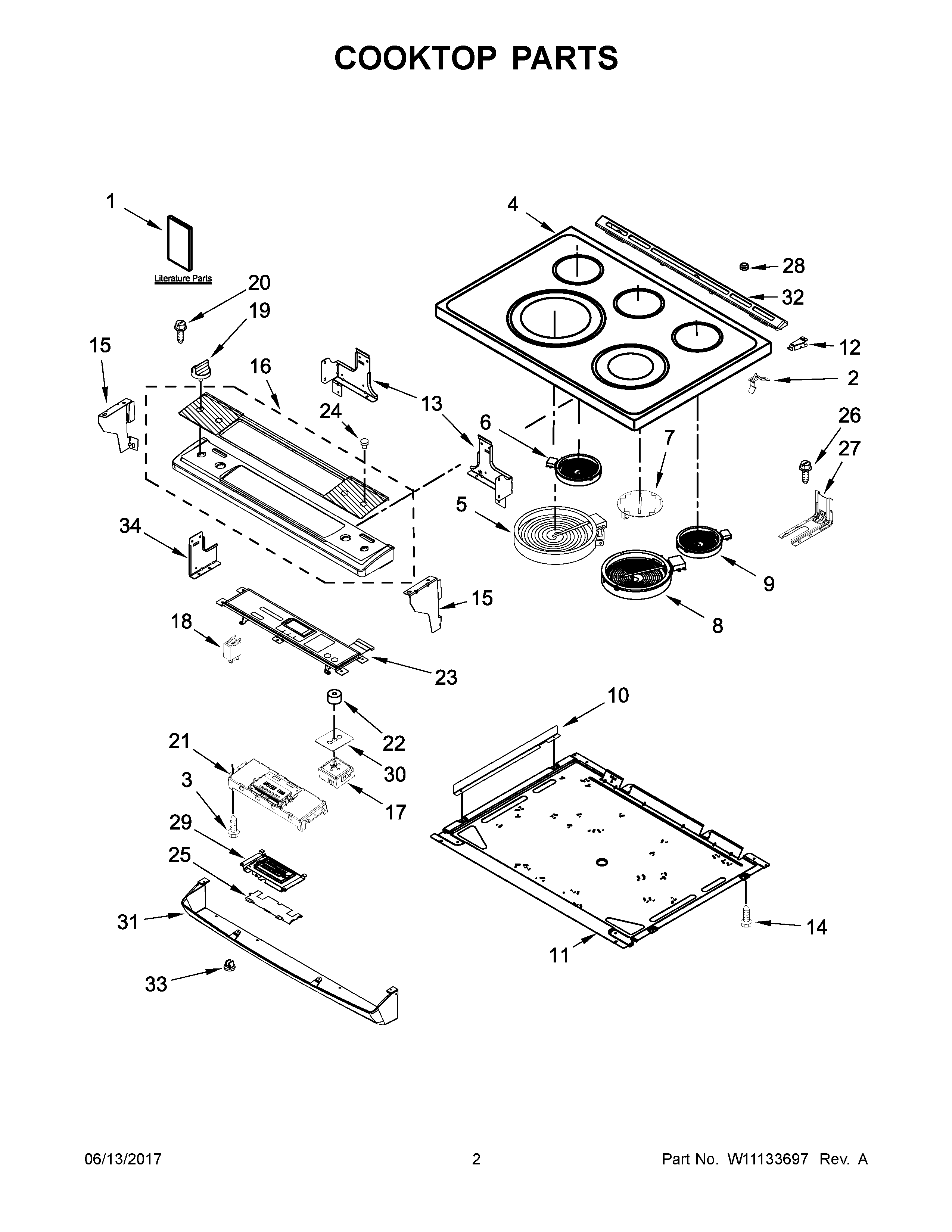

WEE745H0FE1 02 – COOKTOP PARTS

WEE745H0FE1 02 – COOKTOP PARTS

Products

PositionProduct
NIW10664316 Whirlpool Clip
NIW11226786 Whirlpool Wire Harness
NIW10580296 Whirlpool Main Harness
NIW11226772 Whirlpool Wire Harness
NIW11025616 Whirlpool Wire Harness
NIW10580303 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NICABINET (NOT A SERVICEABLE PART)
1BSHEET, TECH
1CSAFER COOKING TIPS (ENGLISH
1DSafer Cooking Tips (French)
1EQUICK START GUIDE
1INSTRUCTIONS, INSTALLATION
1AGUIDE, USE AND CARE
1GDIAGRAM, WIRING
1FQUICK START GUIDE (FRENCH)
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4AW10884392 Whirlpool Cooktop Assembly
4W10884395 Whirlpool Cooktop
5W11563195 Whirlpool Surface Element
6WPW10342780 Whirlpool Surface Element
7W11041453 Whirlpool Surface Element
8W11517959 Whirlpool Electric Range Radiant Surface Element
9ELMNT-SURF
10W10613286 Whirlpool Bracket
11W10536275 Whirlpool Pan
12AW10162252 Whirlpool Bracket Mounting
12W10162253 Whirlpool Mounting Bracket
13W10289170 Whirlpool Support Bracket
13AW10289169 Whirlpool Bracket Support
14W11244557 Whirlpool Screw
15AW10547961 Whirlpool Endcap Panel
15W10547960 Whirlpool Endcap Panel
16BW10884503 Whirlpool Control Panel
16W10884502 Whirlpool Control Panel
16AW10884501 Whirlpool Control Panel
17BW10911303 Whirlpool Infinite Switch
17ASWITCH-INF
17CW10917724 Whirlpool Infinite Switch
17W11129442 Whirlpool Surface Infinite Element Switch
18WP8523265 Whirlpool Indicator Light
19W11517331 Whirlpool Knob
20WP3400882 Whirlpool Screw
21W10884488 Whirlpool Electronic Control Board
22W10702912 Whirlpool Switch Gasket
23W10728532 Whirlpool Dishwasher Membrane Switch
23AW10728530 Whirlpool Membrane Switch
23BW10728531 Whirlpool Membrane Switch
24WP3196068 Whirlpool Light Lens
25W10558372 Whirlpool Bracket Mounting
26SCREW, ANTI-TIP KIT
27W11502257 Whirlpool Anchor Tip
28W11104127 Whirlpool Bumper Assembly
29W11122852 Whirlpool Electronic Control Board + Core
30GASKET, SWITCH
31AWPL W10570528
31W11218703 Whirlpool Mounting Bracket
32W11240519 Whirlpool Vent Trim
32AW10636527 Whirlpool Vent Trim
33W11025100 Whirlpool Insert
34W10598048 Whirlpool Support Bracket
