WEE745H0FE2 02 – COOKTOP PARTS

WEE745H0FE2 02 – COOKTOP PARTS

Written by

in

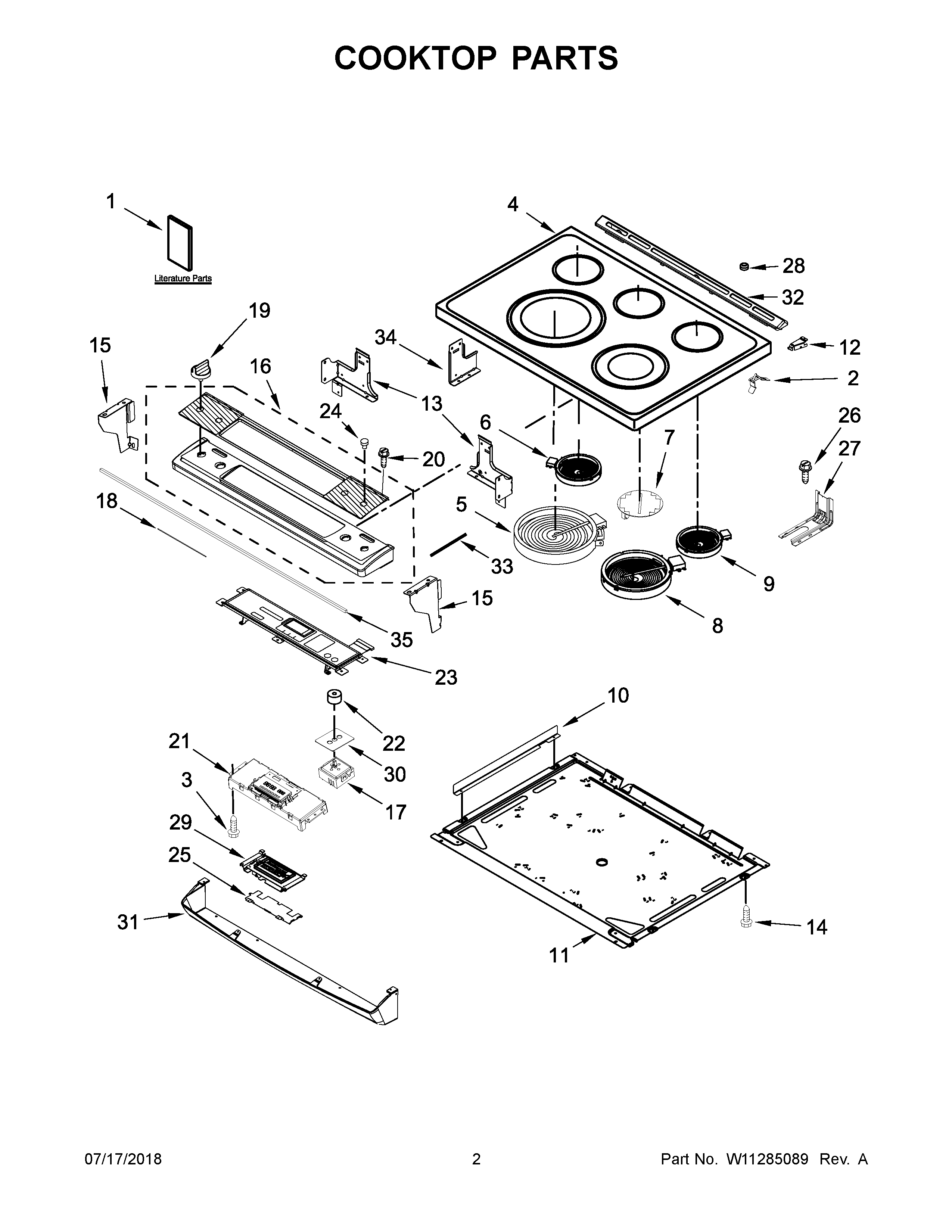

WEE745H0FE2 02 – COOKTOP PARTS

Products

Position	Product
NI	W11025616 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	W11134659 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	W10664316 Whirlpool Clip
NI	W11226772 Whirlpool Wire Harness
NI	W11226773 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11226786 Whirlpool Wire Harness
1D	QUICK START GUIDE (FRENCH)
1B	SHEET, TECH
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE AND CARE
1E	DIAGRAM, WIRING
1C	QUICK START GUIDE
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W10884395 Whirlpool Cooktop
4A	W10884392 Whirlpool Cooktop Assembly
5	W11563195 Whirlpool Surface Element
6	WPW10342780 Whirlpool Surface Element
7	W11041453 Whirlpool Surface Element
8	W11517959 Whirlpool Electric Range Radiant Surface Element
9	ELMNT-SURF
10	W10613286 Whirlpool Bracket
11	W10536275 Whirlpool Pan
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13	W10289170 Whirlpool Support Bracket
13A	W10289169 Whirlpool Bracket Support
14	W11244557 Whirlpool Screw
15A	W10547961 Whirlpool Endcap Panel
15	W10547960 Whirlpool Endcap Panel
16A	W10884501 Whirlpool Control Panel
16	W10884502 Whirlpool Control Panel
17B	W10911303 Whirlpool Infinite Switch
17C	W10917724 Whirlpool Infinite Switch
17	W11129442 Whirlpool Surface Infinite Element Switch
17A	SWITCH-INF
18	W10802457 Whirlpool Gasket
19	W11517331 Whirlpool Knob
20	WP3400882 Whirlpool Screw
21	W10884488 Whirlpool Electronic Control Board
22	W10702912 Whirlpool Switch Gasket
23A	W10728530 Whirlpool Membrane Switch
23	W10728531 Whirlpool Membrane Switch
24	WP3196068 Whirlpool Light Lens
25	W10558372 Whirlpool Bracket Mounting
26	SCREW, ANTI-TIP KIT
27	W11502257 Whirlpool Anchor Tip
28	W11104127 Whirlpool Bumper Assembly
29	W11122852 Whirlpool Electronic Control Board + Core
30	GASKET, SWITCH
31A	WPL W10570528
31	W11218703 Whirlpool Mounting Bracket
32	W11240519 Whirlpool Vent Trim
32A	W10636527 Whirlpool Vent Trim
33	W11744482 Whirlpool Gasket Assembly
34	W10598048 Whirlpool Support Bracket
35	W10802441 Whirlpool Gasket
