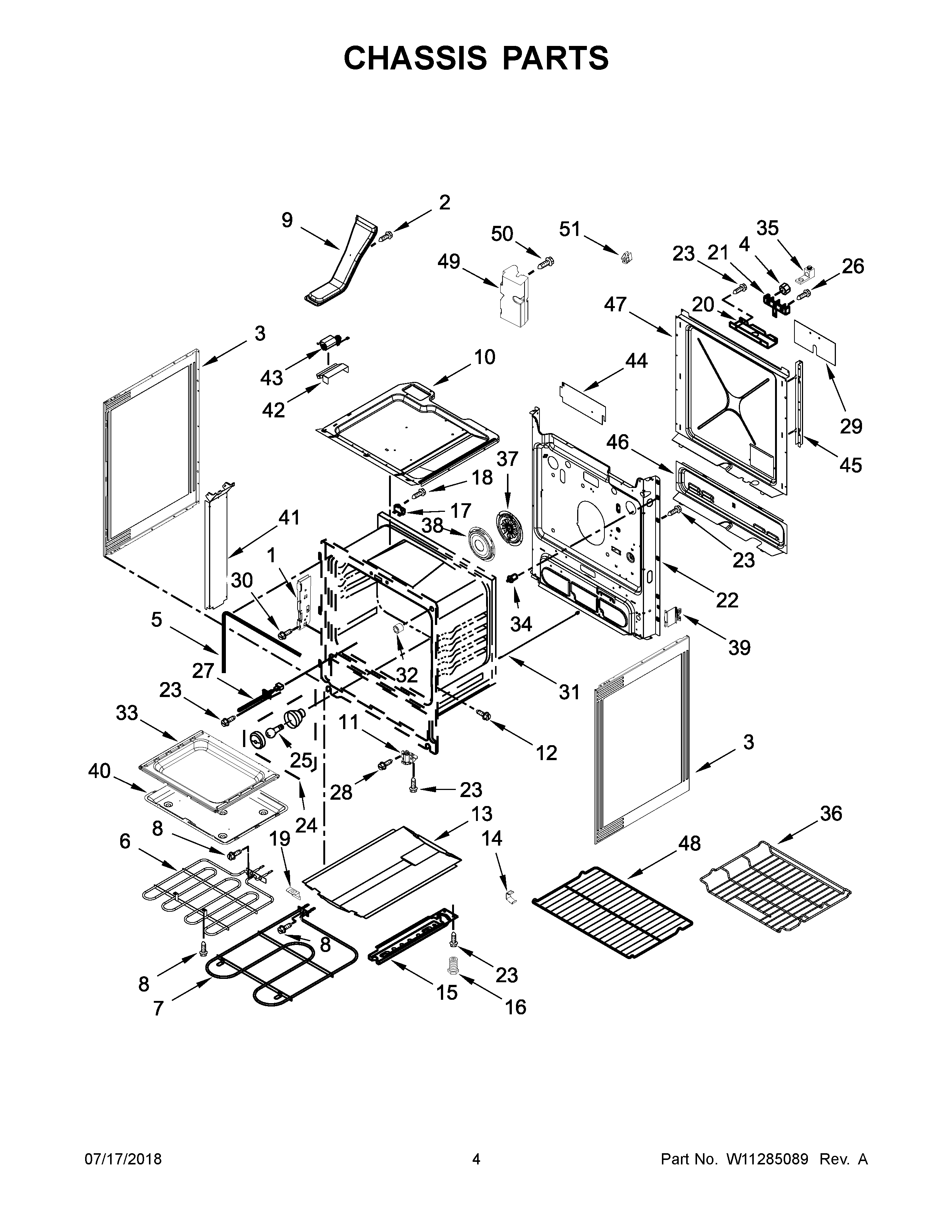

WEE745H0FE2 03 – CHASSIS PARTS

WEE745H0FE2 03 – CHASSIS PARTS

Written by

in

WEE745H0FE2 03 – CHASSIS PARTS

Products

PositionProduct
NIW11688567 Whirlpool Insulation Assembly
NIW11688730 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIW11688363 Whirlpool Insulation
NIINSULATION, STRAP
1W10647259 Whirlpool Hinge Receiver
3AWPW10575396 Whirlpool Side Panel
3W11730303 Whirlpool Side Panel
4WP3400029 Whirlpool Dishwasher Nut
5W11562931 Whirlpool Door Gasket
6W11238400 Whirlpool Broil Element
7W10779716 Whirlpool Oven Bake Element
9W11122085 Whirlpool Vent Tube
10W10289168 Whirlpool Burner Box
11WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12WPW10067840 Whirlpool Screw
13W10541959 Whirlpool Heat Shield Assembly
14W10137382 Whirlpool Clip
15AWPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
17WP3196548 Whirlpool Thermal Fuse
183196172 Whirlpool Oven Screw
19W10035900 Whirlpool Support Bracket
20W11728255 Whirlpool Service Bracket
21WPW10245259 Whirlpool Terminal Block
22BACK, MAIN
23SCREW
24W11594027 Whirlpool Range Oven Light Socket
25RANGE ONLY 40W 120V APPL BULB
26WP3400016 Whirlpool Screw Assembly
27SENSOR-RANGE
28WP3196557 Whirlpool Screw
29W10655441 Whirlpool Insulation Wire
30W10777162 Whirlpool Screw
31W11370463 Whirlpool Door Rod Assembly
32W10877054 Whirlpool Spacer Assembly
33W10777210 Whirlpool Oven Bottom
34WP9757262 Whirlpool Light Switch
35WPW10281322 Whirlpool Connector
36WPW10289145 Whirlpool Oven Rack
37W11441001 Whirlpool Convection Fan
38WPW10346154 Whirlpool Cover Assembly
39W10273002 Whirlpool Support Bracket
40W11379357 Whirlpool Overflow Pan
41W10162255 Whirlpool Exhaust Cover
42W10162254 Whirlpool Air Duct
43W11107275 Whirlpool Range Control Panel Cooling Fan
44W11117035 Whirlpool Shield
45W10162241 Whirlpool Channel
46W10162248 Whirlpool Wire Cover
47W11379354 Whirlpool Rear Cover
48WPW10531060 Whirlpool Oven Rack
49W11217187 Whirlpool Tip Anchor
50W11135756 Whirlpool Screw Torx
51CLIP-PANEL, RATCHETING
