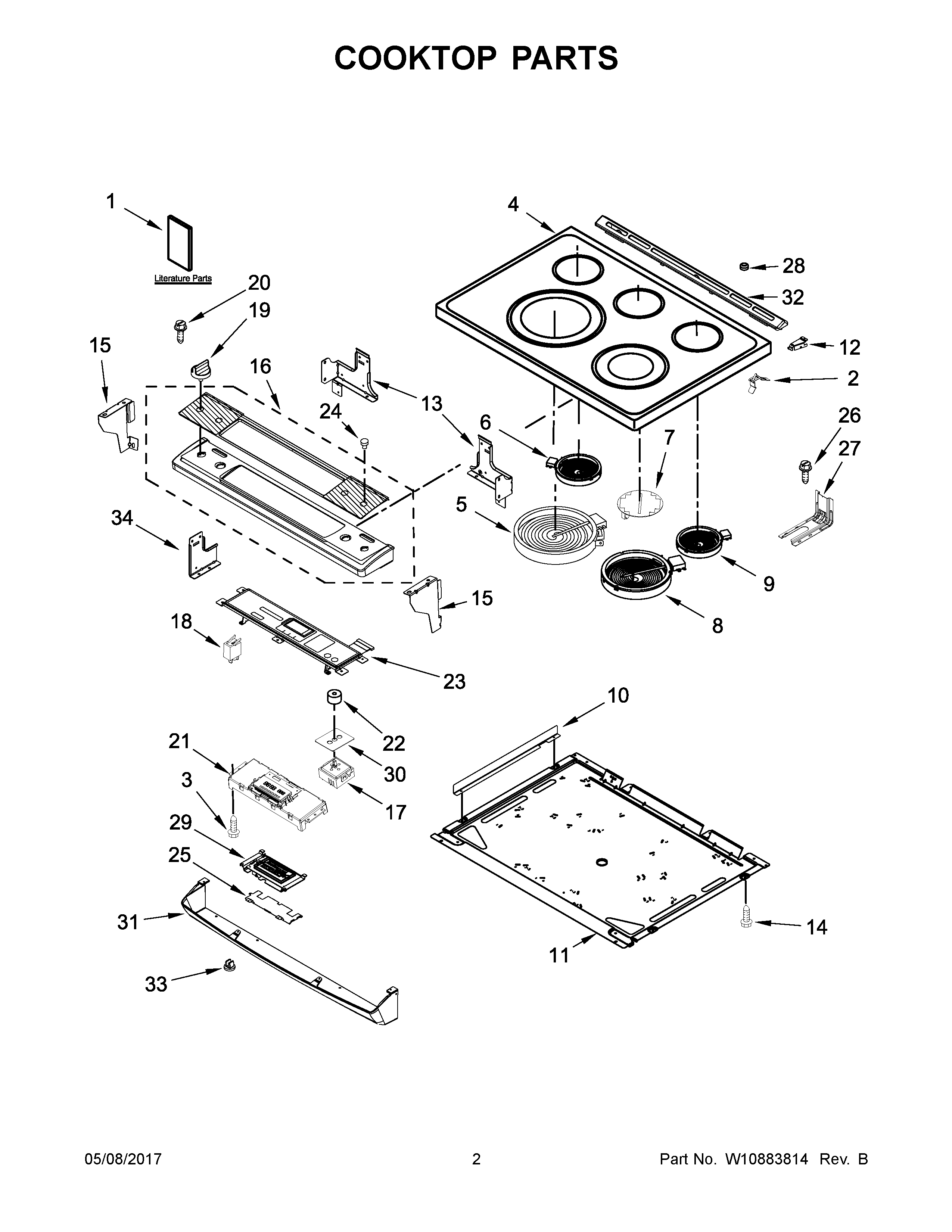

WEE745H0FH0 02 – COOKTOP PARTS

Products

Position	Product
NI	W11025616 Whirlpool Wire Harness
NI	W11226786 Whirlpool Wire Harness
NI	W10580296 Whirlpool Main Harness
NI	W11226772 Whirlpool Wire Harness
NI	W10580303 Whirlpool Wire Harness
NI	W10664316 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
1B	SHEET, TECH
1C	SAFER COOKING TIPS (ENGLISH
1D	Safer Cooking Tips (French)
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE AND CARE
1G	DIAGRAM, WIRING
1E	QUICK START GUIDE
1F	QUICK START GUIDE (FRENCH)
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W10884392 Whirlpool Cooktop Assembly
4A	W10884395 Whirlpool Cooktop
5	W11563195 Whirlpool Surface Element
6	WPW10342780 Whirlpool Surface Element
7	W11041453 Whirlpool Surface Element
8	W11517959 Whirlpool Electric Range Radiant Surface Element
9	ELMNT-SURF
10	W10613286 Whirlpool Bracket
11	W10536275 Whirlpool Pan
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13	W10289170 Whirlpool Support Bracket
13A	W10289169 Whirlpool Bracket Support
14	W11244557 Whirlpool Screw
15A	W10547961 Whirlpool Endcap Panel
15	W10547960 Whirlpool Endcap Panel
16B	W10884503 Whirlpool Control Panel
16A	W10884502 Whirlpool Control Panel
16	W10884501 Whirlpool Control Panel
17B	W10911303 Whirlpool Infinite Switch
17A	SWITCH-INF
17C	W10917724 Whirlpool Infinite Switch
17	W11129442 Whirlpool Surface Infinite Element Switch
18	WP8523265 Whirlpool Indicator Light
19	W11517331 Whirlpool Knob
20	WP3400882 Whirlpool Screw
21	W10884488 Whirlpool Electronic Control Board
22	W10702912 Whirlpool Switch Gasket
23B	W10728532 Whirlpool Dishwasher Membrane Switch
23	W10728530 Whirlpool Membrane Switch
23A	W10728531 Whirlpool Membrane Switch
24	WP3196068 Whirlpool Light Lens
25	W10558372 Whirlpool Bracket Mounting
26	SCREW, ANTI-TIP KIT
27	W11502257 Whirlpool Anchor Tip
28	W11104127 Whirlpool Bumper Assembly
29	W11122852 Whirlpool Electronic Control Board + Core
30	GASKET, SWITCH
31	WPL W10570528
31A	W11218703 Whirlpool Mounting Bracket
32A	W11240519 Whirlpool Vent Trim
32	W10636527 Whirlpool Vent Trim
33	W11025100 Whirlpool Insert
34	W10598048 Whirlpool Support Bracket
