WEE750H0HV0 02 – COOKTOP PARTS
Written by
in

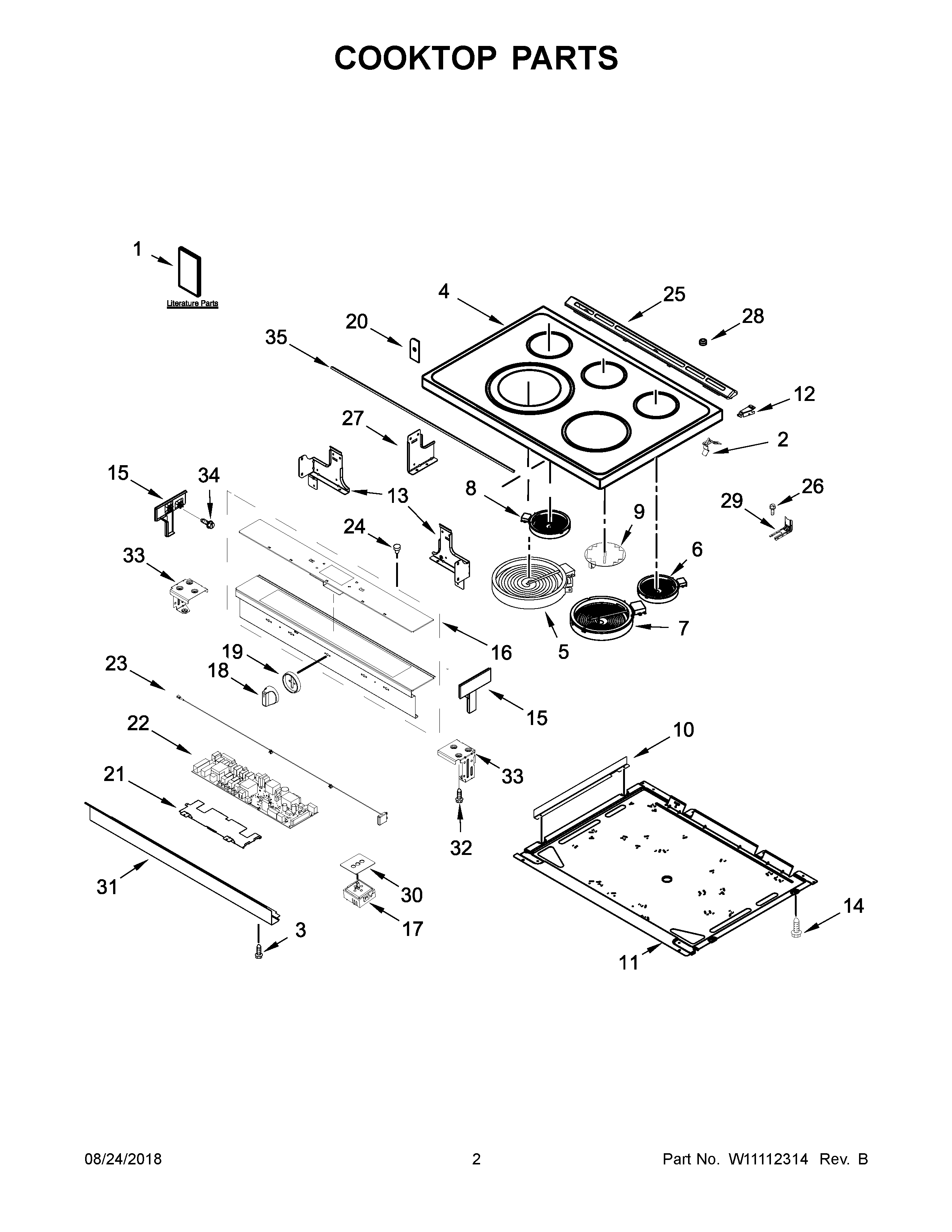

WEE750H0HV0 02 – COOKTOP PARTS
Products
Position
Product
NI
W11226786 Whirlpool Wire Harness
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10664316 Whirlpool Clip
NI
W11174740 Whirlpool Wire Harness
NI
W11262877 Whirlpool Wire Harness
NI
16515 Whirlpool Clip
1A
USE AND CARE GUIDE
1B
SHEET, TECH
1D
GUIDE, INTERNET CONNECTIVITY
1C
WIRING, DIAGRAM
1
INSTRUCTIONS, INSTALLATION
2
WPW10225448 Whirlpool Spring Assembly
3
SCREW
4
W11112610 Whirlpool Cooktop
5
W11563195 Whirlpool Surface Element
6
ELMNT-SURF
7
W11517959 Whirlpool Electric Range Radiant Surface Element
8
WPW10342780 Whirlpool Surface Element
9
W11041453 Whirlpool Surface Element
10
BRACKET, RADIANT
11
W10536275 Whirlpool Pan
12
W10162253 Whirlpool Mounting Bracket
12A
W10162252 Whirlpool Bracket Mounting
13A
W10867593 Whirlpool Support Bracket
13
W10867592 Whirlpool Support Bracket
14
W11244557 Whirlpool Screw
15
W10854356 Whirlpool Endcap Panel
15C
ENDCAP (BLACK STAINLESS (RIGHT))
15A
W10913756 Whirlpool Endcap Panel
15B
ENDCAP (STAINLESS (RIGHT))
16
W11335274 Whirlpool Electronic Control Board + Core
16A
W11335275 Whirlpool Electronic Control Board + Core
17B
W10917724 Whirlpool Infinite Switch
17
SWITCH-INF
17D
W10888698 Whirlpool Selector Switch
17A
W10911303 Whirlpool Infinite Switch
17C
W11129442 Whirlpool Surface Infinite Element Switch
18G
W11116443 Whirlpool Knob Assembly
18F
W11116442 Whirlpool Knob
18E
W11116441 Whirlpool Knob Assembly
18
W11685614 Whirlpool Knob
18A
W11115543 Whirlpool Knob
18B
W11115544 Whirlpool Knob
18C
W11115546 Whirlpool Knob
18D
W11116408 Whirlpool Knob
19A
BEZEL (BLACK STAINLESS
19
W11217547 Whirlpool Switch Bezel
20
W10882900 Whirlpool Gasket
21
WPL W10908536
22
W11113848-includeCORE Whirlpool W11113848 Refrigerator Electronic Control Board + Core
23
WPL W11174221
24
WP3196068 Whirlpool Light Lens
25
W11240519 Whirlpool Vent Trim
26
SCREW, ANTI-TIP KIT
27
WPL W10867600
28
W11104127 Whirlpool Bumper Assembly
29
W11502257 Whirlpool Anchor Tip
30
GASKET, SWITCH
31
W10854346 Whirlpool Dishwasher Mounting Bracket
32
W10491985 Whirlpool Screw
33
WPL W10828159
33A
WPL W10828160
34
W11245710 Whirlpool Refrigerator Screw
35
W10802441 Whirlpool Gasket
←
