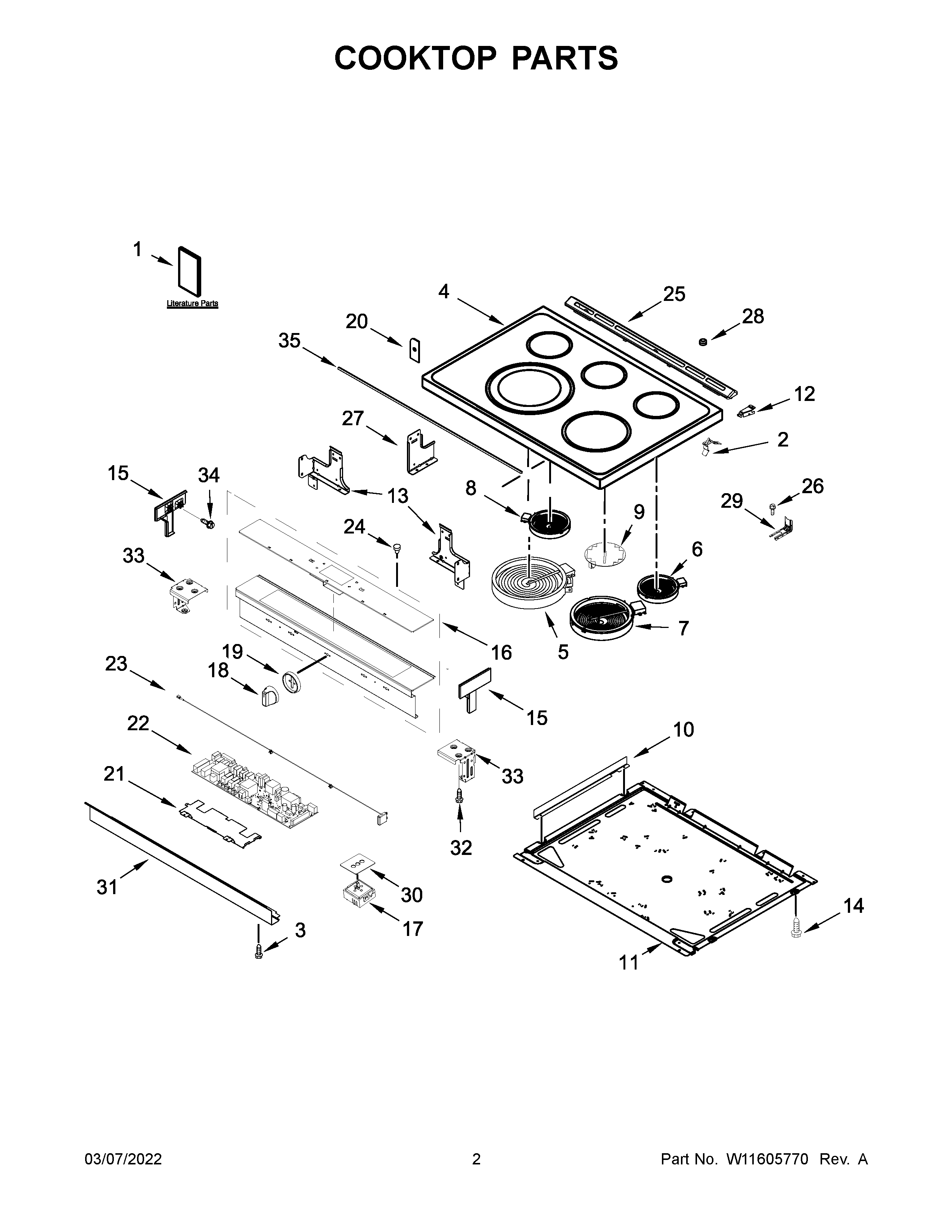

WEE750H0HV4 02 – COOKTOP PARTS

WEE750H0HV4 02 – COOKTOP PARTS

Written by

in

WEE750H0HV4 02 – COOKTOP PARTS

Products

PositionProduct
NI16515 Whirlpool Clip
NIW11451582 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIW11174740 Whirlpool Wire Harness
NIW11226786 Whirlpool Wire Harness
NIW10664316 Whirlpool Clip
1BTECH, SHEET
1AUSE AND CARE GUIDE
1QUICK START GUIDE
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W11112610 Whirlpool Cooktop
5W11563195 Whirlpool Surface Element
6ELMNT-SURF
7W11517959 Whirlpool Electric Range Radiant Surface Element
8WPW10342780 Whirlpool Surface Element
9W11041453 Whirlpool Surface Element
10BRACKET, RADIANT
11W10536275 Whirlpool Pan
12AW10162252 Whirlpool Bracket Mounting
12W10162253 Whirlpool Mounting Bracket
13AW10867593 Whirlpool Support Bracket
13W10867592 Whirlpool Support Bracket
14W11244557 Whirlpool Screw
15W10913756 Whirlpool Endcap Panel
15BENDCAP (BLACK STAINLESS (RIGHT))
15AW10854356 Whirlpool Endcap Panel
15CENDCAP (STAINLESS (RIGHT))
16CONSOLE, ASSEMBLY (BLACK STAINLESS)
16AW11335274 Whirlpool Electronic Control Board + Core
17DW10888698 Whirlpool Selector Switch
17CW11129442 Whirlpool Surface Infinite Element Switch
17AW10911303 Whirlpool Infinite Switch
17BW10917724 Whirlpool Infinite Switch
17SWITCH-INF
18BW11115546 Whirlpool Knob
18AW11685614 Whirlpool Knob
18W11115543 Whirlpool Knob
18EW11116408 Whirlpool Knob
18DW11116441 Whirlpool Knob Assembly
18CW11115544 Whirlpool Knob
18GW11116442 Whirlpool Knob
18FW11116443 Whirlpool Knob Assembly
19BEZEL (BLACK STAINLESS
19AW11217547 Whirlpool Switch Bezel
20W10882900 Whirlpool Gasket
21WPL W10908536
22W11113848-includeCORE Whirlpool W11113848 Refrigerator Electronic Control Board + Core
23W11583804 Whirlpool Antenna
24WP3196068 Whirlpool Light Lens
25W11240519 Whirlpool Vent Trim
26SCREW, ANTI-TIP KIT
27WPL W10867600
28W11104127 Whirlpool Bumper Assembly
29W11502257 Whirlpool Anchor Tip
30GASKET, SWITCH
31W10854346 Whirlpool Dishwasher Mounting Bracket
32W10491985 Whirlpool Screw
33AWPL W10828160
33WPL W10828159
34W11245710 Whirlpool Refrigerator Screw
35W10802441 Whirlpool Gasket
