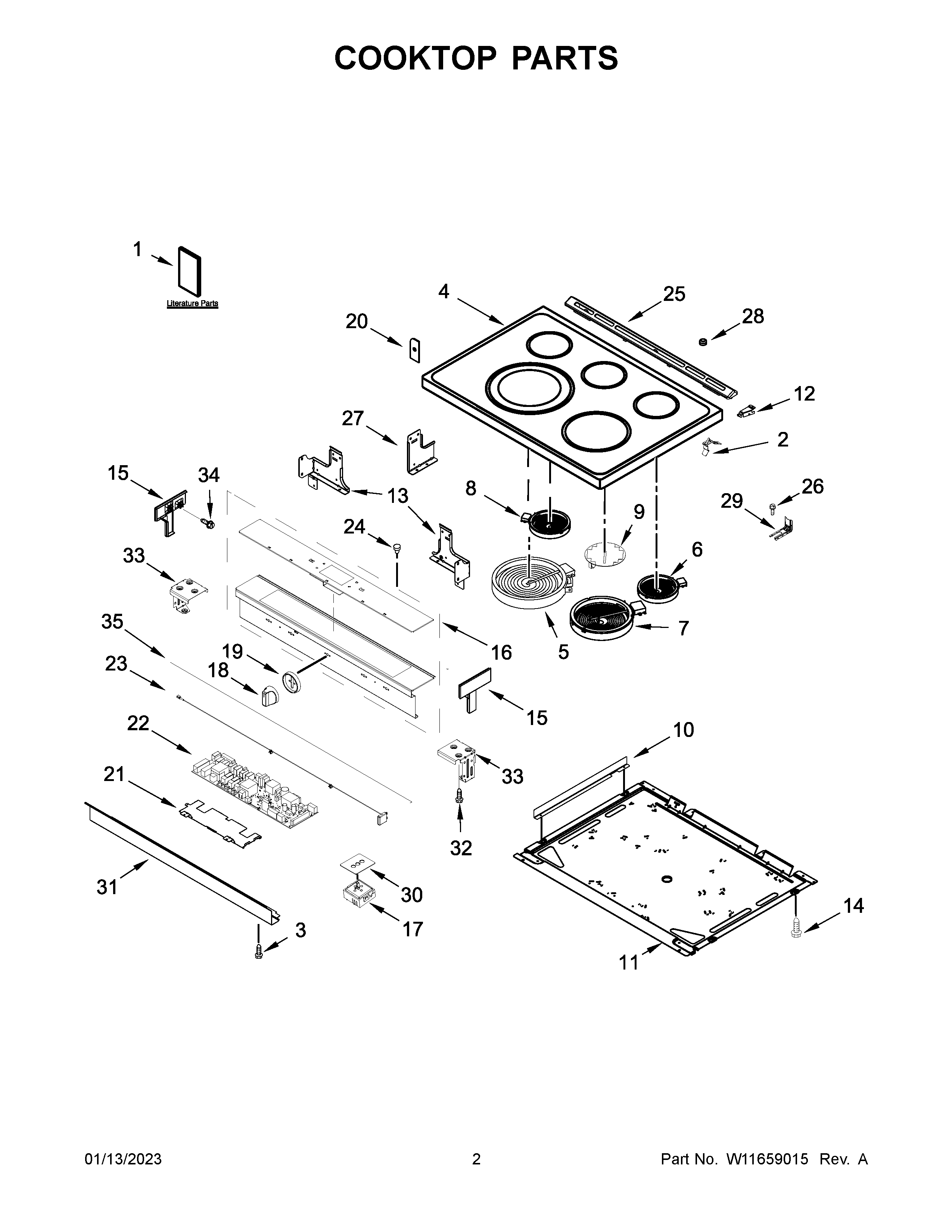

WEE750H0HW4 02 – COOKTOP PARTS

Products

PositionProduct
NIW10664316 Whirlpool Clip
NIW11451582 Whirlpool Wire Harness
NIW11174740 Whirlpool Wire Harness
NIW11226786 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NICABINET (NOT A SERVICEABLE PART)
1QUICK START GUIDE
1CINTERNET CONNECTIVITY GUIDE
1AUSE AND CARE GUIDE
1BTECH, SHEET
2W11663556 Whirlpool Spring Assembly
3SCREW
4W11112610 Whirlpool Cooktop
4AW11111844 Whirlpool Cooktop
5W11563195 Whirlpool Surface Element
6ELMNT-SURF
7W11517959 Whirlpool Electric Range Radiant Surface Element
8WPW10342780 Whirlpool Surface Element
9W11041453 Whirlpool Surface Element
10BRACKET, RADIANT
11W10536275 Whirlpool Pan
12AW10162252 Whirlpool Bracket Mounting
12W10162253 Whirlpool Mounting Bracket
13W10867592 Whirlpool Support Bracket
13AW10867593 Whirlpool Support Bracket
14W11244557 Whirlpool Screw
15ENDCAP (BLACK (LEFT))
15CENDCAP (WHITE (RIGHT))
15AENDCAP (WHITE (LEFT))
15BENDCAP (BLACK (RIGHT))
16AW11339761-includeCORE Whirlpool W11339761 Electronic Control Board + Core
16W11339764-includeCORE Whirlpool W11339764 Refrigerator Electronic Control Board + Core
17W11129442 Whirlpool Surface Infinite Element Switch
17CW10917724 Whirlpool Infinite Switch
17DW10888698 Whirlpool Selector Switch
17BSWITCH-INF
17AW10911303 Whirlpool Infinite Switch
18CW11112764 Whirlpool Knob
18GW11113747 Whirlpool Knob
18W11112751 Whirlpool Knob Assembly
18AW11112747 Whirlpool Knob
18BW11112766 Whirlpool Knob
18DW11113734 Whirlpool Knob
18EW11113732 Whirlpool Knob
18FW11113785 Whirlpool Knob
19ABEZEL (WHITE)
19BEZEL (BLACK)
20W10882900 Whirlpool Gasket
21WPL W10908536
22W11113848-includeCORE Whirlpool W11113848 Refrigerator Electronic Control Board + Core
23W11583804 Whirlpool Antenna
24WP3196068 Whirlpool Light Lens
25AW10636527 Whirlpool Vent Trim
25W11240519 Whirlpool Vent Trim
26SCREW, ANTI-TIP KIT
27WPL W10867600
28W11104127 Whirlpool Bumper Assembly
29W11502257 Whirlpool Anchor Tip
30GASKET, SWITCH
31W10854346 Whirlpool Dishwasher Mounting Bracket
32W10491985 Whirlpool Screw
33WPL W10828159
33AWPL W10828160
34W11245710 Whirlpool Refrigerator Screw
35W10802441 Whirlpool Gasket
