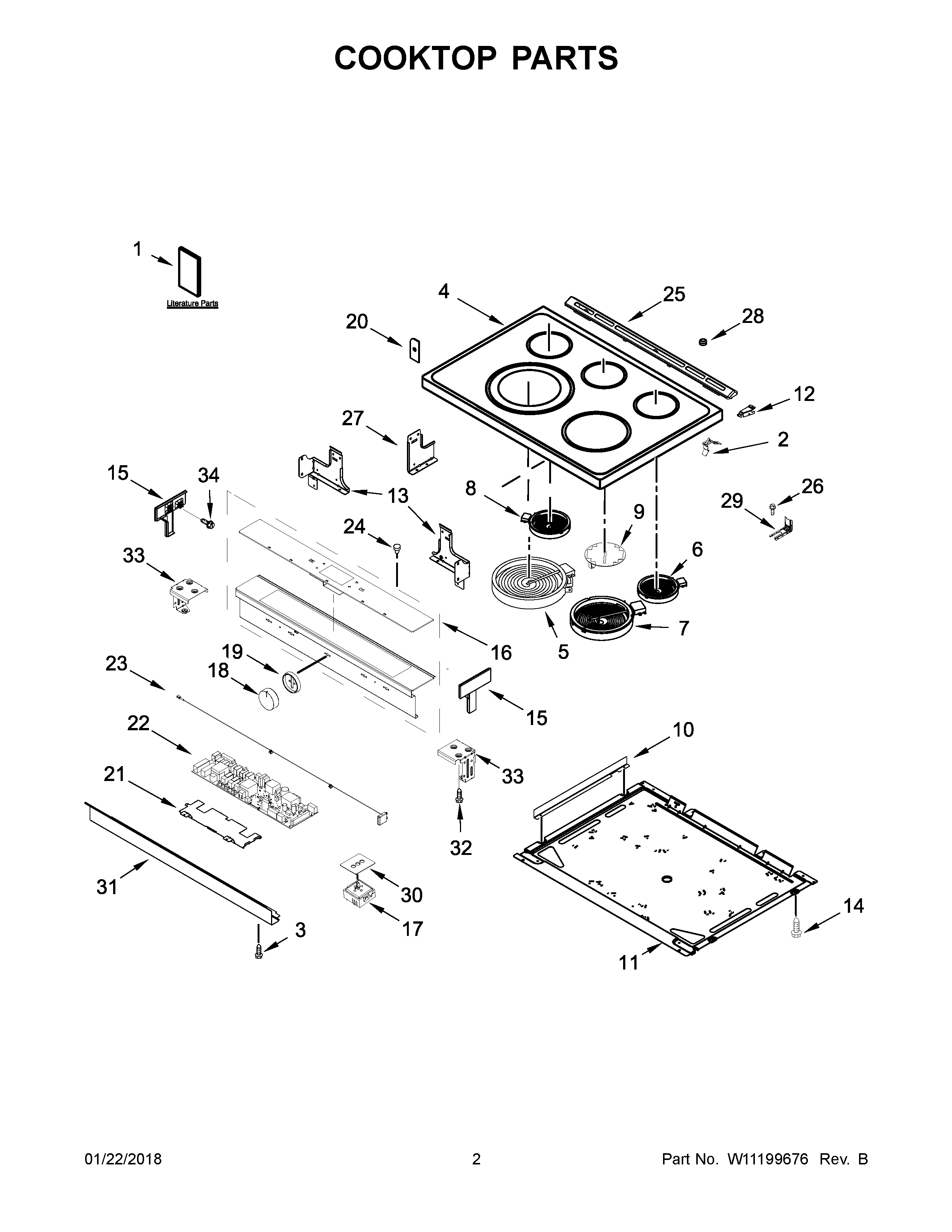

WEEA25H0HN0 02 – COOKTOP PARTS

WEEA25H0HN0 02 – COOKTOP PARTS

Written by

in

WEEA25H0HN0 02 – COOKTOP PARTS

Products

PositionProduct
NIW11262877 Whirlpool Wire Harness
NIW10664316 Whirlpool Clip
NICABINET (NOT A SERVICEABLE PART)
NIW11174740 Whirlpool Wire Harness
NIW11226786 Whirlpool Wire Harness
1DGUIDE, INTERNET CONNECTIVITY
1INSTRUCTIONS, INSTALLATION
1BSHEET, TECH
1AUSE AND CARE GUIDE
1CWIRING, DIAGRAM
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W11112610 Whirlpool Cooktop
5W11563195 Whirlpool Surface Element
6ELMNT-SURF
7W11517959 Whirlpool Electric Range Radiant Surface Element
8WPW10342780 Whirlpool Surface Element
9W11041453 Whirlpool Surface Element
10W10613286 Whirlpool Bracket
11W10536275 Whirlpool Pan
12W10162253 Whirlpool Mounting Bracket
12AW10162252 Whirlpool Bracket Mounting
13W10867592 Whirlpool Support Bracket
13AW10867593 Whirlpool Support Bracket
14W11244557 Whirlpool Screw
15W10854356 Whirlpool Endcap Panel
15BENDCAP (STAINLESS (RIGHT))
15AENDCAP (SUNSET BRONZE (LEFT))
15CENDCAP (SUNSET BRONZE (RIGHT))
16AW11339497-includeCORE Whirlpool W11339497 Refrigerator Electronic Control Board
16W11339387 Whirlpool Electronic Control Board + Core
17DW10888698 Whirlpool Selector Switch
17CW11129442 Whirlpool Surface Infinite Element Switch
17BW10917724 Whirlpool Infinite Switch
17SWITCH-INF
17AW10911303 Whirlpool Infinite Switch
18AW11202653 Whirlpool Knob
18W11267652 Whirlpool Knob
18BW11267655 Whirlpool Knob
18CW11267656 Whirlpool Knob Assembly
19BEZEL (STAINLESS)
20W10882900 Whirlpool Gasket
21WPL W10908536
22W11113848-includeCORE Whirlpool W11113848 Refrigerator Electronic Control Board + Core
23WPL W11174221
24WP3196068 Whirlpool Light Lens
25W11240519 Whirlpool Vent Trim
26SCREW, ANTI-TIP KIT
27WPL W10867600
28W11104127 Whirlpool Bumper Assembly
29W11502257 Whirlpool Anchor Tip
30GASKET, SWITCH
31WPL W10854348
31AWPL W10854349
32W10491985 Whirlpool Screw
33WPL W10828159
33AWPL W10828160
34W11245710 Whirlpool Refrigerator Screw
