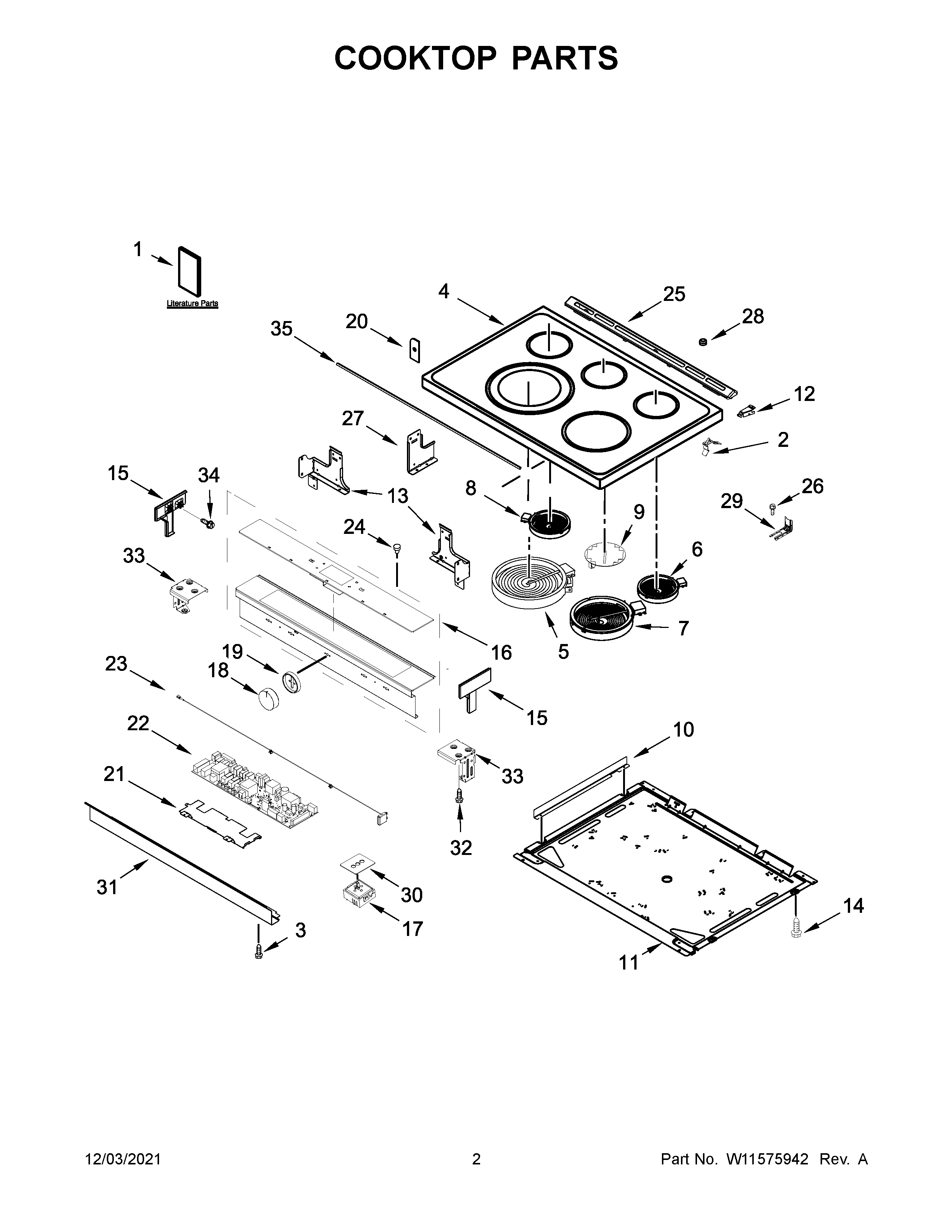

WEEA25H0HZ2 02 – COOKTOP PARTS

Products

Position	Product
NI	W11226786 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10664316 Whirlpool Clip
NI	W11451582 Whirlpool Wire Harness
NI	W11174740 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
1	QUICK START GUIDE
1B	TECH, SHEET
1A	USE AND CARE GUIDE
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W11112610 Whirlpool Cooktop
5	W11563195 Whirlpool Surface Element
6	ELMNT-SURF
7	W11517959 Whirlpool Electric Range Radiant Surface Element
8	WPW10342780 Whirlpool Surface Element
9	W11041453 Whirlpool Surface Element
10	BRACKET, RADIANT
11	W10536275 Whirlpool Pan
12	W10162253 Whirlpool Mounting Bracket
12A	W10162252 Whirlpool Bracket Mounting
13	W10867592 Whirlpool Support Bracket
13A	W10867593 Whirlpool Support Bracket
14	W11244557 Whirlpool Screw
15	W10854356 Whirlpool Endcap Panel
15A	ENDCAP (STAINLESS (RIGHT))
16	W11339387 Whirlpool Electronic Control Board + Core
17D	W10888698 Whirlpool Selector Switch
17B	W10917724 Whirlpool Infinite Switch
17A	W10911303 Whirlpool Infinite Switch
17C	W11129442 Whirlpool Surface Infinite Element Switch
17	SWITCH-INF
18A	W11267653 Whirlpool Knob
18B	W11267655 Whirlpool Knob
18C	W11267656 Whirlpool Knob Assembly
18	W11267652 Whirlpool Knob
19	BEZEL (STAINLESS)
20	W10882900 Whirlpool Gasket
21	WPL W10908536
22	W11113848-includeCORE Whirlpool W11113848 Refrigerator Electronic Control Board + Core
23	W11583804 Whirlpool Antenna
24	WP3196068 Whirlpool Light Lens
25	W11240519 Whirlpool Vent Trim
26	SCREW, ANTI-TIP KIT
27	WPL W10867600
28	W11104127 Whirlpool Bumper Assembly
29	W11502257 Whirlpool Anchor Tip
30	GASKET, SWITCH
31	W10854346 Whirlpool Dishwasher Mounting Bracket
32	W10491985 Whirlpool Screw
33A	WPL W10828160
33	WPL W10828159
34	W11245710 Whirlpool Refrigerator Screw
35	W10802441 Whirlpool Gasket
