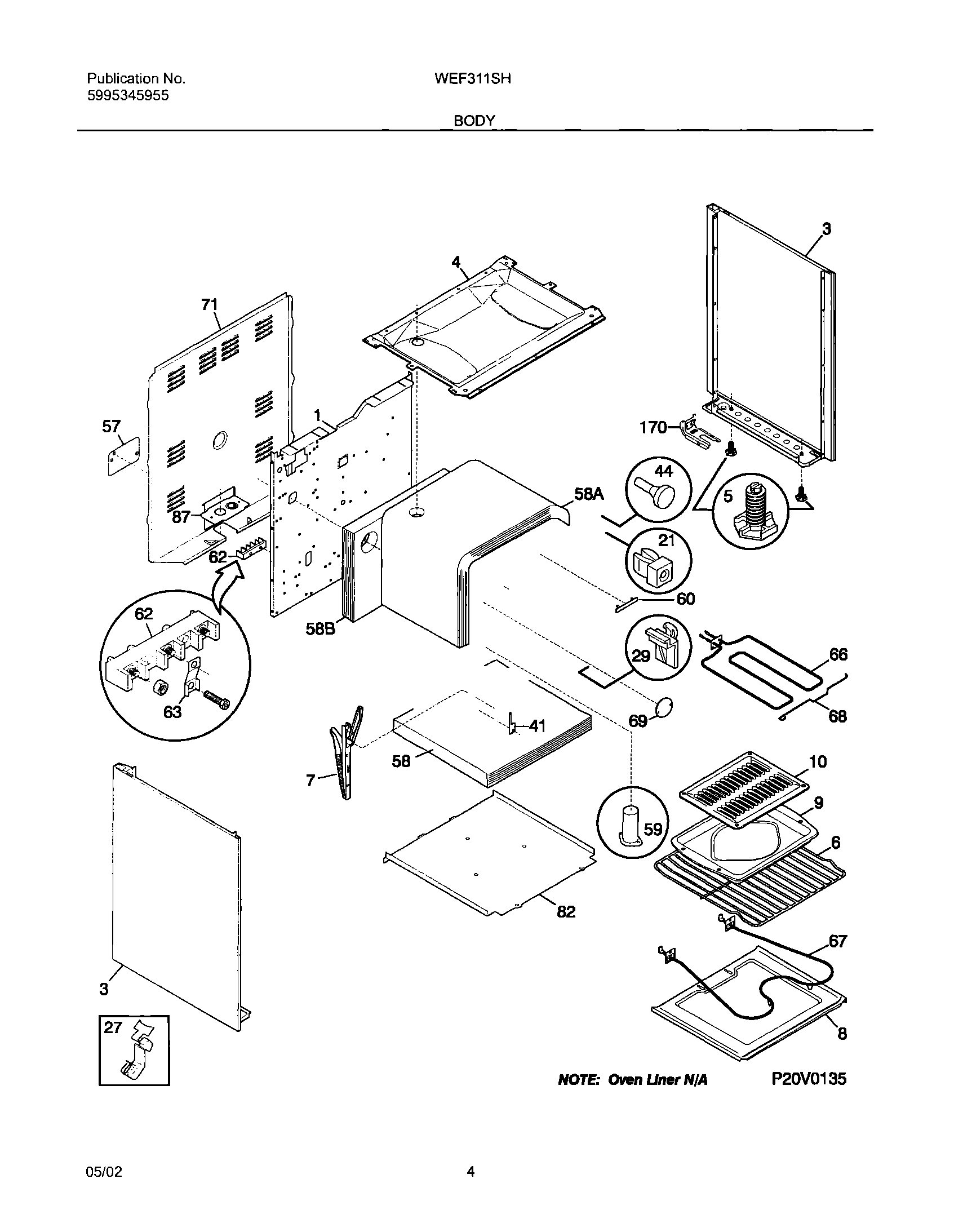

WEF311SHWA 05 – BODY

WEF311SHWA 05 – BODY

Written by

in

WEF311SHWA 05 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIWCI 316073400
NIWCI 3051367
NIWiring Harness,main
NI316205500 Frigidaire Oven Nut
NI3203550 Frigidaire Oven Plug
NI5308014215 Frigidaire Oven Screw
1WCI 316080803
3WCI 316081034
3WCI 316081035
4WCI 5303271756
5WCI 316129200
6316067902 Frigidaire Oven Rack
7WCI 316007007
8PANEL-OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57WCI 316081100
58316403803 Frigidaire Insulation
58A316047707 Frigidaire Insulation
58B316054202 Frigidaire Insulation
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71WCI 316015804
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316116000 Frigidaire Screw
170316112500 Frigidaire Oven Template
