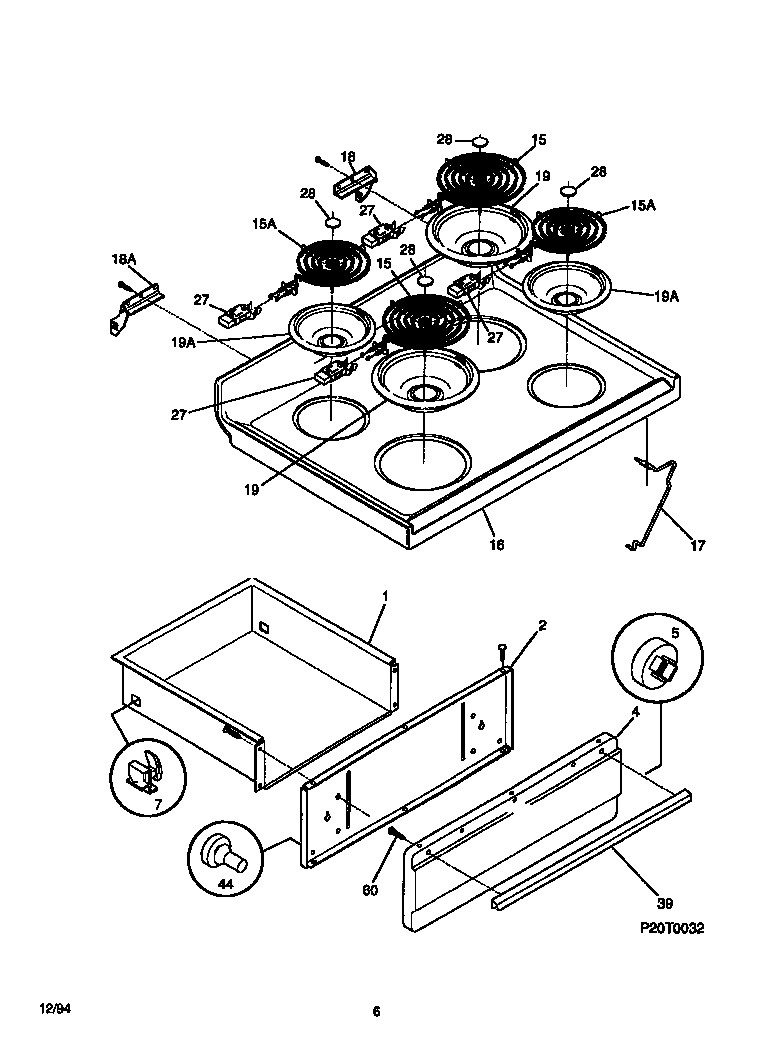

WEF322BADA 04 – TOP/DRAWER

WEF322BADA 04 – TOP/DRAWER

Written by

in

WEF322BADA 04 – TOP/DRAWER

Products

PositionProduct
*78080WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318372210 Frigidaire Oven Range 6" 1250W Surface Element
15316442300 Frigidaire Oven 2100W Coil Element 8
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18131243700 Frigidaire Screw
18AHINGE-MAIN TOP (LH)
19AL304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
39HANDLE-DRAWER, ALMOND
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303288574
