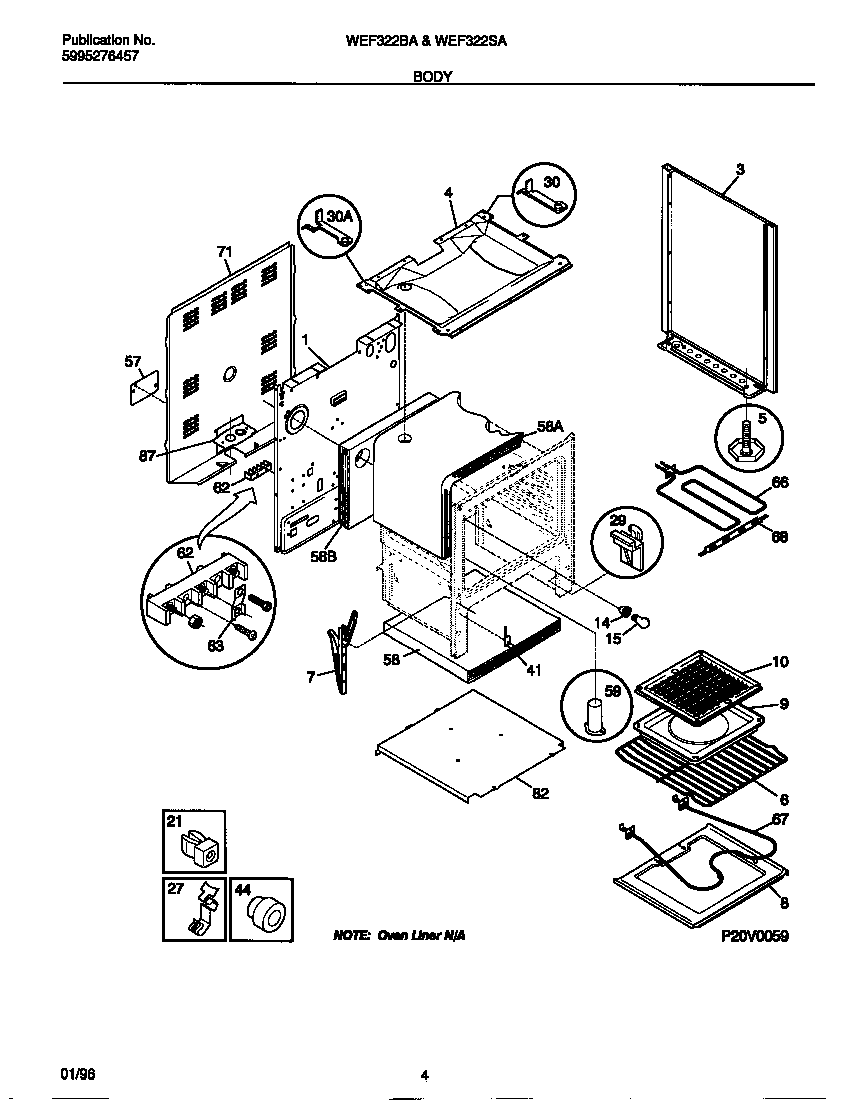

WEF322BAWD 03 – BODY

WEF322BAWD 03 – BODY

Written by

in

WEF322BAWD 03 – BODY

Products

PositionProduct
*32489WCI 5303281584
*32486COVER-OVEN FRONT
*32490WCI 316001180
*32488316205500 Frigidaire Oven Nut
*324873203550 Frigidaire Oven Plug
1WCI 316080801
3WCI 316081004
3WCI 316081005
4WCI 5303271756
5BWCI 3934058
5C316116000 Frigidaire Screw
5ASCREW-LEVELING
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8SHIELD, OVEN BOTTOM
9WCI 316073800
10WCI 3205234
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57WCI 316081101
58316054202 Frigidaire Insulation
58316047707 Frigidaire Insulation
58316403803 Frigidaire Insulation
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
82PANEL-OVEN BOTTOM
87WCI 316081201
