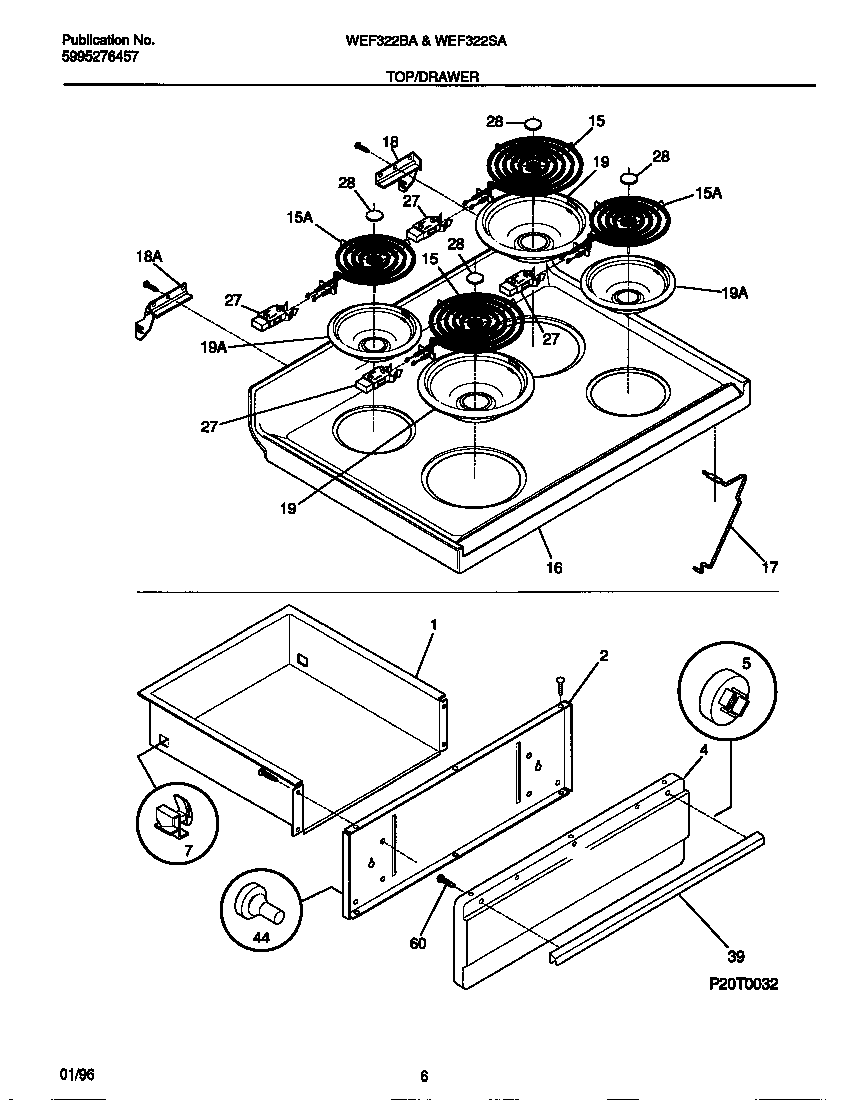

WEF322BAWD 04 – TOP/DRAWER

WEF322BAWD 04 – TOP/DRAWER

Written by

in

WEF322BAWD 04 – TOP/DRAWER

Products

PositionProduct
*32494131243700 Frigidaire Screw
*32495WCI 5303288574
*32492WCI 316001725
*32493WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4PANEL-BROILER, WHITE
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442300 Frigidaire Oven 2100W Coil Element 8
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
39WCI 316019506
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
