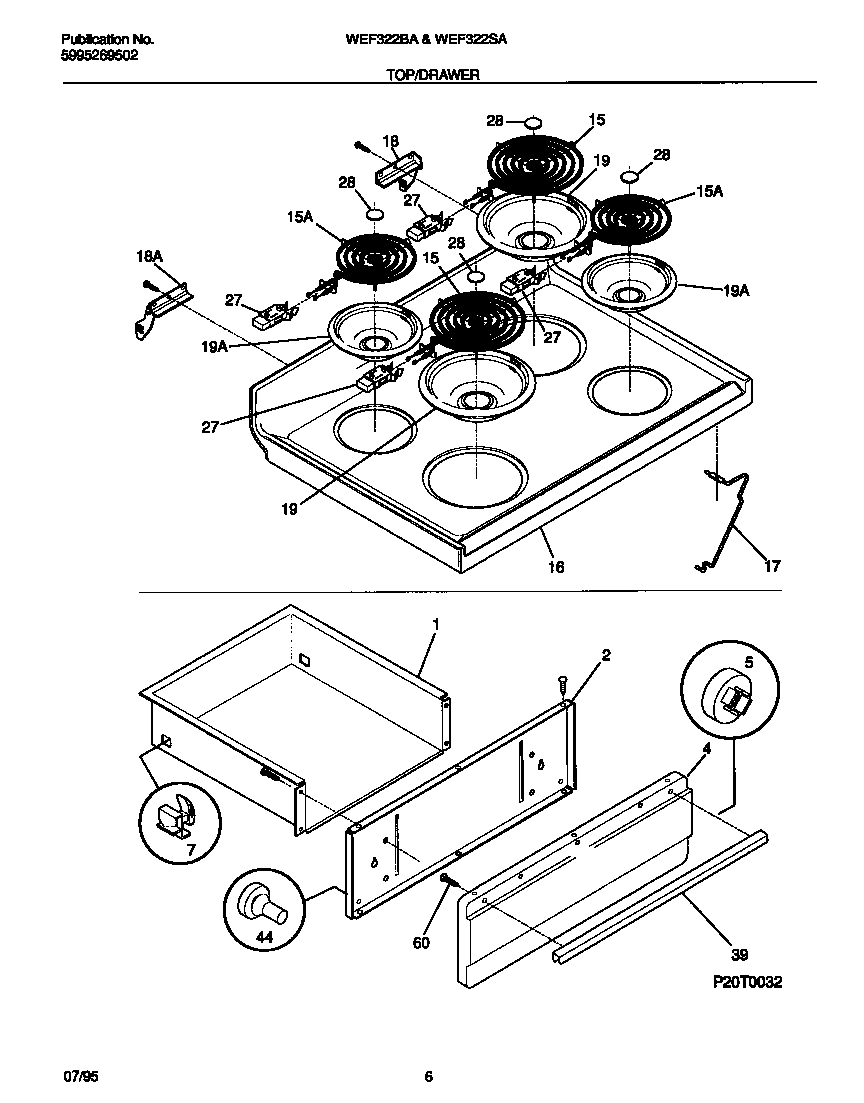

WEF322SADC 04 – TOP/DRAWER

Products

Position	Product
*88529	WCI 5303281379
*88531	131243700 Frigidaire Screw
*88530	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316056206
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A	318372210 Frigidaire Oven Range 6" 1250W Surface Element
15	316442300 Frigidaire Oven 2100W Coil Element 8
16	WCI 316020908
17	316057601 Frigidaire Oven Rod
18A	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19A	L304430992 Frigidaire 6" Drip Bowl Chrome FM
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	MEDALLION, STAINLESS STEEL, SURF ELEM
39	HANDLE-DRAWER, ALMOND
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
