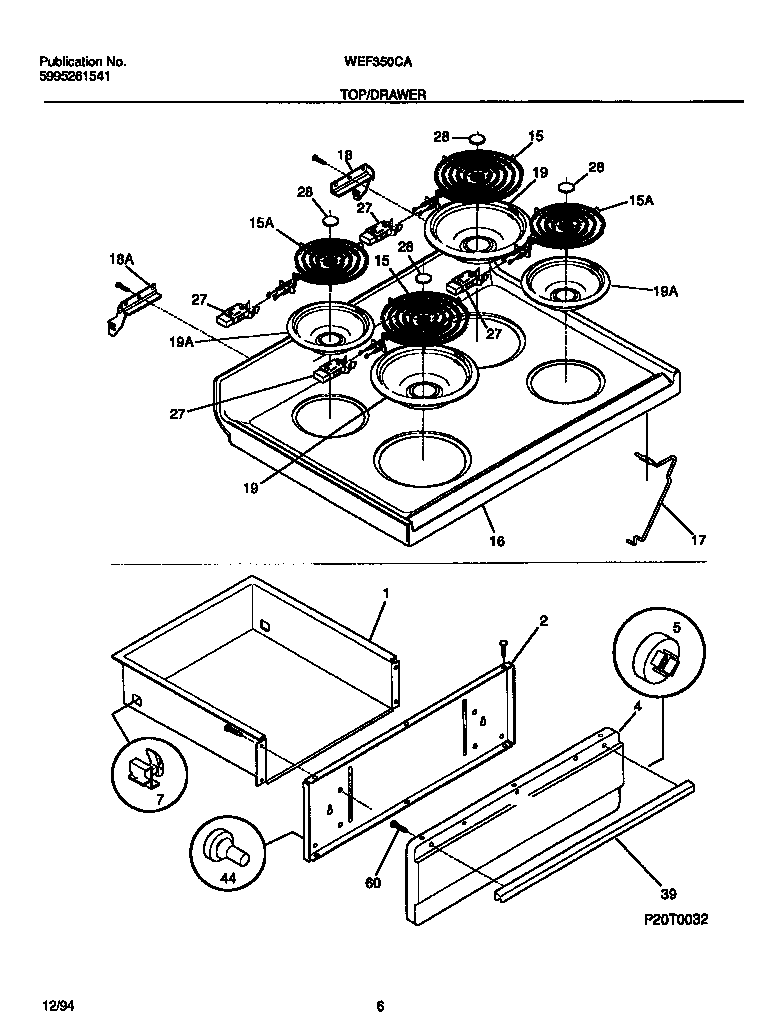

WEF350CASA 04 – TOP/DRAWER

WEF350CASA 04 – TOP/DRAWER

Written by

in

WEF350CASA 04 – TOP/DRAWER

Products

PositionProduct
*26727WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL-BROILER, WHITE
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
18131243700 Frigidaire Screw
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
39HANDLE-DRAWER, WHITE
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
