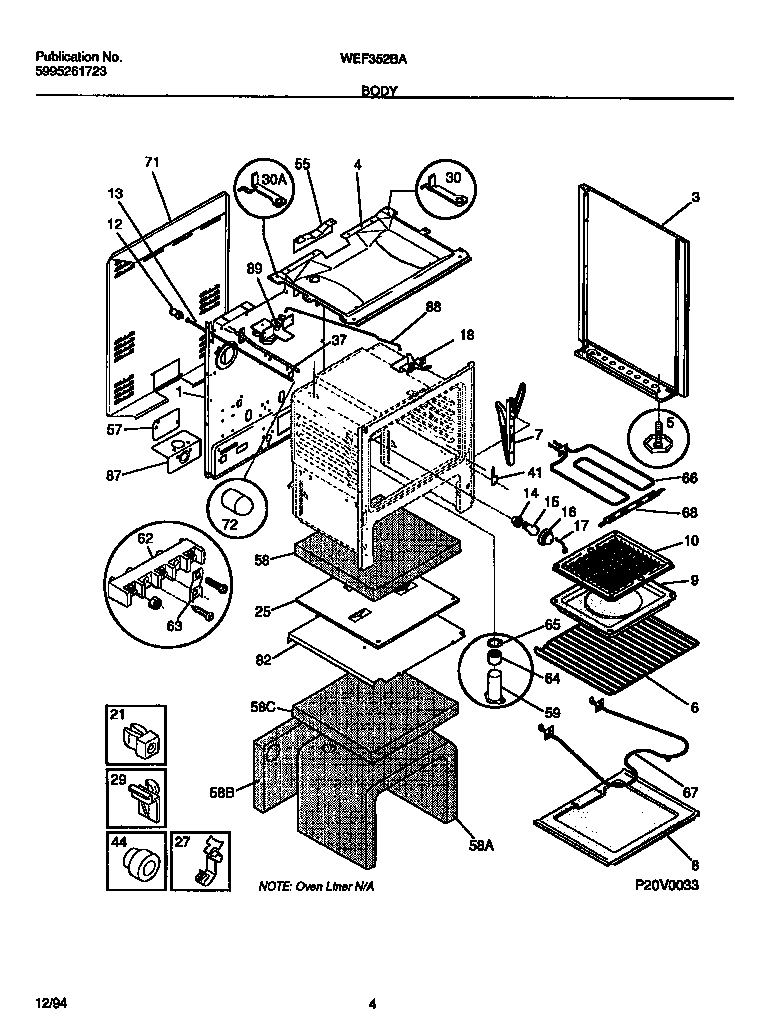

WEF352BAWB 03 – BODY

Products

PositionProduct
*05640FASTENER-EDGE MTG (NOT ILLUSTRATED)
*056413203550 Frigidaire Oven Plug
*05642316205500 Frigidaire Oven Nut
*056435303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 316029410
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3PNL-B/S-LH-WHITE
3PNL-B/S-RH-WHITE
4WCI 5303271756
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5A316116000 Frigidaire Screw
5WCI 3934058
5CSCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 316073900
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30ABRACKET-HINGE, MAIN TOP, LH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
57COVER-ACCESS
58CWCI 313304
58316403803 Frigidaire Insulation
58BWCI 316054200
58AINSULATION, OVEN WRAPPER
59WCI 316073600
62WCI 316075400
62A5304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD, REAR WALL, REAR WALL
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
88WCI 316026400
89WCI 316028101
