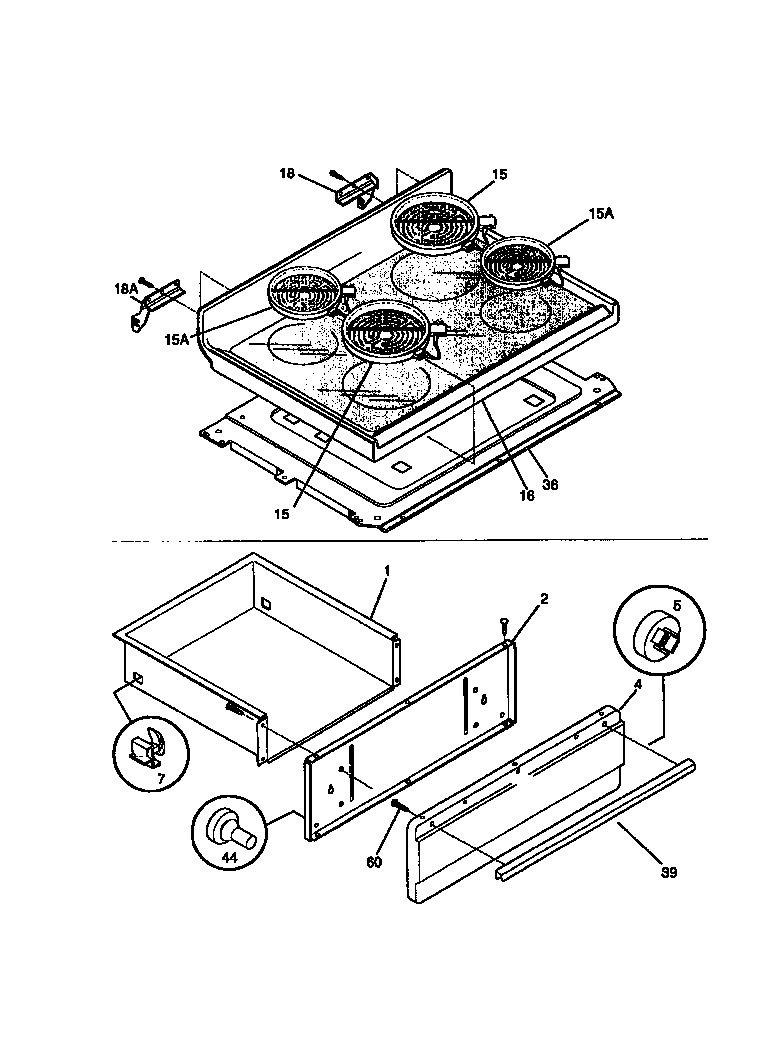

WEF357BADA 05 – TOP/DRAWER

Products

Position	Product
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056206
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	318198834 Frigidaire Oven Element
15	LIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15	WCI 5303305628
15A	318178110 Frigidaire Oven Range 6" Surface Element
16	WCI 316035520
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
18	131243700 Frigidaire Screw
36	WCI 316023301
36	WCI 316033609
36	WCI 316041001
39	HANDLE-DRAWER, ALMOND
44	3131903 Frigidaire Door/Drawer Bumper
60B	WCI 5309951550
60	WCI 5303288574
60A	WCI 5303281584
