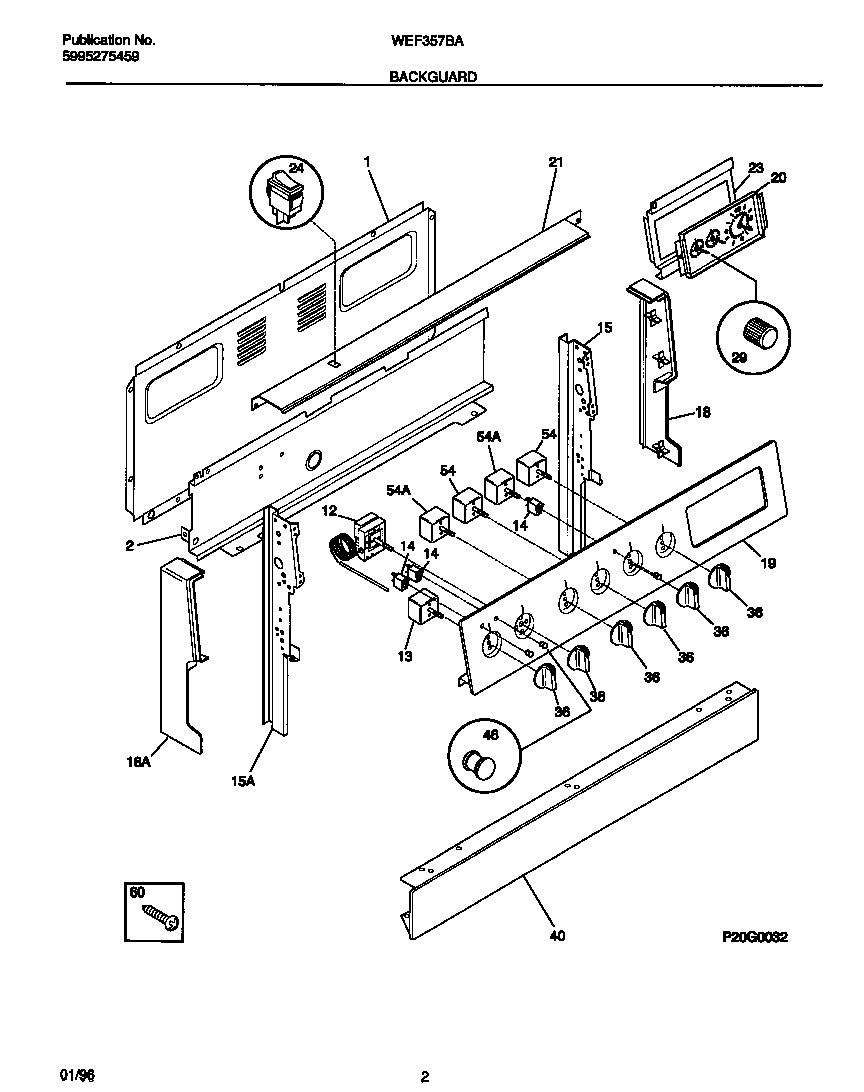

WEF357BADC 02 – BACKGUARD

Products

Position	Product
*03121	WCI 5303288574
*03120	WCI 5303281584
*03122	SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
1	WCI 316081601
2	WCI 316015905
12	THERMOSTAT-OVEN
13	WCI 316023200
14A	316022503 Frigidaire Light Lamp P-1
14B	LIGHT/LAMP, IND, HOT SURFACE
15	WCI 316023110
15	WCI 316023111
18	CAP-END-RH
18	CAP-END-LH
19	WCI 316014716
20	WCI 316017408
21	WCI 316014801
23	WCI 316015005
24	5308015487 Frigidaire Switch-Oven Light
29	WCI 316029000
36	KNOB-CONTROL, (5)
40	WCI 316062329
46B	LENS-LIGHT/LAMP, INDICATOR
46A	318228310 Frigidaire Oven Lens
54	5303935086 Frigidaire Oven Top Burner Switch Kit
54	316436001 Frigidaire Oven Range Infinite Burner Switch
60	316021105 Frigidaire Oven Screw
