WEF357BAWA 03 – BODY

WEF357BAWA 03 – BODY

Written by

in

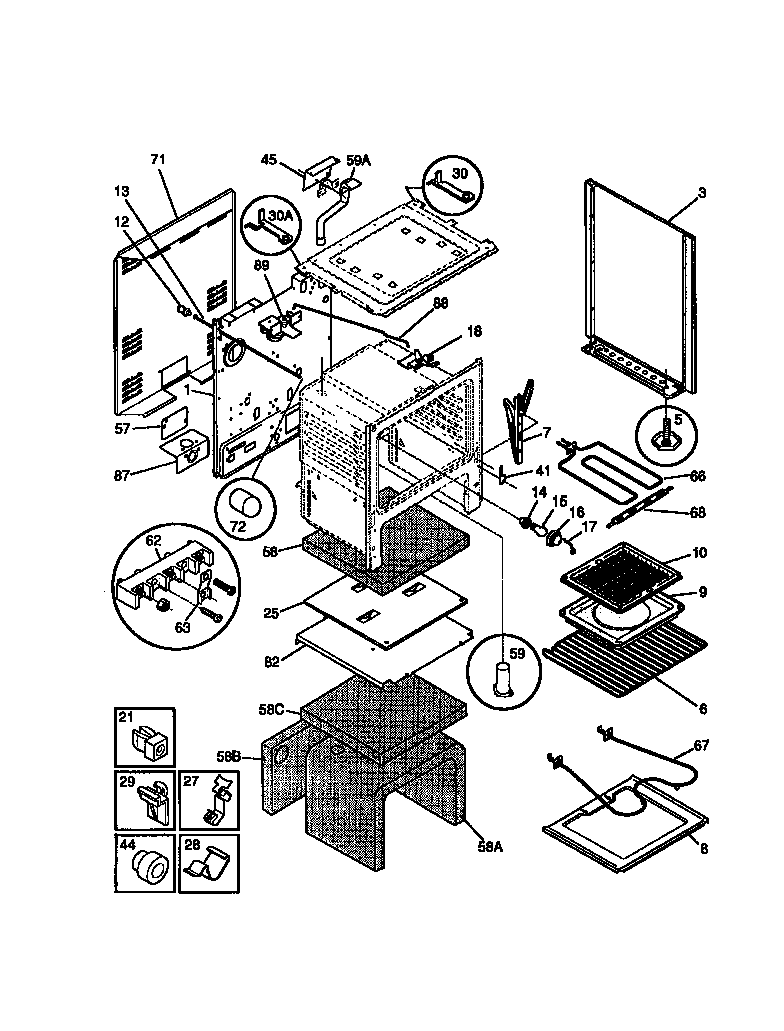

WEF357BAWA 03 – BODY

Products

PositionProduct
1WCI 316029410
1WCI 316075201
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3PNL-B/S-RH-WHITE
3PNL-B/S-LH-WHITE
5WCI 3934058
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 316073900
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
275303284616 Frigidaire Range Bulb Clip Thermostat
28Clip,wiring harness ,green ,main top
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30ABRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066101
57COVER-ACCESS
58CINSULATION, OVEN TOP
58BWCI 316054200
58AINSULATION, OVEN WRAPPER
58316403803 Frigidaire Insulation
59BRACKET-MOUNTING,VENT TUBE
59WCI 316073602
59AWCI 316023600
625304409888 Frigidaire Oven Terminal Block with Hardware
62WCI 316075400
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD, REAR WALL, REAR WALL
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
88WCI 316026400
89B3203550 Frigidaire Oven Plug
89WCI 316028100
89C316205500 Frigidaire Oven Nut
89AFASTENER-EDGE MTG (NOT ILLUSTRATED)
89D5303321319 Frigidaire Refrigerator White Touch Up Paint
