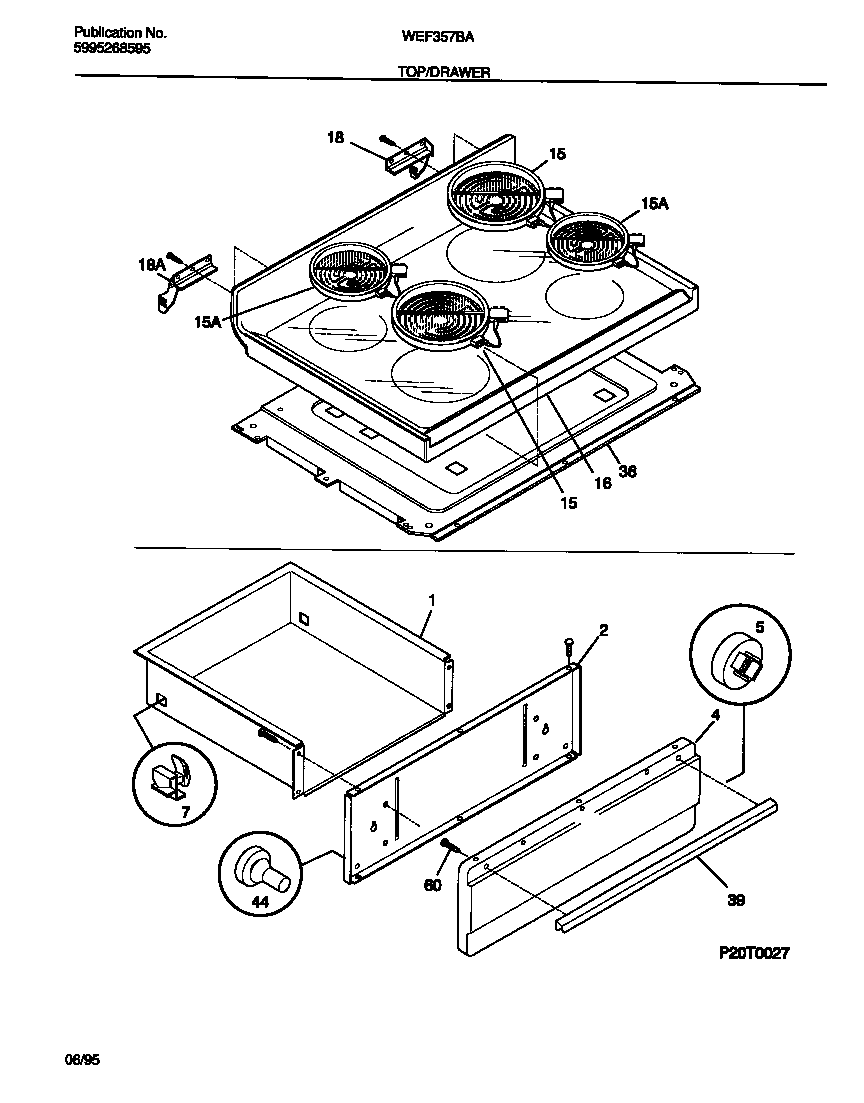

WEF357BAWB 04 – TOP/DRAWERadmin2025-04-26T08:44:34+00:00WEF357BAWB 04 – TOP/DRAWER
Products
| Position | Product |
|---|
| *12850 | LIGHT/LAMP, IND, HOT SURFACE |
| *12852 | WCI 5303281379 |
| *12856 | WCI 316001732 |
| *12851 | LENS-LIGHT/LAMP, INDICATOR |
| *12855 | WCI 5309951550 |
| *12854 | 131243700 Frigidaire Screw |
| *12853 | WCI 5303281584 |
| 1 | DRAWER-UTILITY |
| 2 | SHIELD-PNL |
| 4 | PANEL-BROILER, WHITE |
| 4 | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 5 | FSTNR, SPACER (2) |
| 7 | 3051163 Frigidaire Oven Range Rear Broiler Drawer Glide |
| 15A | 318178110 Frigidaire Oven Range 6" Surface Element |
| 15B | WCI 5303305628 |
| 15A | 318198834 Frigidaire Oven Element |
| 15B | LIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED) |
| 16 | WCI 316035519 |
| 18 | HINGE-MAIN TOP (LH) |
| 18 | HINGE-MAIN TOP (RH) |
| 36B | WCI 316023301 |
| 36C | WCI 316041001 |
| 36A | WCI 316033610 |
| 39 | HANDLE-DRAWER, WHITE |
| 44 | 3131903 Frigidaire Door/Drawer Bumper |
| 60 | SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2 |
