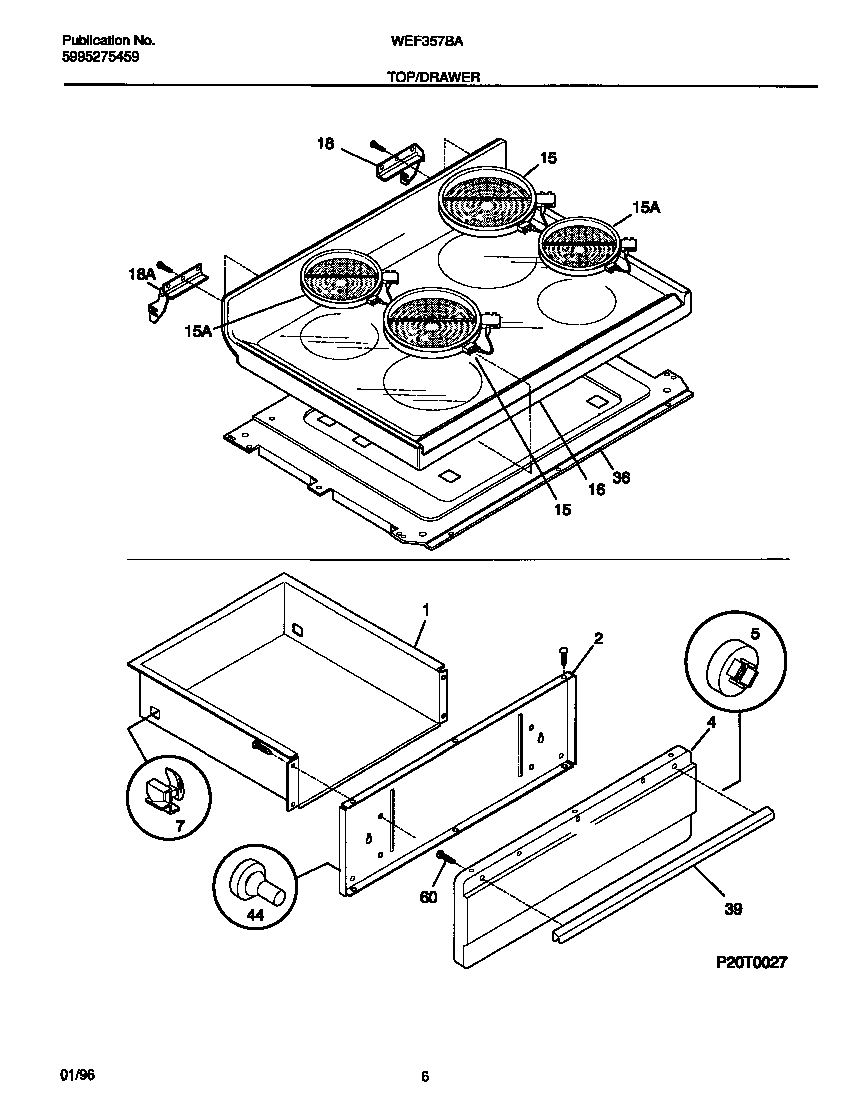

WEF357BAWC 04 – TOP/DRAWER

Products

Position	Product
*03132	RIVET-POP, WARING-PLATE
*03131	WCI 316001732
*03130	WCI 5309951550
*03127	WCI 5303281584
*03129	WCI 5303288574
*03128	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL-BROILER, WHITE
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	318198834 Frigidaire Oven Element
15	318198817 Frigidaire Oven Element
16	WCI 316035500
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
36A	WCI 316033610
36C	WCI 316041001
36B	WCI 316023301
39	WCI 316019506
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
