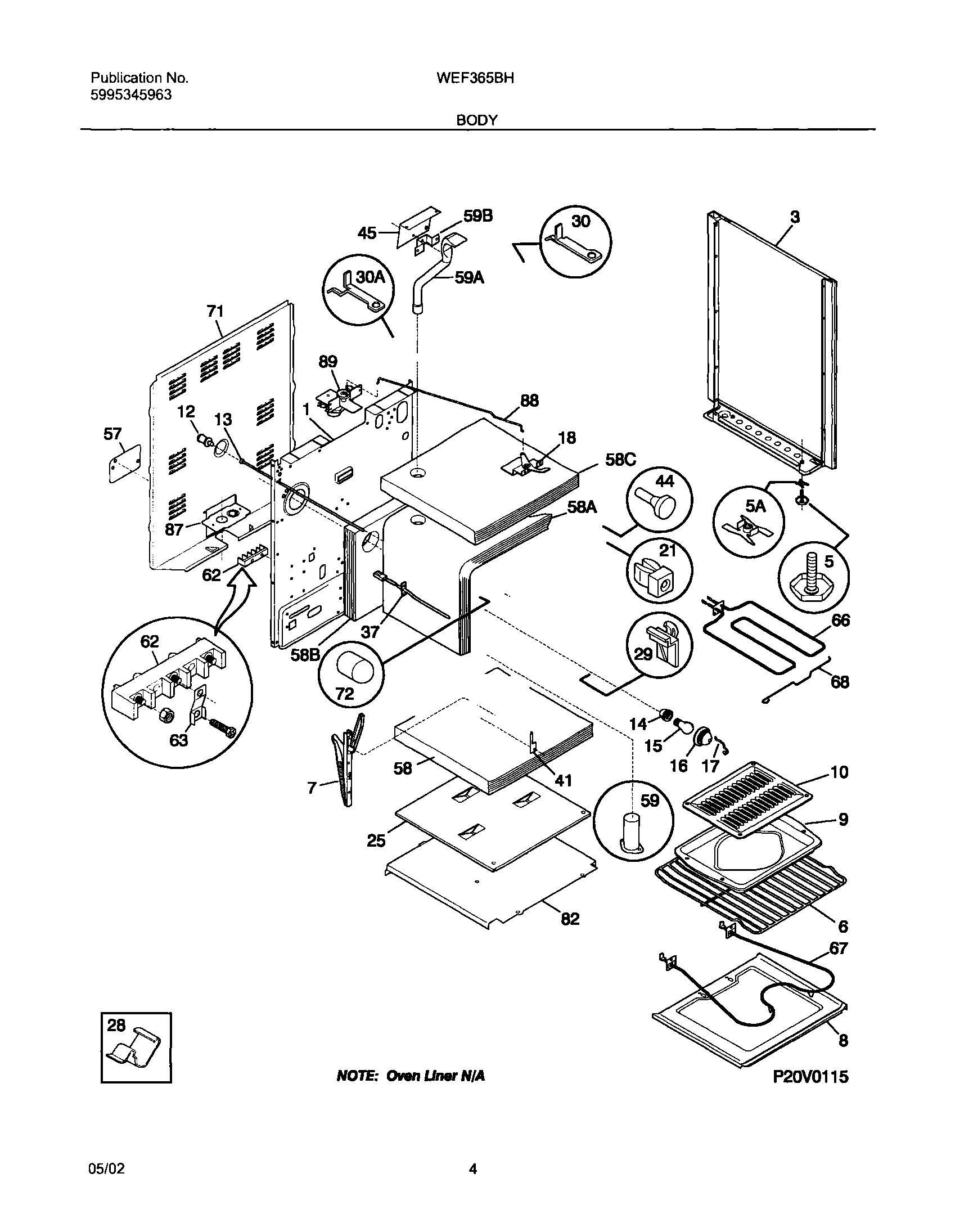

WEF365BHWB 05 – BODY

WEF365BHWB 05 – BODY

Written by

in

WEF365BHWB 05 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIWCI 316085600
NI316205500 Frigidaire Oven Nut
NIClip,wiring harness ,green ,main top
NIHARNESS-WIRING,MAIN
NI3203550 Frigidaire Oven Plug
NIScrew,cup pt ,8-18 x 0.375 ,chrome
1WCI 316080803
3WCI 316081034
3WCI 316081035
5WCI 316129200
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 5304403169
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066100
57WCI 316081100
58AINSULATION, OVEN WRAPPER
58BWCI 316054200
58316403803 Frigidaire Insulation
59WCI 316073602
59AWCI 316023600
59BBRACKET-MOUNTING,VENT TUBE
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015804
72COVER-LIGHT/SWITCH ROD
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
88WCI 316026400
89WCI 316028101
170316116000 Frigidaire Screw
170316112500 Frigidaire Oven Template
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
