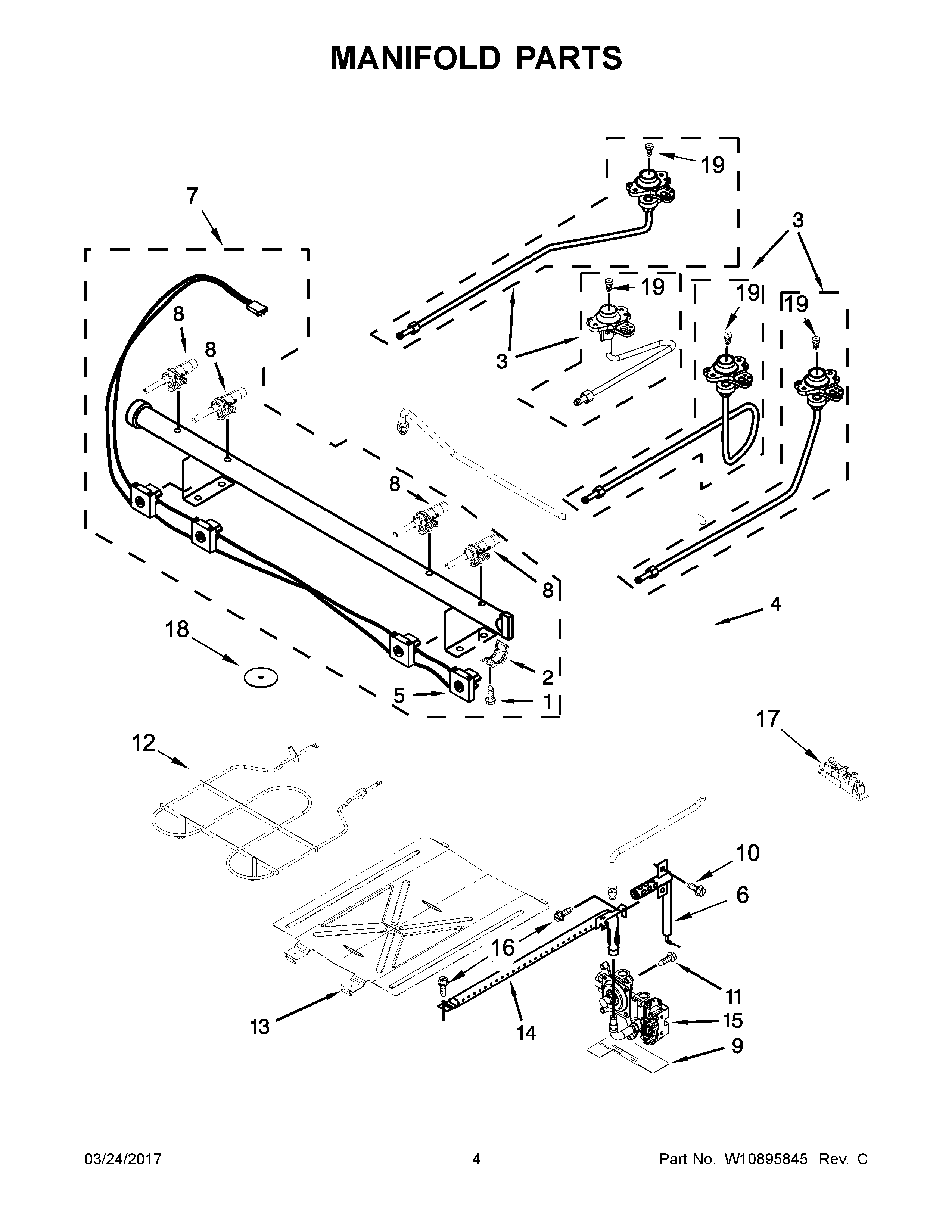

WEG515S0FB0 03 – MANIFOLD PARTS

Products

Position	Product
NI	ORIFICE
NI	WPW10182767 Whirlpool Wire Tie
NI	W11699925 Whirlpool Conversion Kit
NI	CABINET (NOT A SERVICEABLE PART)
1	W11666001 Whirlpool Screw
2	W10949105 Whirlpool Mounting Bracket
3B	W10827777 Whirlpool Orifice Holder
3C	W10827779 Whirlpool Orifice Holder
3A	W11035644 Whirlpool Orifice Holder
3	W10827780 Whirlpool Orifice Holder
4	W10804030 Whirlpool Gas Tubing
5	W10834787 Whirlpool Wire Harness
6	WP9758079 Whirlpool Oven Igniter
7	W11302156 Whirlpool Manifold Assembly
8A	W11690141 Whirlpool Burner Valve
8	W10901556 Whirlpool Burner Valve
8B	W10901554 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11684507 Whirlpool Screw
11	Screw
12	W10714060 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	W10898290 Whirlpool Gas Valve
16	WP3196557 Whirlpool Screw
17	WPW10110491 Whirlpool Spark Module
18	W10140571 Whirlpool Seal Switch
19B	W11677633 Whirlpool Spud Orifice
19	W10849717 Whirlpool Orifice Spud
19A	W10849714 Whirlpool Orifice Spud
