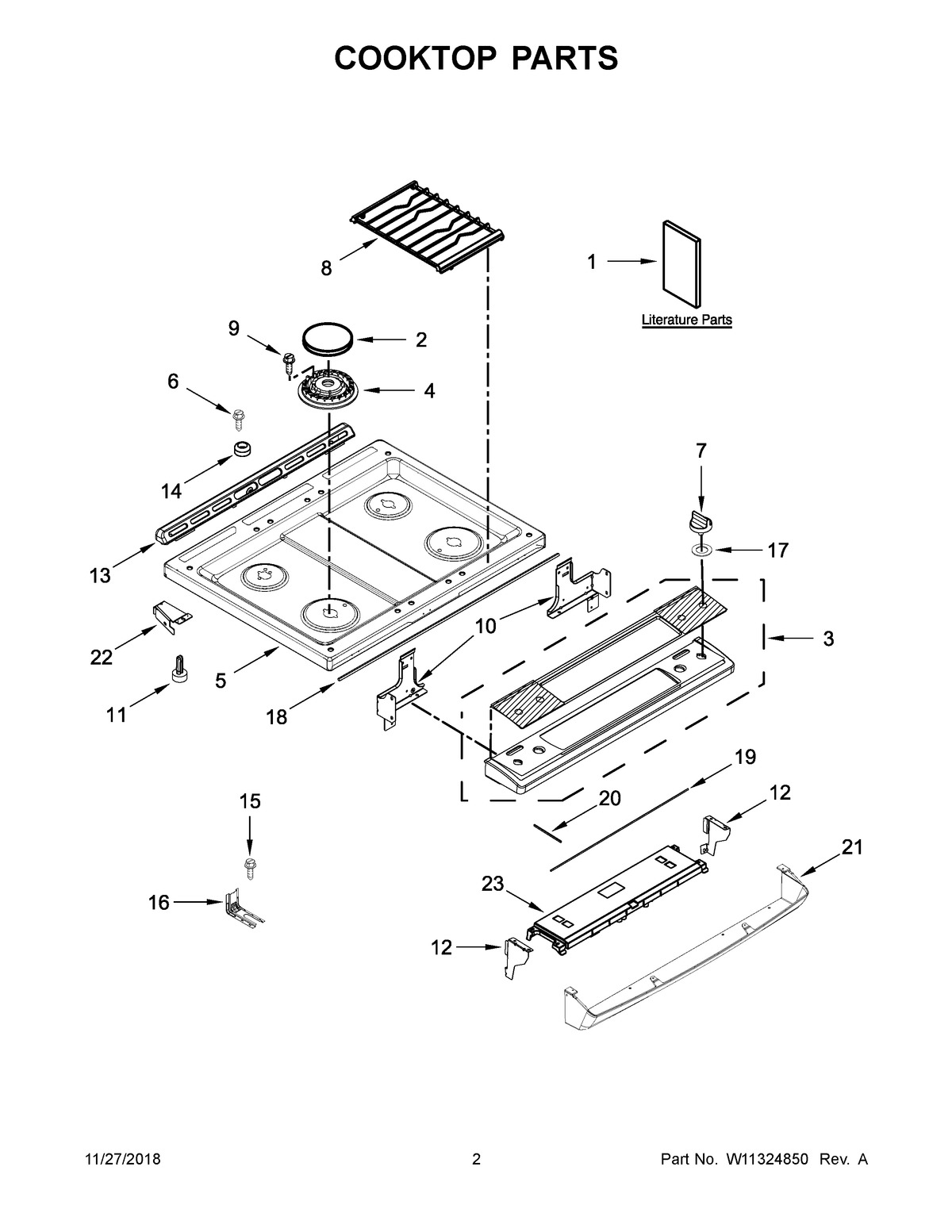

WEG515S0FB2 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, CONSOLE
NI	LINER (NOT A SERVICEABLE PART)
NI	CLIP, HARNESS
NI	CLIP, WIRE
NI	MAY 7111P017-60
NI	WIRE, GROUND
NI	HARNESS, MAIN
NI	HARNESS, BAKE/BROIL
1A	GUIDE, USE AND CARE
1	INSTRUCTIONS, INSTALLATION
1C	DIAGRAM, WIRING
1B	SHEET, TECH
2	KIT, BURNER CAP (SET OF 4) (BLACK)
3A	CONSOLE (WHITE)
3	CONSOLE (BLACK)
4	SPREADER, FLAME (LEFT FRONT & RIGHT FRONT)
4B	SPREADER, FLAME (RIGHT REAR)
4A	SPREADER, FLAME (LEFT REAR)
5	COOKTOP (BLACK)
5A	COOKTOP (WHITE)
6	SCREW
7	KNOB (BLACK)
7A	KNOB (WHITE)
8	KIT, GRATE (SET OF 2) (BLACK)
9	SCREW
10A	MAY W10814304
10B	MAY W10814305
10	MAY W10814303
11	GLIDE, MAIN TOP
12A	BRACKET, CONSOLE (RIGHT)
12	BRACKET, CONSOLE (LEFT)
13A	TRIM, VENT (WHITE)
13	TRIM, VENT (BLACK)
14	MAY W10854253
15	SCREW, ANTI-TIP KIT
16	BRACKET, ANTI-TIP
17	BUSHING (BLACK)
18	GASKET, CONSOLE/COOKTOP
19	GASKET, CONSOLE
20	GASKET, CONSOLE SHORT
21A	MAY W10816942
21	MAY W10816943
22	BRACE, CORNER (LEFT)
22A	BRACE, CORNER (RIGHT)
23	ELECTRONIC, CONTROL (LCX)
