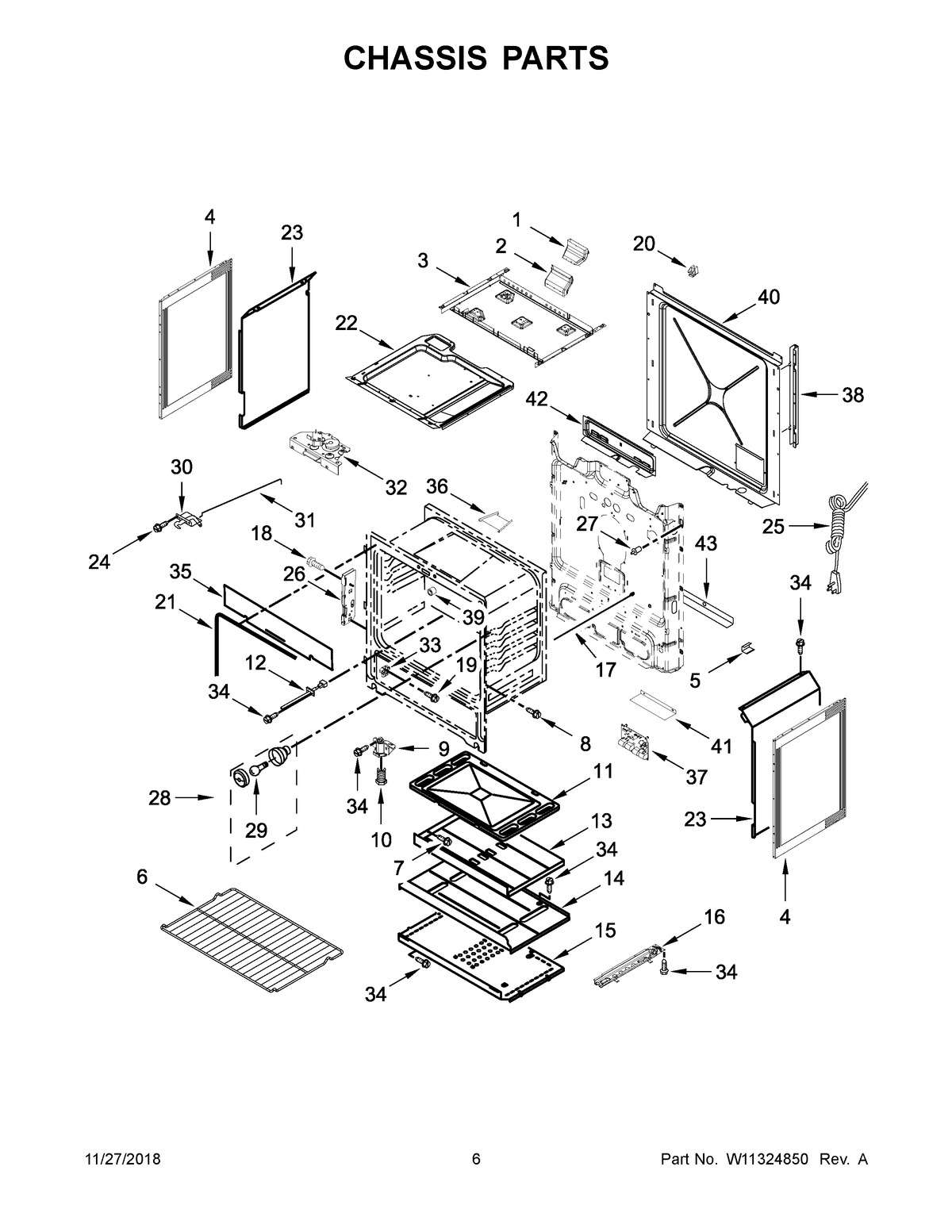

WEG515S0FB2 04 – CHASSIS PARTS

WEG515S0FB2 04 – CHASSIS PARTS

Written by

in

WEG515S0FB2 04 – CHASSIS PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	CLIP, WIRE
NI	INSULATION, WRAP
NI	INSULATION, BACK
1	ADAPTER, FLUE ASSEMBLY
2	ASSEMBLY, FLUE
3	BURNER, BOX GAS
4	PANEL, SIDE (BLACK)
4A	PANEL, SIDE (WHITE)
5	CLIP, PANEL
6	RACK, OVEN
7	SCREW
8	SCREW
9	ASSEMBLY, FRONT FOOT
10	FOOT, LEVELING
11	BOTTOM, OVEN
12	MAY W10586204
13	BAFFLE, BURNER OVEN
14	SHIELD, HEAT
15	SHIELD, LOWER
16A	ASSEMBLY, BASE RAIL (RIGHT)
16	ASSEMBLY, BASE RAIL (LEFT)
17	ROD, DOOR SWITCH
18	MAY W10031780
19	SCREW
20	MAY W10866583
21	SEAL, DOOR
22	MAY W10814301
23	MAY 9761449
23A	MAY 9761448
24	SCREW
25	CORD, POWER
26	RECEIVER, HINGE
27	SWITCH, DOOR
28	ASSEMBLY, LIGHT
29	RANGE ONLY 40W 120V APPL BULB
30	ASSEMBLY, DOOR LATCH (FRONT)
31	ROD, PUSH LATCH
32	ASSEMBLY, DOOR LATCH (REAR)
33	GLIDE, DRAWER FRONT
34	SCREW
35	CHASSIS, UPPER INSULATION
36	BAFFLE, UPPER CHASSIS
37	MODULE, SPARK
38	MAY W10162241
39	SPACER, DOOR
40	MAY W10289172
41	GUARD, SPLASH
42	WIRE, COVER
43	BRACE, MAIN BACK
