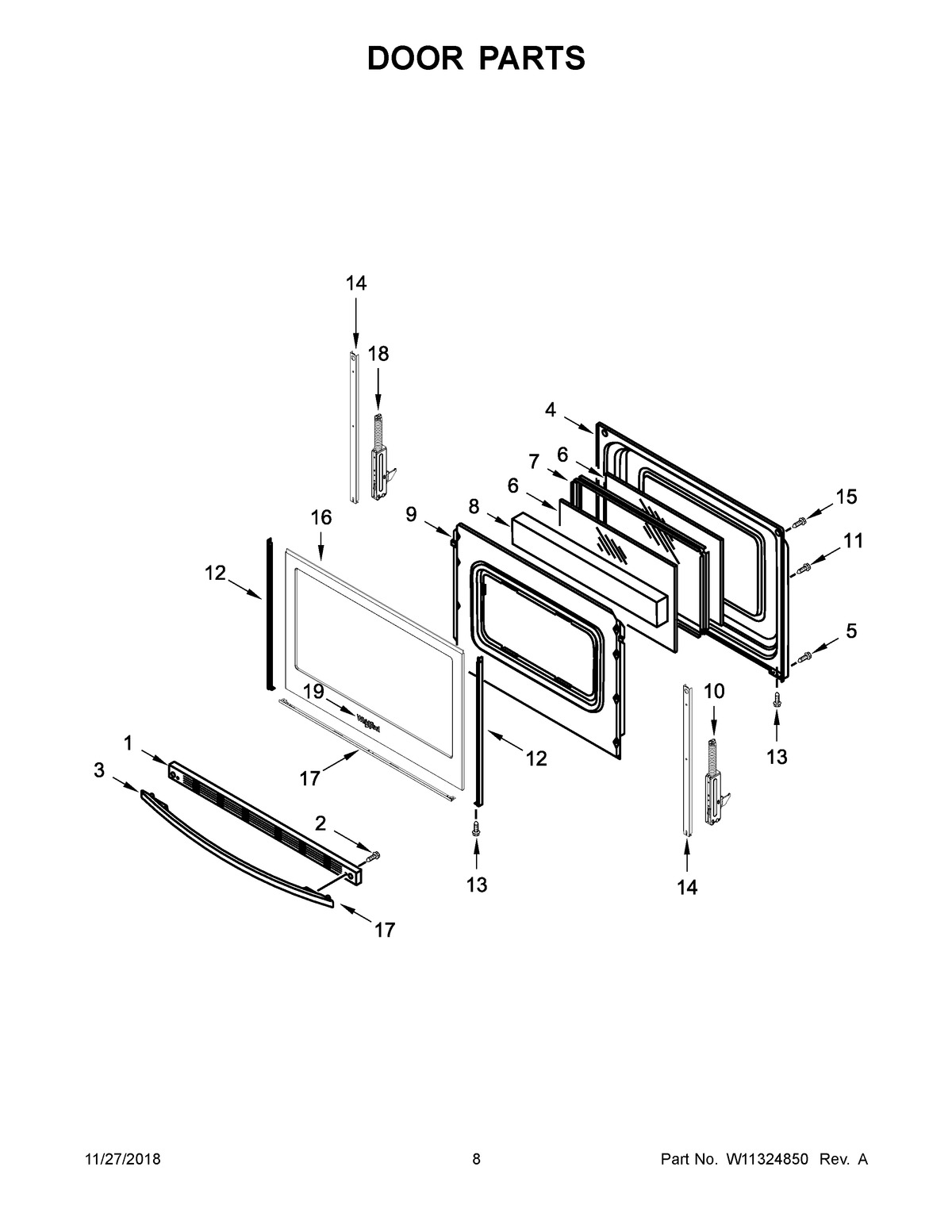

WEG515S0FB2 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1ATRIM, TOP (WHITE)
2SCREW
3AHANDLE, DOOR (WHITE)
3HANDLE, DOOR (BLACK)
4LINER, DOOR
5MAY W10031780
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, DOOR (ACTIVE)
11SCREW
12CTRIM, SIDE (WHITE (RIGHT))
12ATRIM, SIDE (BLACK (RIGHT))
12TRIM, SIDE (BLACK (LEFT))
12BTRIM, SIDE (WHITE (LEFT))
13SCREW
14STRAP, DOOR
15SCREW
16GLASS, OUTER DOOR (BLACK)
16AGLASS, OUTER DOOR (WHITE)
17ATRIM, LOWER (WHITE)
17TRIM, LOWER (BLACK)
18MAY W10440013
19ABADGE (WHITE)
19BADGE (GREY)
