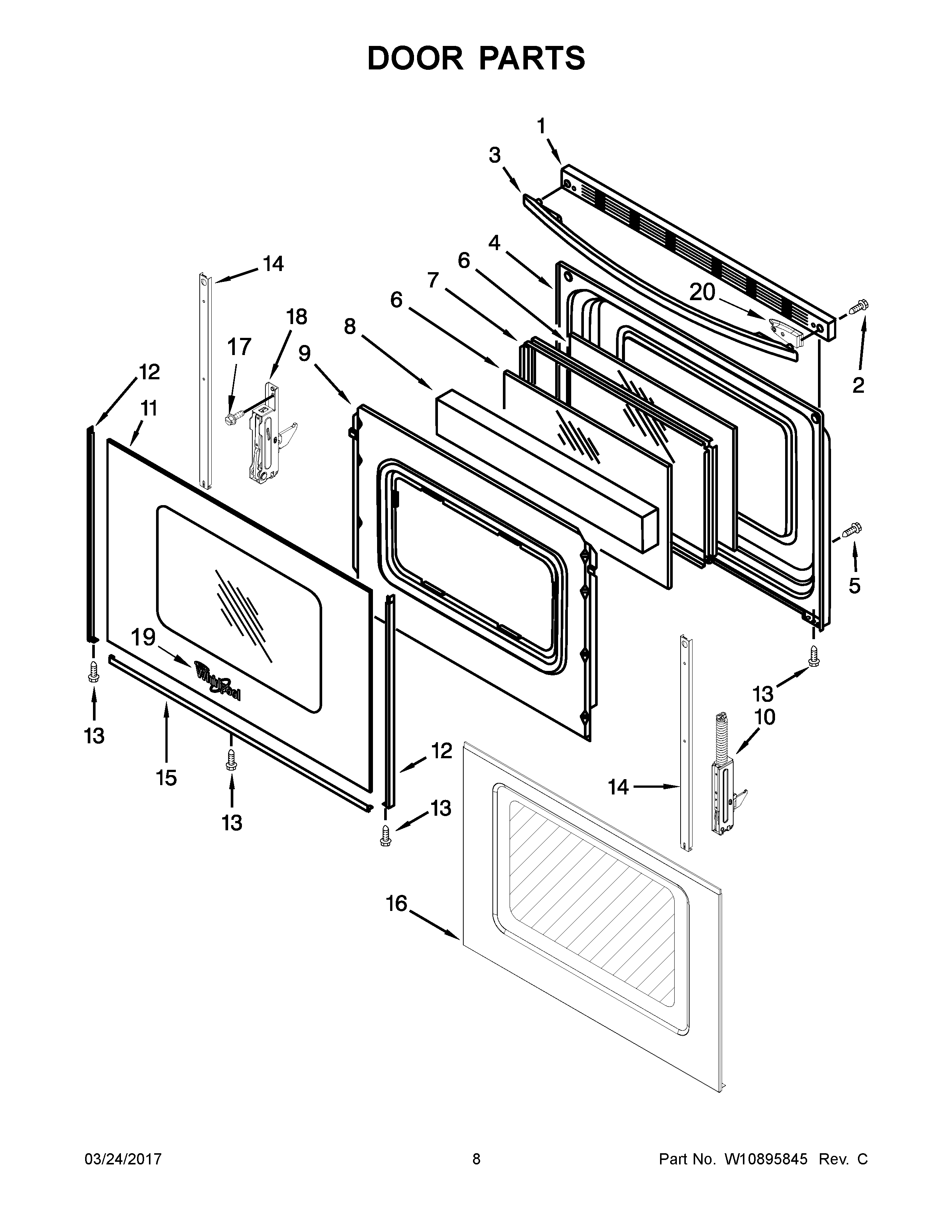

WEG515S0FS0 05 – DOOR PARTS

Products

Position	Product
1A	W10817433 Whirlpool Vent Trim
1	TRIM-VENT
2	WPW10465148 Whirlpool Screw
3B	WPW10618239 Whirlpool Door Handle
3	W10300490 Whirlpool Door Handle
3A	W10300489 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WPW10388635 Whirlpool Door Hinge
11A	WPW10409945 Whirlpool Glass Door
11	W11702167 Whirlpool Door Glass
12B	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12C	WP8523166 Whirlpool Door Trim
12A	WP8523172 Whirlpool Left Door Trim
13	W10491985 Whirlpool Screw
14	W11502236 Whirlpool Door Trim
15	WP8523177 Whirlpool Door Trim Assembly
15A	WP8523175 Whirlpool Door Trim Assembly
16	W11219379 Whirlpool Door Glass Assembly
17	WP355214 Whirlpool Screw
18	WPW10440013 Whirlpool Door Hinge
19	W11178521 Whirlpool Dishwasher Nameplate
20	WPW10410341 Whirlpool Spacer
