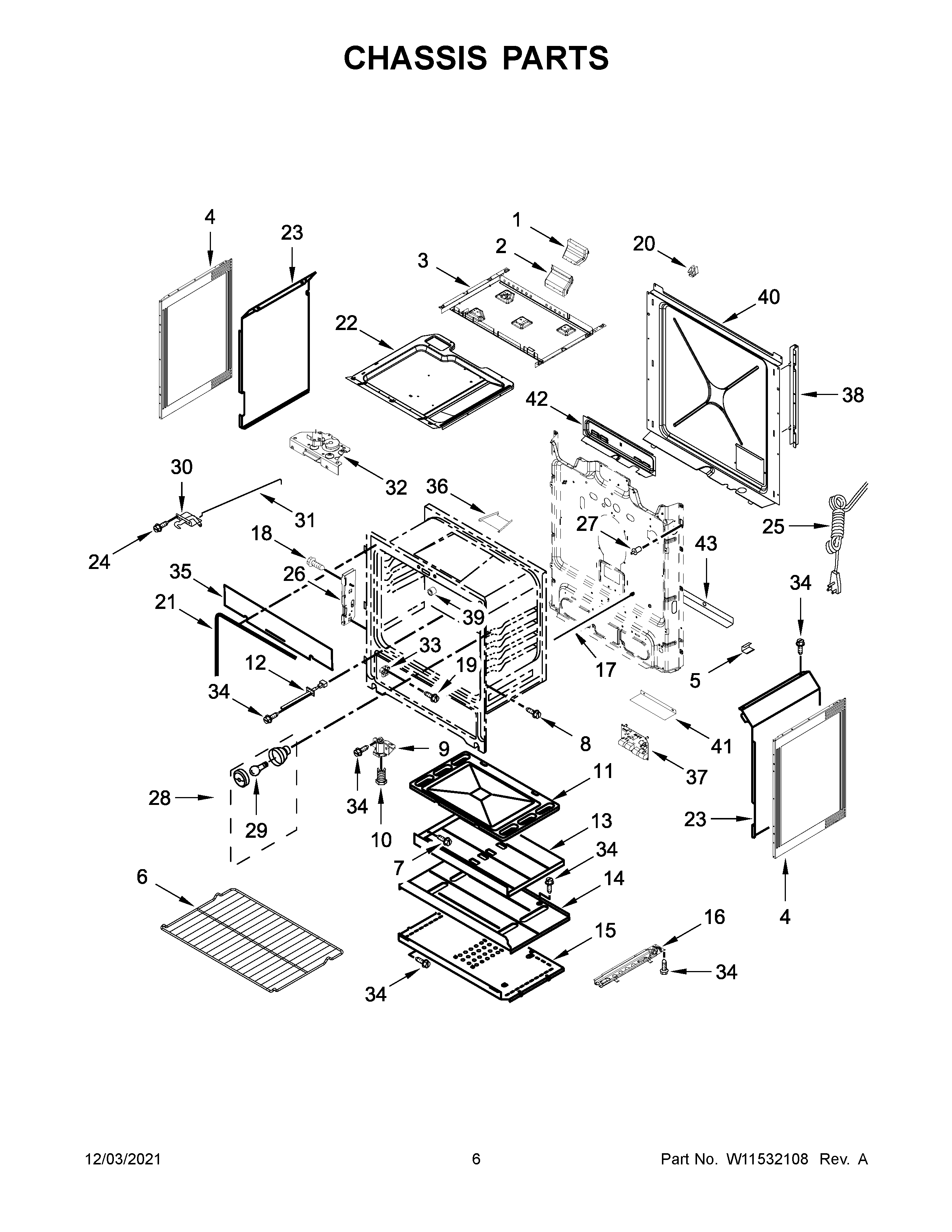

WEG515S0FS3 04 – CHASSIS PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NI3196896 Whirlpool Clip
NIINSULATION, BACK
NIINSULATION, WRAP
1W10814257 Whirlpool Oven Flue
2W10614920 Whirlpool Oven Flue
3W10558276 Whirlpool Burner Box
4W11730303 Whirlpool Side Panel
5W10137382 Whirlpool Clip
6RACK-OVEN
7WP3196557 Whirlpool Screw
8WPW10067840 Whirlpool Screw
9WPW10341186 Whirlpool Refrigerator Front Levelling Leg
10WPW10058460 Whirlpool Appliance Levelling Leg
11WP3195097 Whirlpool Oven Bottom
12SENSOR-RANGE
138053967 Whirlpool Oven Heat Baffle
148053969 Whirlpool Heat Shield
158053968 Whirlpool Oven Heat Shield
16AWPW10306546 Whirlpool Base Rail
179757239 Whirlpool Oven Door Rod
18W10777162 Whirlpool Screw
19W10379120 Whirlpool Screw
20CLIP-PANEL, RATCHETING
21W11542153 Whirlpool Door Gasket
22W10814301 Whirlpool Burner Box
23W11379353 Whirlpool Retainer
23AW11379943 Whirlpool Retainer
24W11169708 Whirlpool Screw
25W11582239 Whirlpool Range Power Cord
26W10647259 Whirlpool Hinge Receiver
27WP9757262 Whirlpool Light Switch
28W11594170 Whirlpool Light Socket
29BULB-LIGHT
30WP9761013 Whirlpool Door Latch
31W10078370 Whirlpool Latch Rod
32WPW10107820 Whirlpool Door Latch
33W10807823 Whirlpool Drawer Glide
34SCREW
35W11688573 Whirlpool Insulation
36BAFFLE, UPPER CHASSIS
37W10898291 Whirlpool Spark Module
38W10162241 Whirlpool Channel
39W10877054 Whirlpool Spacer Assembly
40W11379354 Whirlpool Rear Cover
41W10655451 Whirlpool Spill Guard
42WIRE, COVER
43W10435470 Whirlpool Brace
