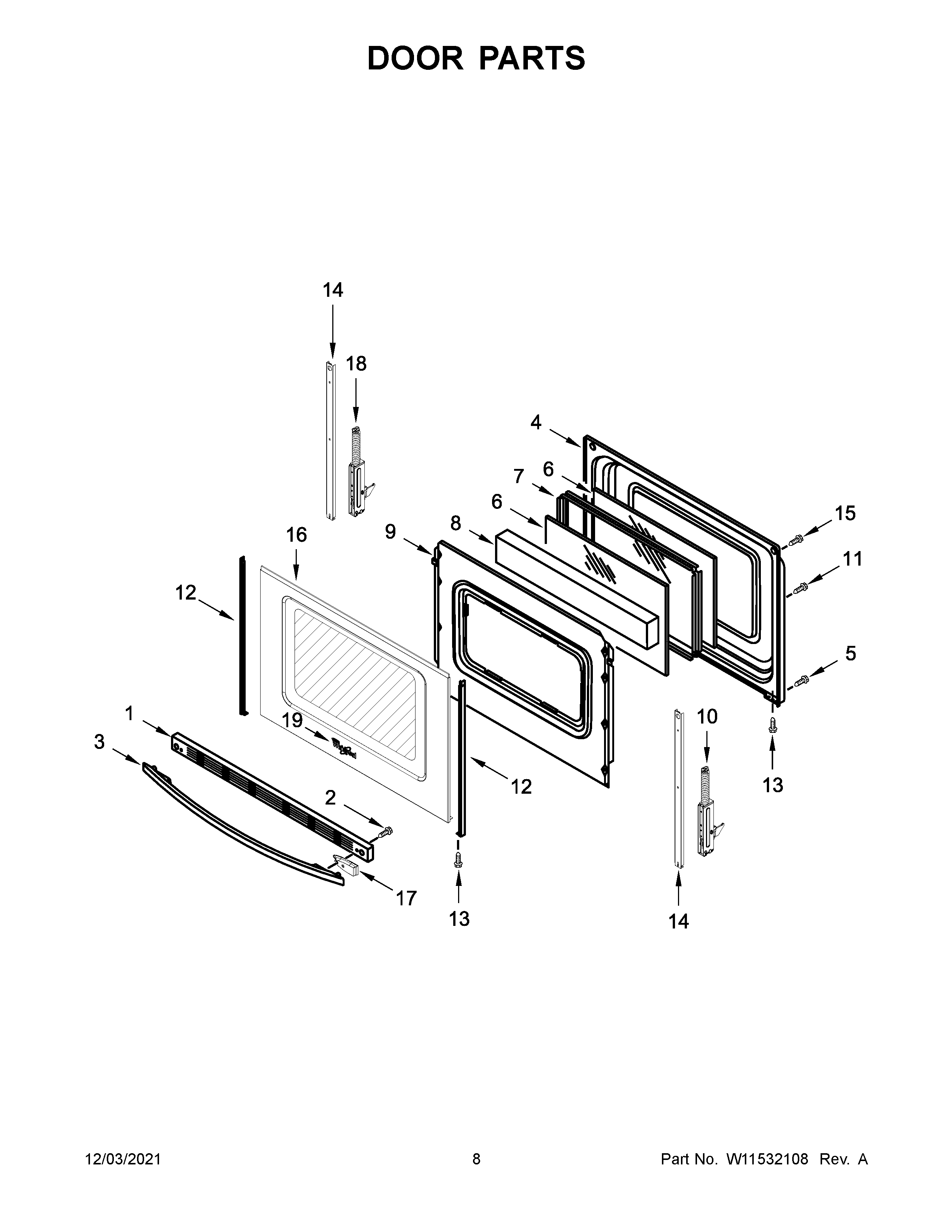

WEG515S0FS3 05 – DOOR PARTS

WEG515S0FS3 05 – DOOR PARTS

Written by

in

WEG515S0FS3 05 – DOOR PARTS

Products

PositionProduct
1TRIM-VENT
2W10896982 Whirlpool Compactor Screw
3WPW10618239 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5W10777162 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10388635 Whirlpool Door Hinge
11WPW10031790 Whirlpool Screw
12W10761018 Whirlpool Dishwasher Left Door Trim
12AW10761014 Whirlpool Right Door Trim
13WP355214 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15WPW10200660 Whirlpool Range Oven Door Handle Screw
16W11219379 Whirlpool Door Glass Assembly
17WPW10410341 Whirlpool Spacer
18WPW10440013 Whirlpool Door Hinge
19W11178521 Whirlpool Dishwasher Nameplate
