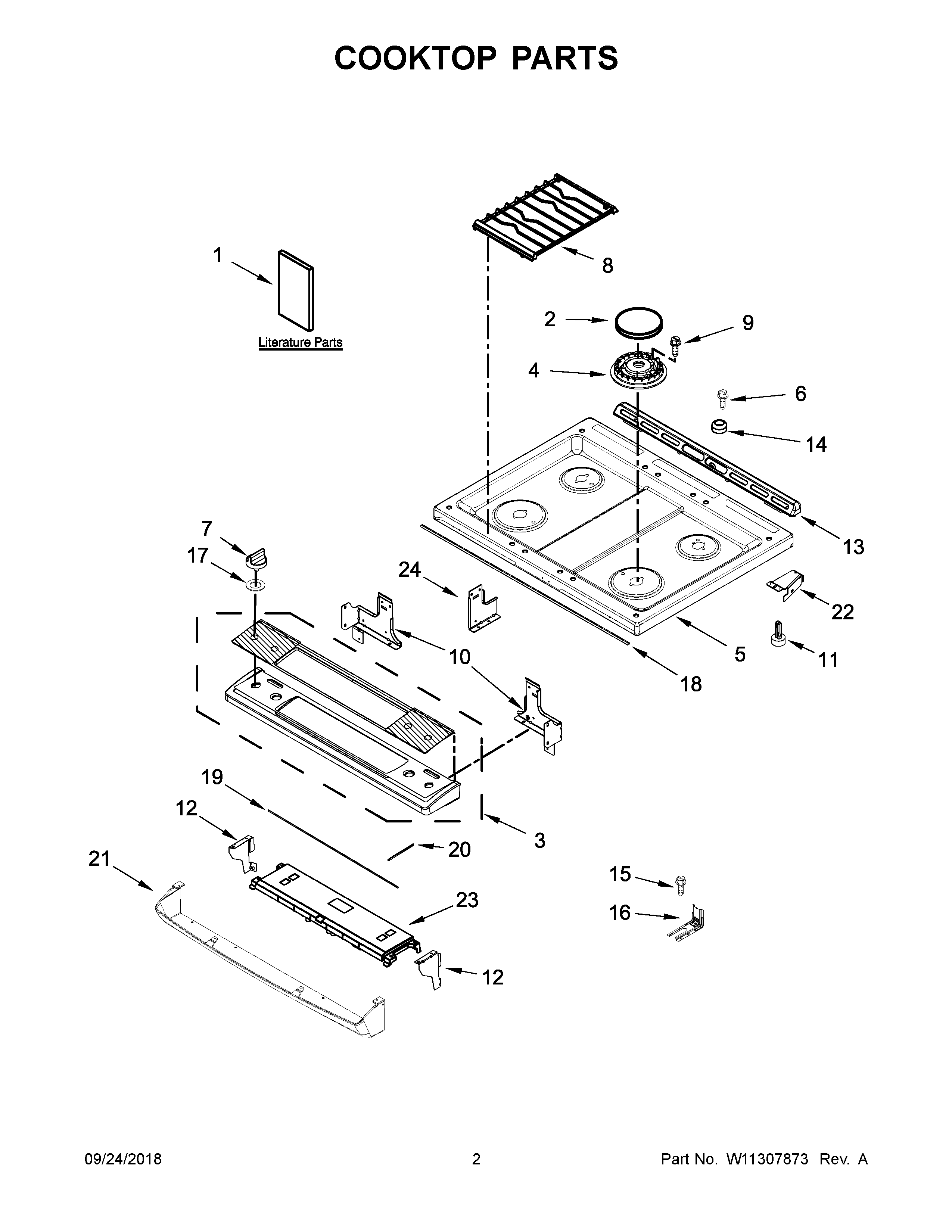

WEG515S0FV1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10580229 Whirlpool Grounding Wire
NI	W10800475 Whirlpool Wire Harness
NI	W10800478 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W10817974 Whirlpool Wire Harness
1C	DIAGRAM, WIRING
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE AND CARE
1B	SHEET, TECH
2	W11173535 Whirlpool Burner Cap
3	W10728512 Whirlpool Control Panel
4B	W11708326 Whirlpool Burner Head
4A	W11699919 Whirlpool Burner Head
4	BURNR-HEAD
5	W10897891 Whirlpool Cooktop
6	WP3196557 Whirlpool Screw
7	W11544663 Whirlpool Control Knob
8	W11384202 Whirlpool Grate Kit
9	W11244557 Whirlpool Screw
10A	W10814304 Whirlpool Support Bracket
10	SUPPORT, COOKTOP (LEFT)
11	GLIDE, MAIN TOP
12	W10547960 Whirlpool Endcap Panel
12A	W10547961 Whirlpool Endcap Panel
13	W11256338 Whirlpool Vent Trim
14	W11690600 Whirlpool Bumper
15	SCREW, ANTI-TIP KIT
16	W11502257 Whirlpool Anchor Tip
17	W11131701 Whirlpool Bushing
18	W10802441 Whirlpool Gasket
19	W10802457 Whirlpool Gasket
20	W11744482 Whirlpool Gasket Assembly
21	W10894124 Whirlpool Control Panel
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23	W11310915-includeCORE Whirlpool W11310915 Washer Electronic Control Board + Core
24	W10814305 Whirlpool Bracket Support
