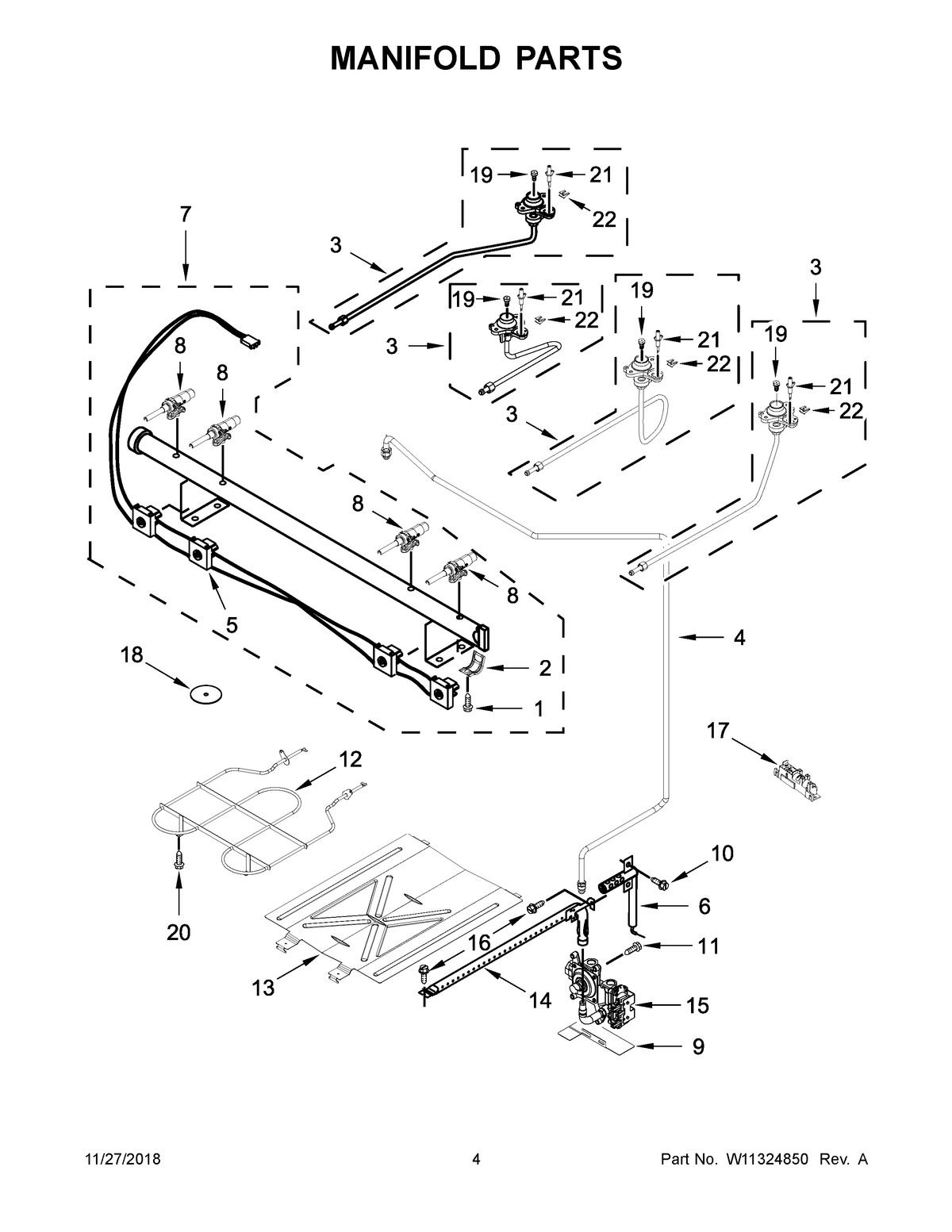

WEG515S0FW2 03 – MANIFOLD PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	ORIFICE, LP BAKE
NI	SPUDS, LP GAS
NI	TIE, MANIFOLD WIRE
1	SCREW
2	BRACKET, SADDLE VALVE
3A	ASSEMBLY, ORIFICE HOLDER (15K) (LEFT FRONT)
3B	ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT)
3C	ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR)
3	ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR)
4	TUBING (MANIFOLD TO REGULATOR)
5	HARNESS, SWITCH
6	ELECTRODE, BAKE
7	ASSEMBLY, MANIFOLD
8B	VALVE, GAS (RIGHT REAR)
8A	VALVE, GAS (LEFT FRONT & RIGHT FRONT)
8	VALVE, GAS (LEFT REAR)
9	BRACKET, AEGIS
10	SCREW
11	MAY 3400080
12	ELEMENT, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	REGULATOR
16	SCREW
17	MODULE, SPARK
18	SEAL, SWITCH SHAFT
19B	ORIFICE (LEFT REAR)
19A	ORIFICE (RIGHT REAR)
19	ORIFICE (LEFT FRONT, RIGHT FRONT)
20	MAY W10362924
21C	ELECTRODE, BURNER (RIGHT REAR)
21B	ELECTRODE, BURNER (RIGHT FRONT)
21A	ELECTRODE, BURNER (LEFT REAR)
21	ELECTRODE, BURNER (LEFT FRONT)
22	SPRING, ELECTRODE
