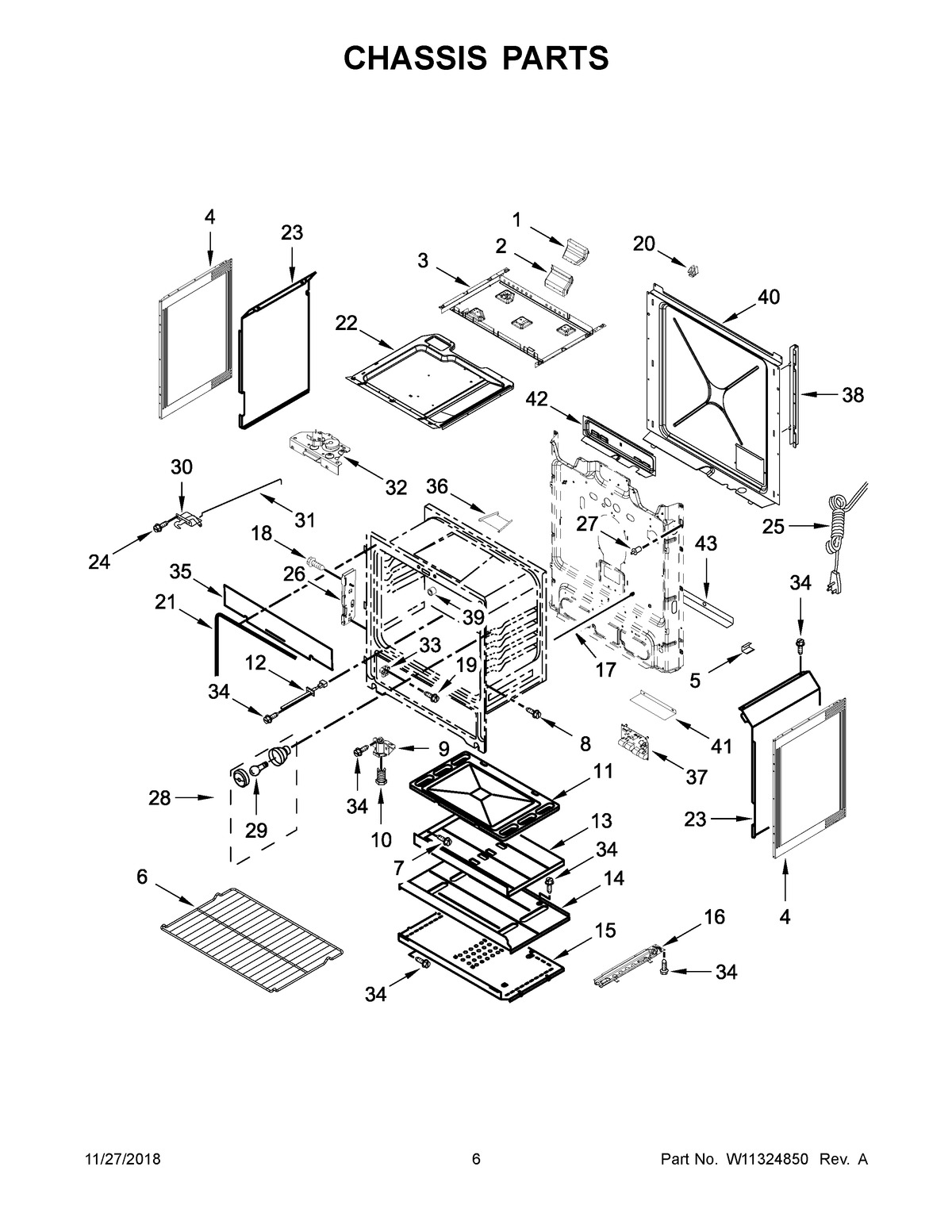

WEG515S0FW2 04 – CHASSIS PARTSadmin2025-04-26T08:49:03+00:00WEG515S0FW2 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | CLIP, WIRE |
| NI | INSULATION, WRAP |
| NI | INSULATION, BACK |
| 1 | ADAPTER, FLUE ASSEMBLY |
| 2 | ASSEMBLY, FLUE |
| 3 | BURNER, BOX GAS |
| 4 | PANEL, SIDE (BLACK) |
| 4A | PANEL, SIDE (WHITE) |
| 5 | CLIP, PANEL |
| 6 | RACK, OVEN |
| 7 | SCREW |
| 8 | SCREW |
| 9 | ASSEMBLY, FRONT FOOT |
| 10 | FOOT, LEVELING |
| 11 | BOTTOM, OVEN |
| 12 | MAY W10586204 |
| 13 | BAFFLE, BURNER OVEN |
| 14 | SHIELD, HEAT |
| 15 | SHIELD, LOWER |
| 16A | ASSEMBLY, BASE RAIL (RIGHT) |
| 16 | ASSEMBLY, BASE RAIL (LEFT) |
| 17 | ROD, DOOR SWITCH |
| 18 | MAY W10031780 |
| 19 | SCREW |
| 20 | MAY W10866583 |
| 21 | SEAL, DOOR |
| 22 | MAY W10814301 |
| 23 | MAY 9761449 |
| 23A | MAY 9761448 |
| 24 | SCREW |
| 25 | CORD, POWER |
| 26 | RECEIVER, HINGE |
| 27 | SWITCH, DOOR |
| 28 | ASSEMBLY, LIGHT |
| 29 | RANGE ONLY 40W 120V APPL BULB |
| 30 | ASSEMBLY, DOOR LATCH (FRONT) |
| 31 | ROD, PUSH LATCH |
| 32 | ASSEMBLY, DOOR LATCH (REAR) |
| 33 | GLIDE, DRAWER FRONT |
| 34 | SCREW |
| 35 | CHASSIS, UPPER INSULATION |
| 36 | BAFFLE, UPPER CHASSIS |
| 37 | MODULE, SPARK |
| 38 | MAY W10162241 |
| 39 | SPACER, DOOR |
| 40 | MAY W10289172 |
| 41 | GUARD, SPLASH |
| 42 | WIRE, COVER |
| 43 | BRACE, MAIN BACK |
