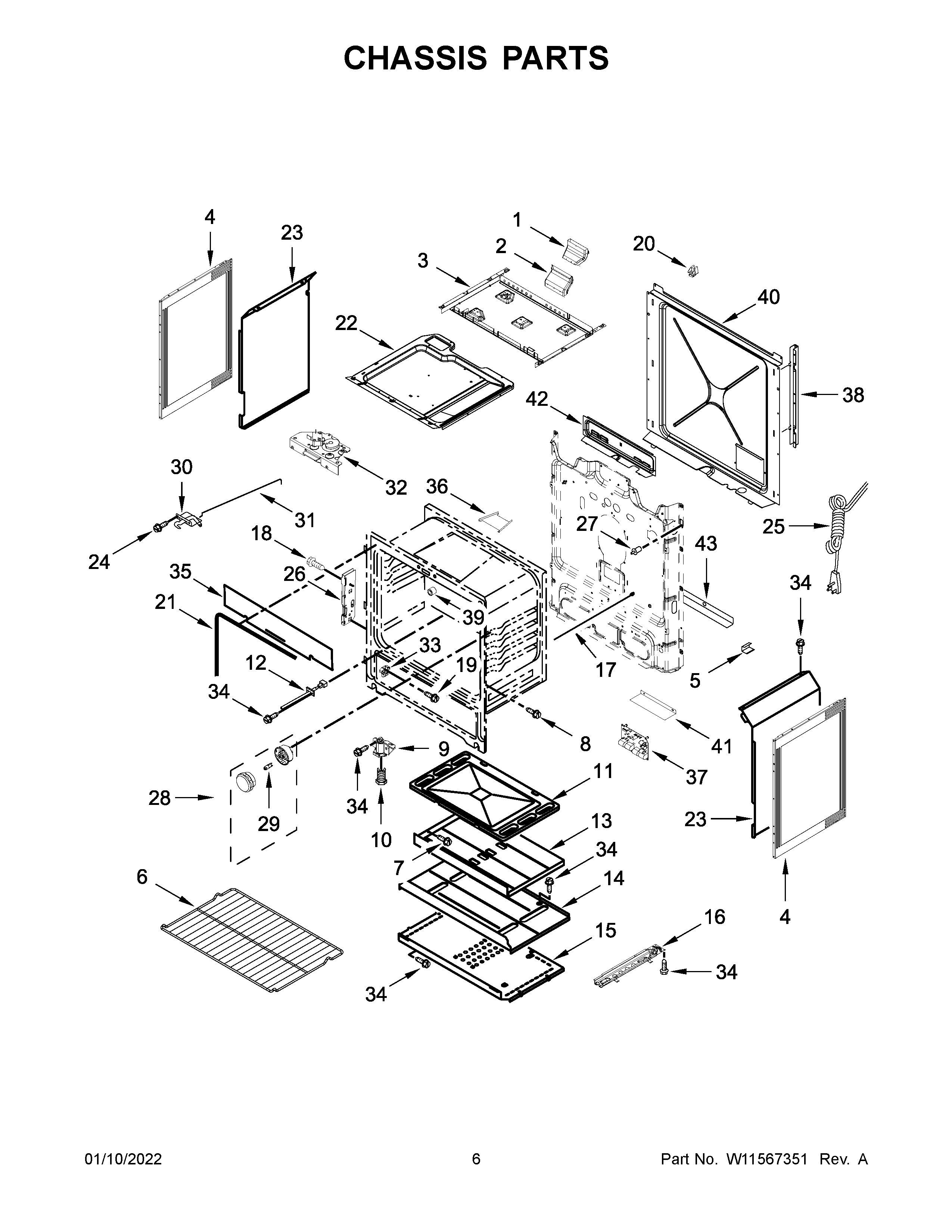

WEG515S0LB1 04 – CHASSIS PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	3196896 Whirlpool Clip
NI	INSULATION, BACK
NI	INSULATION, WRAP
1	W10814257 Whirlpool Oven Flue
2	W10614920 Whirlpool Oven Flue
3	W10558276 Whirlpool Burner Box
4	W11730303 Whirlpool Side Panel
4A	WPW10575396 Whirlpool Side Panel
5	W10137382 Whirlpool Clip
6	RACK-OVEN
7	WP3196557 Whirlpool Screw
8	WPW10067840 Whirlpool Screw
9	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP3195097 Whirlpool Oven Bottom
12	SENSOR-RANGE
13	8053967 Whirlpool Oven Heat Baffle
14	8053969 Whirlpool Heat Shield
15	8053968 Whirlpool Oven Heat Shield
16A	WPW10306546 Whirlpool Base Rail
17	9757239 Whirlpool Oven Door Rod
18	W10777162 Whirlpool Screw
19	W10379120 Whirlpool Screw
20	CLIP-PANEL, RATCHETING
21	W11542153 Whirlpool Door Gasket
22	W10814301 Whirlpool Burner Box
23	W11379353 Whirlpool Retainer
23A	W11379943 Whirlpool Retainer
24	W11169708 Whirlpool Screw
25	W11582239 Whirlpool Range Power Cord
26	W10647259 Whirlpool Hinge Receiver
27	WP9757262 Whirlpool Light Switch
28	W11594170 Whirlpool Light Socket
29	BULB-LIGHT
30	WP9761013 Whirlpool Door Latch
31	W10078370 Whirlpool Latch Rod
32	WPW10107820 Whirlpool Door Latch
33	W10807823 Whirlpool Drawer Glide
34	SCREW
35	W11688573 Whirlpool Insulation
36	BAFFLE, UPPER CHASSIS
37	W10898291 Whirlpool Spark Module
38	W10162241 Whirlpool Channel
39	W10877054 Whirlpool Spacer Assembly
40	W11379354 Whirlpool Rear Cover
41	W10655451 Whirlpool Spill Guard
42	WIRE, COVER
43	W10435470 Whirlpool Brace
