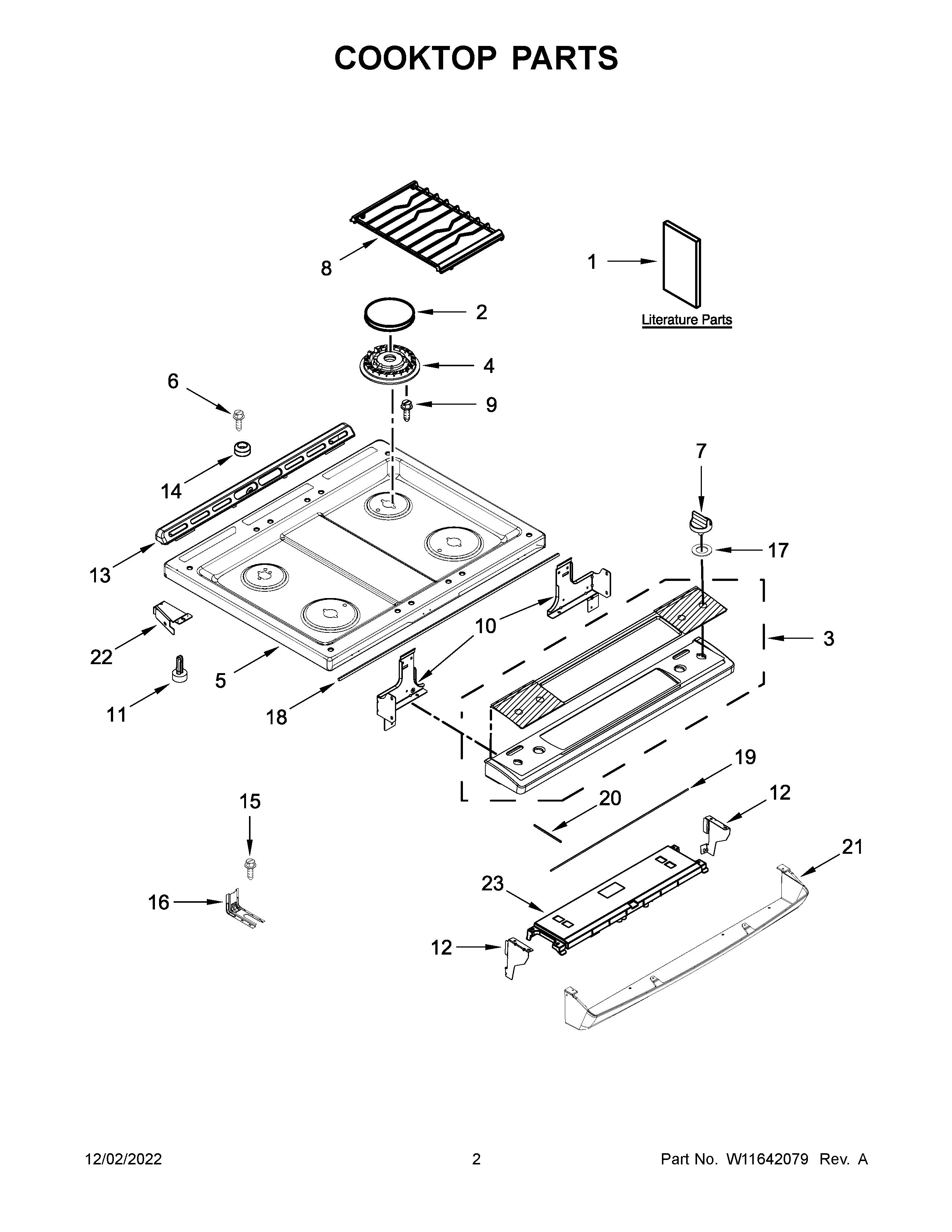

WEG515S0LS3 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, CONSOLE
NI	W11458865 Whirlpool Wire Harness
NI	W11450462 Whirlpool Wire Harness
NI	W10580229 Whirlpool Grounding Wire
NI	CLAMP, WIRE
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1D	QUICK START GUIDE
1B	SHEET, TECH
1C	DIAGRAM, WIRING
1	INSTRUCTIONS, INSTALLATION
1A	OWNERS MANUAL
2	W11173535 Whirlpool Burner Cap
3	W11542194 Whirlpool Control Panel
4	BURNR-HEAD
4A	W11699919 Whirlpool Burner Head
4B	W11708326 Whirlpool Burner Head
5	W10897891 Whirlpool Cooktop
6	WP3196557 Whirlpool Screw
7	W11687171 Whirlpool Knob
8	W11384202 Whirlpool Grate Kit
9	W11244557 Whirlpool Screw
10A	W10814304 Whirlpool Support Bracket
10	SUPPORT, COOKTOP (LEFT)
10B	W10814305 Whirlpool Bracket Support
11	GLIDE, MAIN TOP
12A	W10547961 Whirlpool Endcap Panel
12	W10547960 Whirlpool Endcap Panel
13	W11256338 Whirlpool Vent Trim
14	W11690600 Whirlpool Bumper
15	SCREW, ANTI-TIP KIT
16	W11502257 Whirlpool Anchor Tip
17	W11131701 Whirlpool Bushing
18	W10802441 Whirlpool Gasket
19	W10802457 Whirlpool Gasket
20	W11744482 Whirlpool Gasket Assembly
21	W10894124 Whirlpool Control Panel
22A	W10162252 Whirlpool Bracket Mounting
22	W10162253 Whirlpool Mounting Bracket
23	W11620561-includeCORE Whirlpool W11620561 Refrigerator Electronic Control Board + Core
