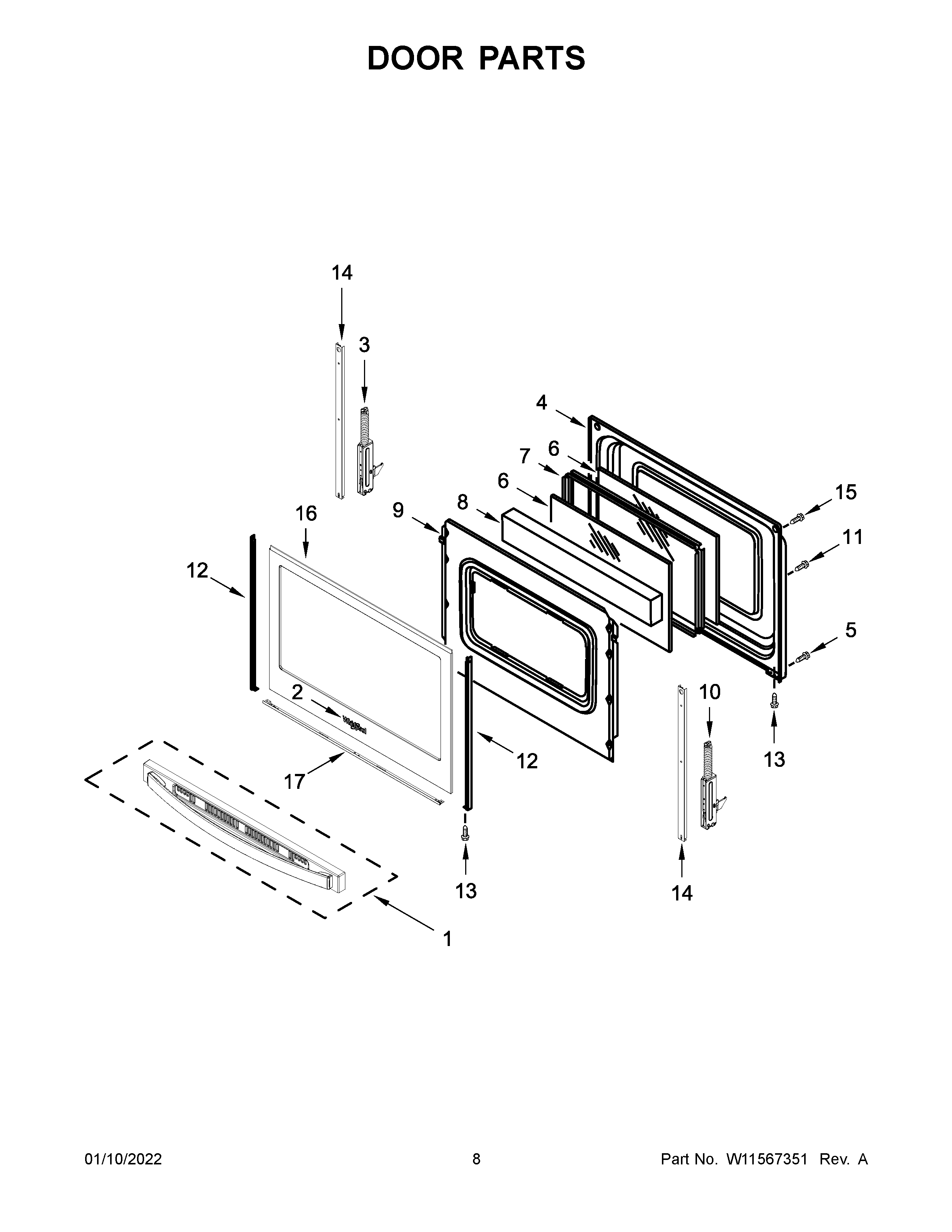

WEG515S0LW1 05 – DOOR PARTS

Products

Position	Product
1A	W11590861 Whirlpool Door Handle
1	W11553213 Whirlpool Door Handle
2	W11178521 Whirlpool Dishwasher Nameplate
3	WPW10440013 Whirlpool Door Hinge
4	WP9761344 Whirlpool Door Liner
5	W10777162 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WPW10388635 Whirlpool Door Hinge
11	WPW10031790 Whirlpool Screw
12	W10761018 Whirlpool Dishwasher Left Door Trim
12A	W10761014 Whirlpool Right Door Trim
12C	WP8523166 Whirlpool Door Trim
12B	WP8523172 Whirlpool Left Door Trim
13	WP355214 Whirlpool Screw
14	W11502236 Whirlpool Door Trim
15	WPW10200660 Whirlpool Range Oven Door Handle Screw
16	W11702167 Whirlpool Door Glass
16A	WPW10409945 Whirlpool Glass Door
17A	WP8523175 Whirlpool Door Trim Assembly
17	WP8523177 Whirlpool Door Trim Assembly
