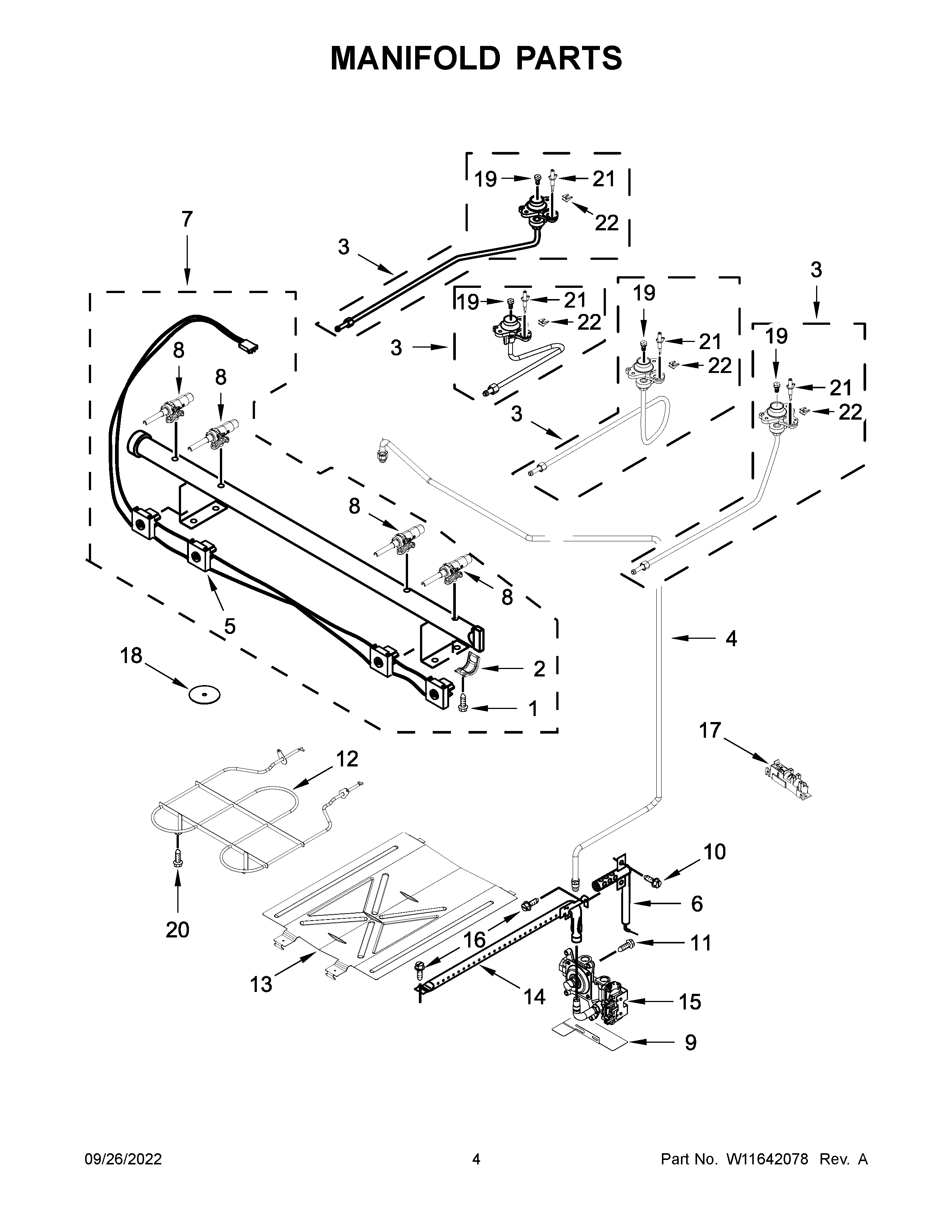

WEG515S0LZ3 03 – MANIFOLD PARTS

Products

Position	Product
NI	W11699925 Whirlpool Conversion Kit
NI	ORIFICE
NI	WPW10182767 Whirlpool Wire Tie
NI	CABINET (NOT A SERVICEABLE PART)
1	W11666001 Whirlpool Screw
2	W10949105 Whirlpool Mounting Bracket
3A	W11035644 Whirlpool Orifice Holder
3	W10827780 Whirlpool Orifice Holder
3C	W10827779 Whirlpool Orifice Holder
3B	W10827777 Whirlpool Orifice Holder
4	W10804030 Whirlpool Gas Tubing
5	W11537738 Whirlpool Wire Harness
6	W11524031 Whirlpool Oven Igniter
7	ASSEMBLY, MANIFOLD
8	VALVE, GAS (LEFT REAR)
8A	W11511834 Whirlpool Burner Valve
8B	W11511833 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11684507 Whirlpool Screw
11	Screw
12	W10714060 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	W10898290 Whirlpool Gas Valve
16	WP3196557 Whirlpool Screw
17	WPW10110491 Whirlpool Spark Module
18	W11507167 Whirlpool Switch Seal
19A	W10849714 Whirlpool Orifice Spud
19	W10849717 Whirlpool Orifice Spud
19B	W11677633 Whirlpool Spud Orifice
20	SCREW
21C	W11661897 Whirlpool Range Surface Igniter
21B	W11643126 Whirlpool Surface Igniter
21A	W11666003 Whirlpool Range Surface Igniter
21	W11661929 Whirlpool Surface Igniter
22	W11684564 Whirlpool Clip Assembly
